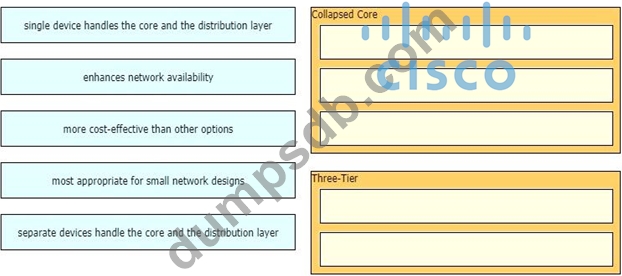

Drag and drop the characteristics of network architectures from the left onto the type of architecture on the right.

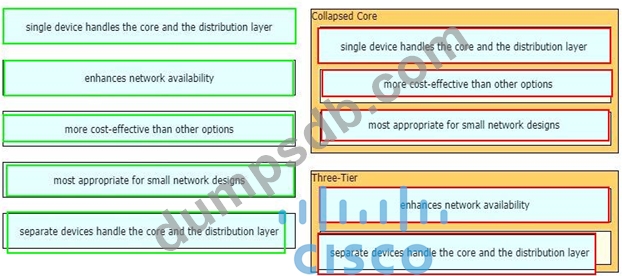

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

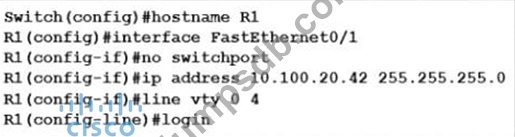

Refer to the exhibit.

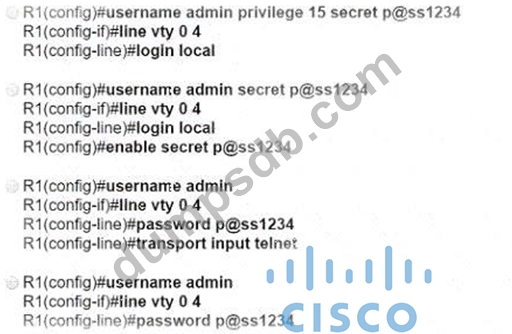

An engineer booted a new switch and applied this configuration via the console port. Which additional configuration must be applied to allow administrators to authenticate directly to enable privilege mode via Telnet using a local username and password?

• A.Option D
• B.Option C
• C.Option B
• D.Option A

Comment: *

Name: *

Email: *

Verification: *

If a notice-level message is sent to a syslog server, which event has occurred?

• A.A network device has restarted.
• B.A debug operation is running.
• C.A routing instance has flapped.
• D.An ARP inspection has failed.

Comment: *

Name: *

Email: *

Verification: *

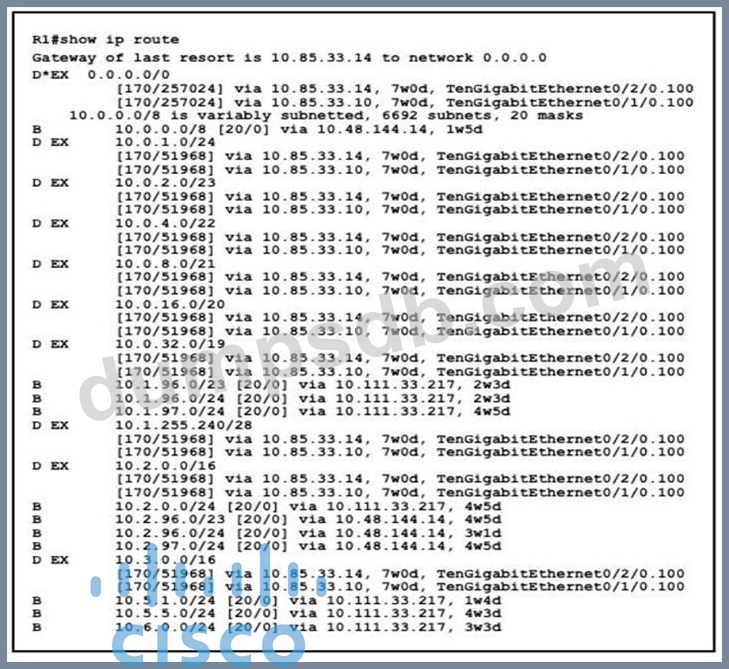

Refer to the exhibit. Which two statements about the network environment of router R1 must be true? (Choose two.)

• A.A static default route to 10.85.33.14 was defined.
• B.The 10.0.0.0/8 network was learned via external EIGRP.
• C.There are 20 different network masks within the 10.0.0.0/8 network.
• D.The EIGRP administrative distance was manually changed from 90 to 170.
• E.Ten routes are equally load-balanced between Te0/1/0.100 and Te0/2/0.100

Comment: *

Name: *

Email: *

Verification: *

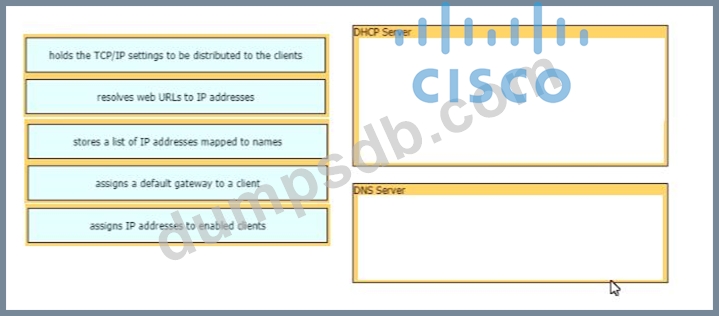

Drag and drop the functions from the left onto the correct network components on the right

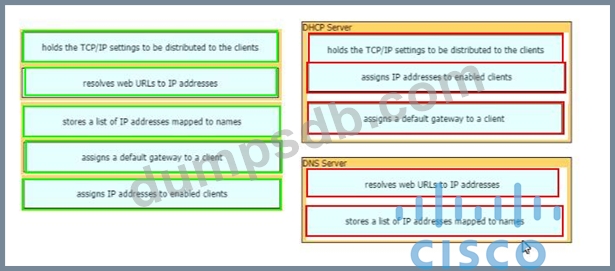

Correct Answer:
