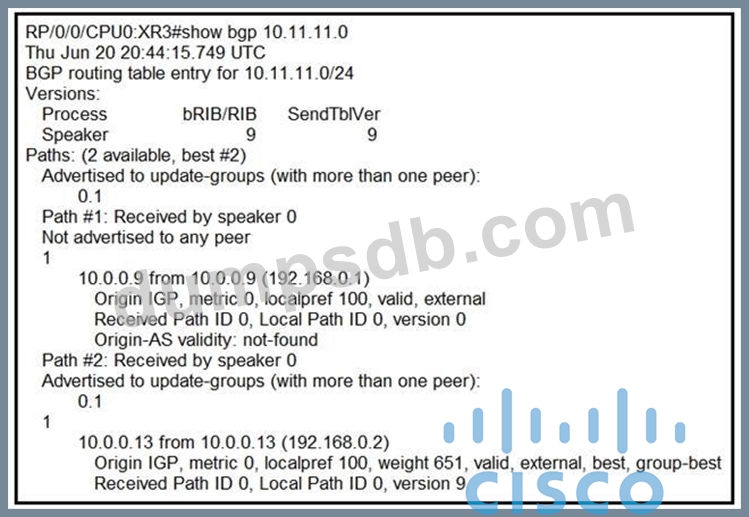

Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on #XR3.
The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available.
Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

• A.weight of 0 on the prefix coming from 192.168.0.2
• B.higher local preference on the prefix coming from 192.168.0.1
• C.weight of 100 on the prefix coming from 192.168.0.1
• D.lower local preference on the prefix coming from 192.168.0.2

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

CE1 is the gateway router into the provider network via PE1. A network operator must inject a default route into OSPF area 0. All devices inside area 0 must be able to reach PE1. Which configuration achieves this goal?

• A.Option B
• B.Option C
• C.Option D
• D.Option A

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. R1 is expected to receive routes originating from AS 65516 and from any ASs that are directly attached to it. However, R1 is receiving routes only from AS 65516. Which action corrects the configuration?

• A.Change the regular expression in the AS-path permit filter to .*.
• B.Change the regular expression in the AS-path permit filter to ^65516_[0-9]*$.
• C.Add the regular expression ^$. in the AS-path filter to permit the traffic from R2.
• D.Change the regular expression in the AS-path permit filter to _65516_.

Comment: *

Name: *

Email: *

Verification: *

A network engineer is troubleshooting OSPF multiare A.
Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

• A.hierarchical CLI
• B.DR support for topology management
• C.routing process enabled by default on all interfaces
• D.show ip ospf topology command

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

• A.Remove the route policy and only configure "allocate-label".
• B.Reconfigure the route-policy ALL_LABELS to match all after the drop.
• C.Remove the allocate-labels command.
• D.Reconfigure the route-policy ALL_LABELS to pass.
