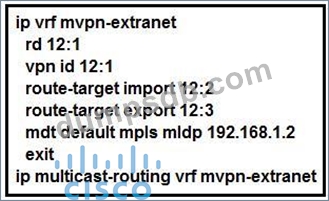

What is the effect of this configuration?

• A.Router 1 accepts multicast routes with a tag of 12:1
• B.The mroute table is cleared.
• C.An LSP virtual interface tunnel is created.
• D.A Cisco MPLS TE tunnel is generated with 192.168.1.2 as the source IP address of router 1.

Comment: *

Name: *

Email: *

Verification: *

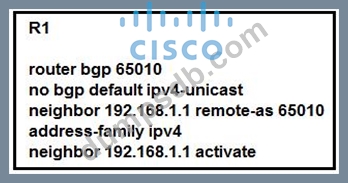

Refer to the exhibit.

Which statement describes the result of this BGP configuration?

• A.R1 operates using IPv4 and VPNv4 address families.
• B.R1 establishes an iBGP relationship with peer 192.168.1.1.
• C.R1 establishes a VPNv4 eBGP relationship with neighbor 192.168.1.1.
• D.R1 operates on IPv6 only because the bgp default ipv4-unicast command is missing.

Comment: *

Name: *

Email: *

Verification: *

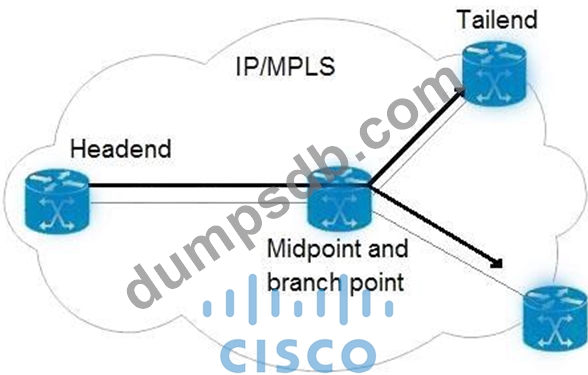

Refer to the exhibit.

An engineer is implementing an MPLS P2MP TE solution. Which type of router can serve as the midpoint router and the tailend router in this P2MP TE network implementation?

• A.headend
• B.source
• C.transit
• D.bud

Comment: *

Name: *

Email: *

Verification: *

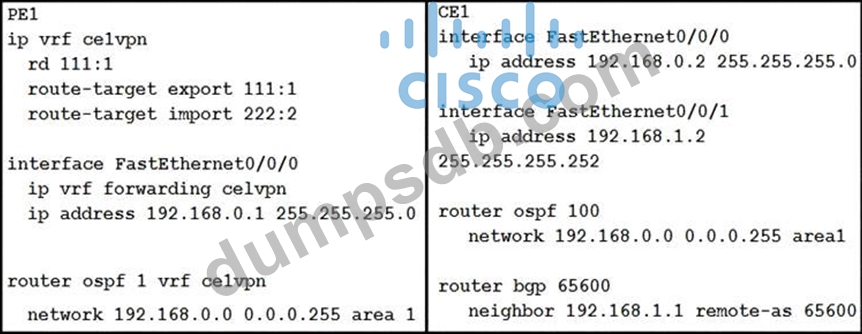

Refer to the exhibit.

If the two devices are operating normally, which two conclusions can you draw from this configuration?
(Choose two.)

• A.PE1 labels the routes it learns from CE1 with the route-target 222:2 and shares them with its VPNv4 peers.
• B.PE1 labels the routes it learns from CE1 with the route-target 111:1 and shares them with its VPNv4 peers.
• C.CE1 must use OSPF to establish a neighbor relationship with PE1.
• D.CE1 is supporting CSC.
• E.The PE-CE routes between the devices are being exchanged by OSPF

Comment: *

Name: *

Email: *

Verification: *

What do routers on the network use to avoid routing loops when OSPF is running as the PE-CE routing protocol on a service provider network?

• A.the DN bit with type 3, 5, or 7 LSA
• B.the domain tag for type 2 LSA
• C.sham links to create a super backbone over the service provider network
• D.the AS-Override feature
