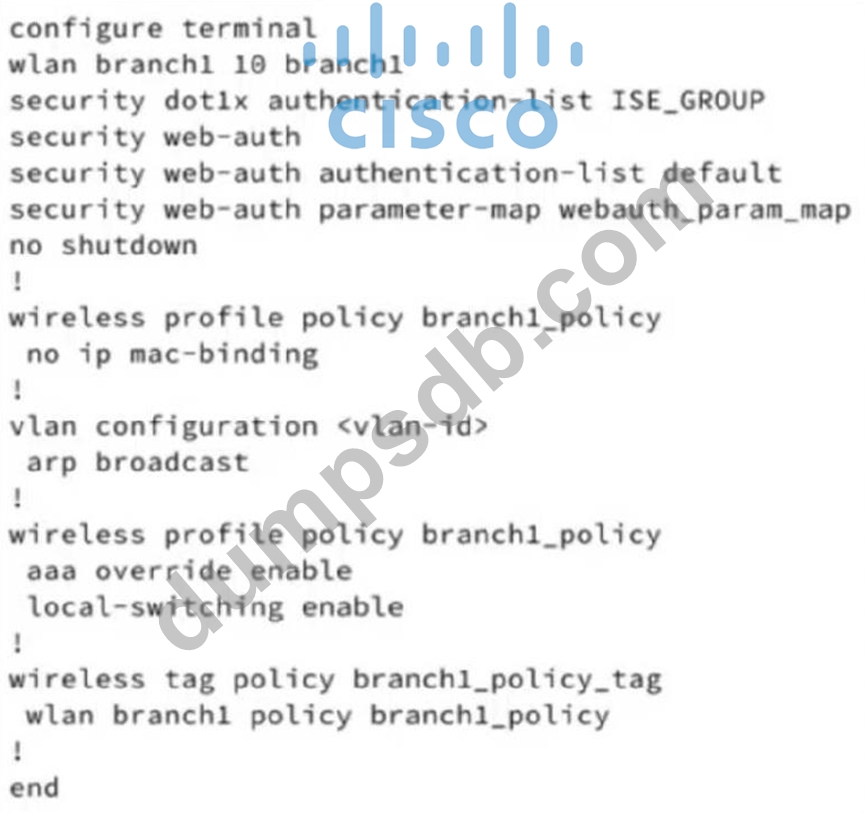

Refer to the exhibit. A wireless controller is deployed at a branch location to facilitate secure client connectivity. A network engineer configures a WLAN using 802.1X to align with company security policies. Which configuration enables client authentication for this WLAN?

• A.no ip mac-binding
• B.security dot1x authentication-list ISE_GROUP
• C.aaa override enable
• D.wlan branch1 policy branch1_policy

Comment: *

Name: *

Email: *

Verification: *

A network engineer has been tasked with migrating the management mode of a Cisco 9176 AP named "Cisco-AP053540555" in a large enterprise wireless deployment. The AP is currently managed by a Cisco Catalyst 9800 Series WLC, but the organization is transitioning to Meraki cloud management for centralized control and monitoring. To complete this migration, the engineer needs to change the AP's management mode to Meraki with force and noprompt to skip validations using the CLI on the wireless controller. What command must the engineer use?

• A.management meraki force noprompt mode
• B.ap management mode meraki force noprompt
• C.ap management meraki force noprompt mode
• D.management-mode meraki force noprompt

Comment: *

Name: *

Email: *

Verification: *

A network engineer must isolate all guest users connected to the WLAN on a Cisco 9800 WLC so they cannot communicate with each other but can access the internet. The WLAN must meet these requirements:
- SSID named VisitorAccess assigned to VLAN 30
- guests prohibited from sharing files with other guests
- must be scalable to multiple access points in the building
Which action must the network engineer take to meet the requirements?

• A.Enable P2P blocking in the policy profile and map the WLAN to a dedicated guest VLAN.
• B.Set up local authentication and map the WLAN to a dedicated guest VLAN.
• C.Set up a FlexConnect group and use local switching for the guest WLAN internet access.
• D.Enable multicast mode and associate a RADIUS server with the guest WLAN.

Comment: *

Name: *

Email: *

Verification: *

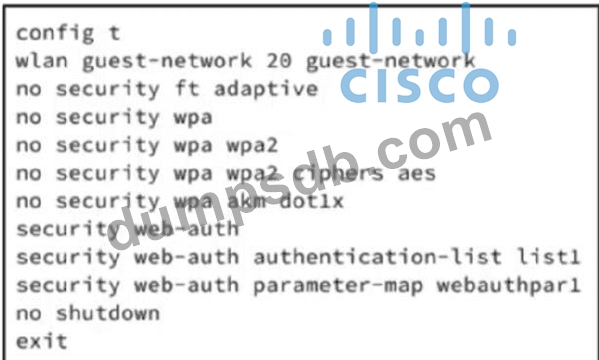

Refer to the exhibit.

An engineer must configure wireless guest networking for a deployment at site A, which requires support for guest VLAN assignment and assignment for wlan guest-network 20. The controller will provide network segregation and restrict access to internal resources. Based on the configuration commands, which action meets the requirements?

• A.Establish a mesh bridge connection for the guest VLAN and assign logical interface for isolation.
• B.Create a policy profile for the guest VLAN and a policy tag to map the WLAN to the policy profile.
• C.Assign a policy tag to map the to WLAN and assign a physical interface for isolation.
• D.Implement the Spanning Tree Protocol and assign an AP group name.

Comment: *

Name: *

Email: *

Verification: *

Which Cisco Ultra-Reliable Wireless Backhaul process enables devices to establish a reliable connection with the next AP along their path before losing connectivity to the current one in a wireless network during roaming?

• A.Open roaming
• B.Fast client handoff
• C.802.11v high speed roaming
• D.Make-before-break handover logic
