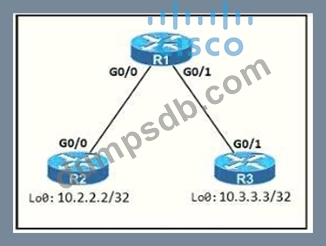

Refer to the exhibit.

An engineer must deny Telnet traffic from the loopback interface of router R3 to the loopback interface of router R2 during the weekend hours. All other traffic between the loopback interfaces of routers R3 and R2 must be allowed at all times. Which command accomplish this task?

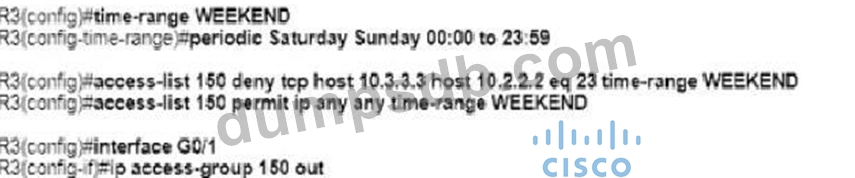

A)

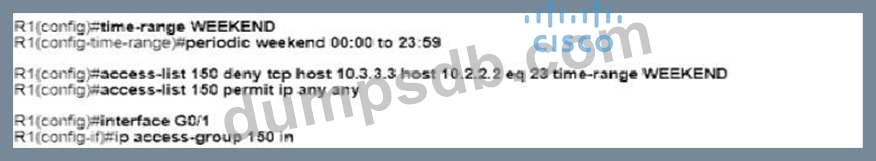

B)

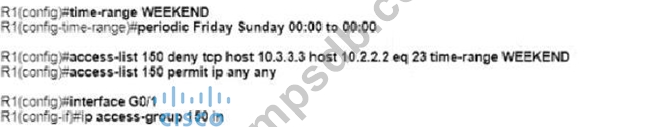

C)

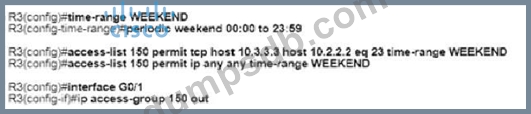

D)

• A.Option A
• B.Option B
• C.Option C
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

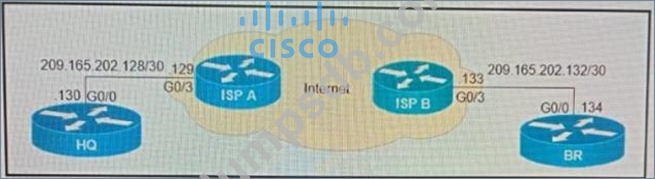

Refer to the exhibit.

What is the effect of these commands on the BR and HQ tunnel interfaces?

• A.The keepalives are sent every 3 seconds and 5 retries
• B.The keepalives are sent every 5 seconds and 3 retries
• C.The tunnel line protocol goes down when the keepalive counter reaches 6
• D.The tunnel line protocol goes down when the keepalive counter reaches 5

Comment: *

Name: *

Email: *

Verification: *

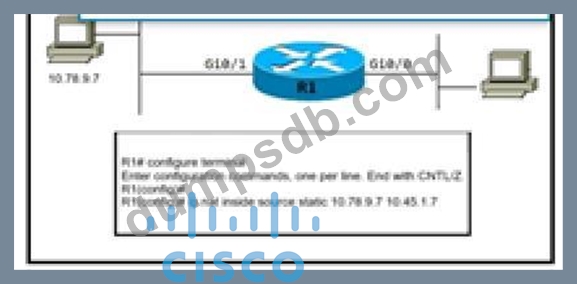

Refer to the exhibit.

A network architect has partially configured static NAT. which commands should be asked to complete the configuration?

• A.R1(config)#interface GigabitEthernet0/0 R1(config)#ip pat inside
  R1(config)#interface GigabitEthernet0/1 R1(config)#ip pat outside
• B.R1(config)#interface GigabitEthernet0/0 R1(config)#ip nat inside
  R1(config)#interface GigabitEthernet0/1 R1(config)#ip nat outside
• C.R1(config)#interface GigabitEthernet0/0 R1(config)#ip pat outside
  R1(config)#interface GigabitEthernet0/1 R1(config)#ip pat inside
• D.R1(config)#interface GigabitEthernet0/0 R1(config)#ip nat outside
  R1(config)#interface GigabitEthernet0/1 R1(config)#ip nat inside

Comment: *

Name: *

Email: *

Verification: *

An engineer must configure a new loopback Interface on a router and advertise the interface as a fa4 in OSPF.
Which command set accomplishes this task?
A)

B)

C)

D)

• A.Option A
• B.Option B
• C.Option C
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

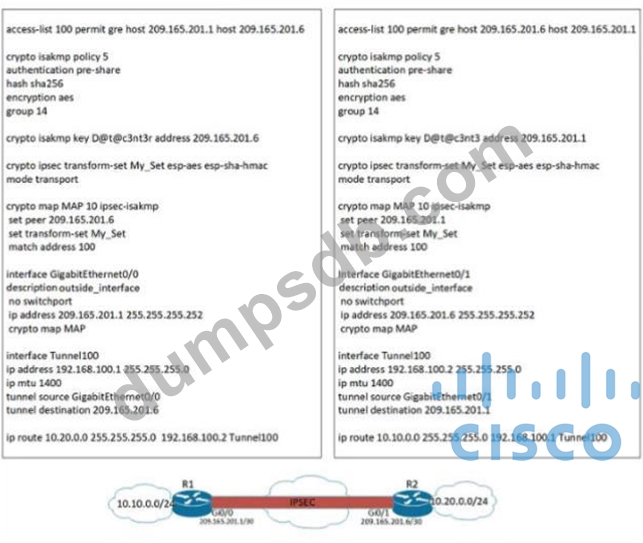

Refer to the exhibit.

A network engineer must simplify the IPsec configuration by enabling IPsec over GRE using IPsec profiles.
Which two configuration changes accomplish this? (Choose two).

• A.Remove the crypto map and modify the ACL to allow traffic between 10.10.0.0/24 to 10.20.0.0/24.
• B.Create an IPsec profile, associate the transform-set, and apply the profile to the tunnel interface.
• C.Remove all configuration related to crypto map from R1 and R2 and eliminate the ACL.
• D.Create an IPsec profile, associate the transform-set ACL, and apply the profile to the tunnel interface.
• E.Apply the crypto map to the tunnel interface and change the tunnel mode to tunnel mode ipsec ipv4.
