A client device roams between access points located on defferent floors in an atrium. The access points joined to the same controller and configuration in local mode. The access points are in different IP addresses, but the client VLAN in the group same. What type of roam occurs?

• A.inter-controller
• B.inter-subnet
• C.intra-VLAN
• D.intra-controller

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Which HTTP JSON response does the python code output give?

• A.7.0(3)I7(4)
• B.NameError: name 'json' is not defined
• C.KeyError 'kickstart_ver_str'
• D.7.61

Comment: *

Name: *

Email: *

Verification: *

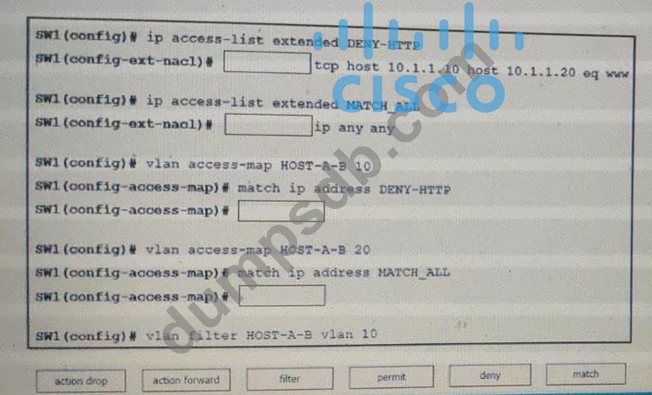

Refer to the exhibit.

An engineer must deny HTTP traffic from host A to host B while allowing all other communication between the hosts, drag and drop the commands into the configuration to achieve these results. Some commands may be used more than once. Not all commands are used.

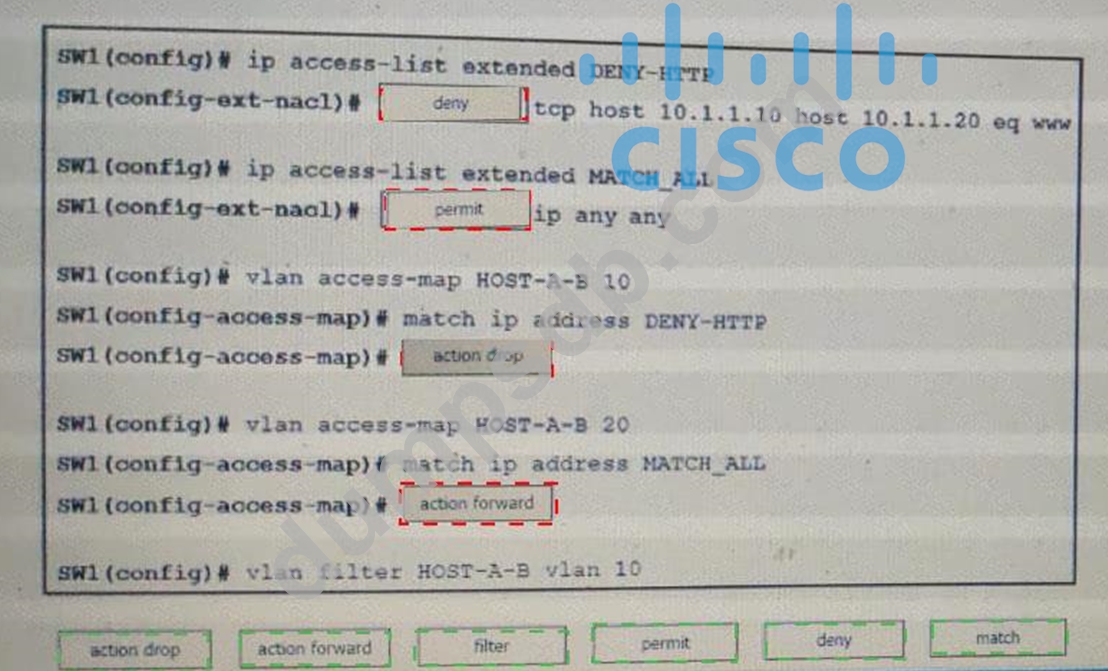

Correct Answer:

Explanation
Deny
Permit
Action drop
Action forward

Comment: *

Name: *

Email: *

Verification: *

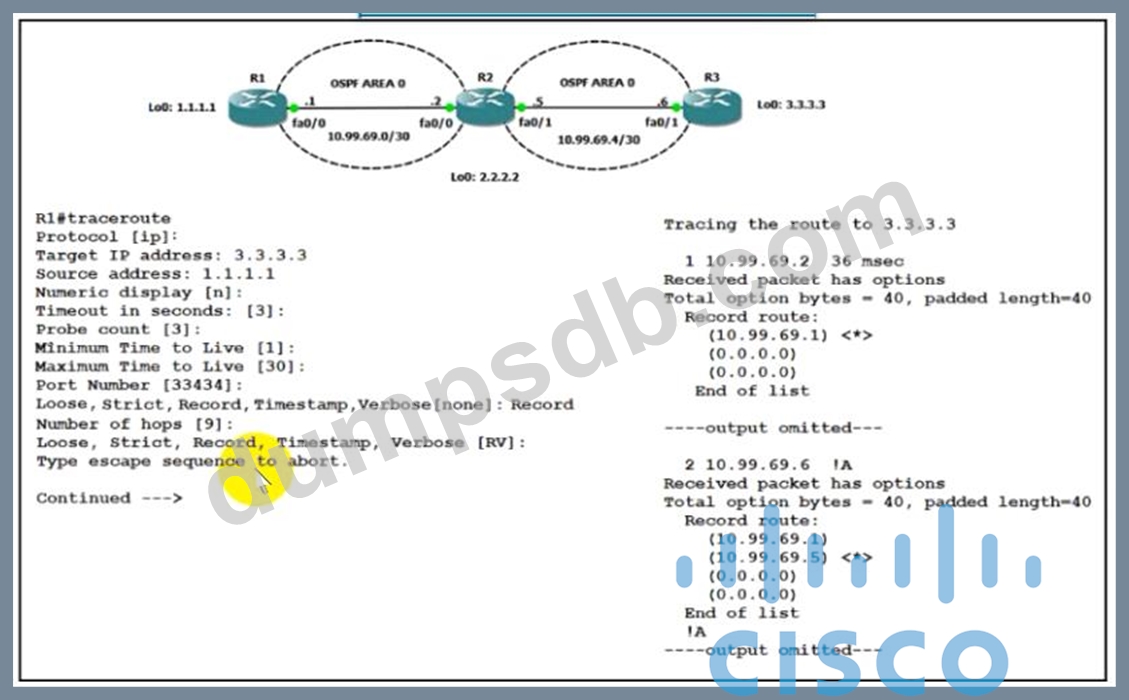

Refer to the exhibit.

The traceroute fails from R1 to R3. What is the cause of the failure?

• A.An ACL applied Inbound on loopback0 of R2 Is dropping the traffic.
• B.The loopback on R3 Is in a shutdown stale.
• C.An ACL applied Inbound on fa0/1 of R3 is dropping the traffic.
• D.Redistribution of connected routes into OSPF is not configured.

Comment: *

Name: *

Email: *

Verification: *

Which two LISP infrastructure elements are needed to support LISP to non-LISP internetworking? (Choose two)

• A.PETR
• B.PITR
• C.MR
• D.MS
• E.ALT
