Refer to the exhibit. What does the error message relay to the administrator who is trying to configure a Cisco IOS device?

• A.A NETCONF request was made for a data model that does not exist.
• B.The device received a valid NETCONF request and serviced it without error.
• C.A NETCONF message with valid content based on the YANG data models was made, but the request failed.
• D.The NETCONF running datastore is currently locked.

Correct Answer: A

Explanation

Reference:
https://www.cisco.com/c/en/us/support/docs/storage-networking/management/200933-YANG-NETCONF-Confi

Comment: *

Name: *

Email: *

Verification: *

Which statement about dynamic GRE between a headend router and a remote router is true?

• A.GRE tunnels can be established when the remote router has a dynamic IP address
• B.A GRE tunnel without an IP address has a status of administratively down
• C.The headend router learns the IP address of the remote end router statically
• D.The remote router initiates the tunnel connection

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

R1 is able to ping the R3 fa0/1 interface. Why do the extended pings fail?

• A.The maximum packet size accepted by the command is 1476 bytes.
• B.R3 is missing a return route to 10.99.69.0/30
• C.R2 and R3 do not have an OSPF adjacency
• D.The DF bit has been set

Comment: *

Name: *

Email: *

Verification: *

Which RF value represents the decline of the RF signal amplitude over a given distance?

• A.signal-to-noise ration
• B.effective isotropic racketed power
• C.free space path loss
• D.received signal strength indicator

Comment: *

Name: *

Email: *

Verification: *

Which statement explains why Type 1 hypervisor is considered more efficient than Type 2 hypervisor?

• A.Type 1 hypervisor runs directly on the physical hardware of the host machine without relying on the underlying OS.
• B.Type 1 hypervisor enables other operating systems to run on it.
• C.Type 1 hypervisor relics on the existing OS of the host machine to access CPU, memory, storage, and network resources.
• D.Type 1 hypervisor is the only type of hypervisor that supports hardware acceleration techniques.

Correct Answer: A

Explanation

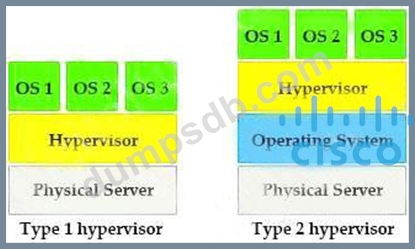

There are two types of hypervisors: type 1 and type 2 hypervisor.
In type 1 hypervisor (or native hypervisor), the hypervisor is installed directly on the physical server. Then instances of an operating system (OS) are installed on the hypervisor. Type 1 hypervisor has direct access to the hardware resources. Therefore they are more efficient than hosted architectures. Some examples of type 1 hypervisor are VMware vSphere/ESXi, Oracle VM Server, KVM and Microsoft Hyper-V.
In contrast to type 1 hypervisor, a type 2 hypervisor (or hosted hypervisor) runs on top of an operating system and not the physical hardware directly. answer 'Type 1 hypervisor runs directly on the physical hardware of the host machine without relying on the underlying OS' big advantage of Type 2 hypervisors is that management console software is not required. Examples of type 2 hypervisor are VMware Workstation (which can run on Windows, Mac and Linux) or Microsoft Virtual PC (only runs on Windows).
