Which route type is added to the routing table by a routing protocol?

• A.Default route
• B.Dynamic
• C.Static
• D.Directly connected

Comment: *

Name: *

Email: *

Verification: *

What accurately describes IPv6 addressing?

• A.IPv6 uses 128 hexadecimal numbers instead of the 32 hexadecimal numbers used by IPv4.
• B.IPv6 addresses are denoted by eight groups of four hexadecimal numbers.
• C.IPv6 uses broadcast addresses for neighbor discovery.
• D.IPv6 is used to converse IP addresses and utilize private addresses.

Comment: *

Name: *

Email: *

Verification: *

Which formula is used for calculating OSPF interface costs?

• A.Reference bandwidth + interface bandwidth
• B.Reference bandwidth - interface bandwidth
• C.Reference bandwidth / interface bandwidth
• D.Interface bandwidth / reference bandwidth

Comment: *

Name: *

Email: *

Verification: *

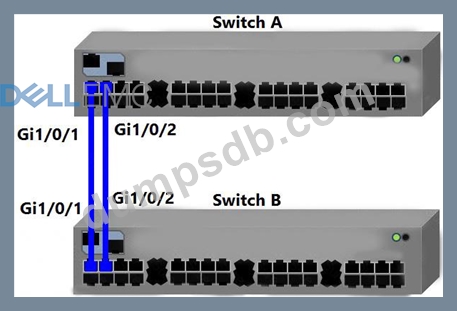

Refer to the exhibit.

Switch A and Switch B are connected to each other. Both switches use interfaces Gi1/0/1 and Gi1/0/2. Switch A has a Spanning Tree priority of 8192 and Switch B has the default priority. Which interface becomes the root port?

• A.Switch A Gi1/0/2
• B.Switch A Gi1/0/1
• C.Switch B Gi1/0/2
• D.Switch B Gi1/0/1

Comment: *

Name: *

Email: *

Verification: *

A network administrator has a Dell EMC switch that has been configured with several VLANs. Each VLAN switch virtual interface (SVI) has an IP address assigned to it with each of them on different subnets. In addition, routing has been enabled on the switch.
Which action occurs when the switch receives a packet on one of its SVIs but the destination IP address of the packet does not match the IP address of that SVI?

• A.Switch replies back to the source with an ICMP Reject packet.
• B.Switch duplicates the packet and sends it to all interfaces.
• C.Switch checks its routing table and forwards the packet accordingly.
• D.Switch drops the packet.
