Which of the following statements are correct? (Choose two)

• A.A single collision domain exists between SWA and SWC.
• B.A single broadcast domain exists between SWA and SWB.
• C.A single broadcast domain exists between SWA and SWC.
• D.A single collision domain exists between RTA and SWC.

Comment: *

Name: *

Email: *

Verification: *

As shown in the following figure, all hosts can communicate normally. What is the correct relationship between the SWBMAC address and the port?

• A.MAC-A GO/0/1 MAC-B GO/0/2 MAC-C G0/0/3
• B.MAC-A G0/0/3 MAC-B G0/0/3 MAC-C GO/0/1
• C.MAC-A G0/0/2 MAC-B G0/0/2 MAC-C G0/0/3
• D.MAC-A GO/0/1 MAC-B GO/0/1 MAC-C G0/0/3

Comment: *

Name: *

Email: *

Verification: *

Refer to the command output. Which statement is true regarding this command?

• A.The configuration represents a static route to the 10.0.12.0 network.
• B.The preference value of this configured route is 100.
• C.If the router has learned the same destination network via a dynamic routing protocol, the static route will always take precedence.
• D.The configuration represents a static route to the 192.168.1.1 network

Comment: *

Name: *

Email: *

Verification: *

An administrator wishes to manage the router in the remote branch office, which method can be used?

• A.DHCP
• B.Telnet
• C.Console Connection
• D.FTP

Comment: *

Name: *

Email: *

Verification: *

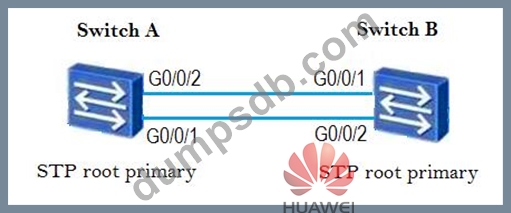

Refer to the graphic.

Both switches are operating using STP. With exception to those shown, all other default parameters have been maintained. Which port will be blocked?

• A.Port G0/0/1 of switch A.
• B.Port G0/0/2 of switch B.
• C.Port G0/0/2 of switch A.
• D.Port G0/0/1 of switch B.

Comment: *

Name: *

Email: *

Verification: *
