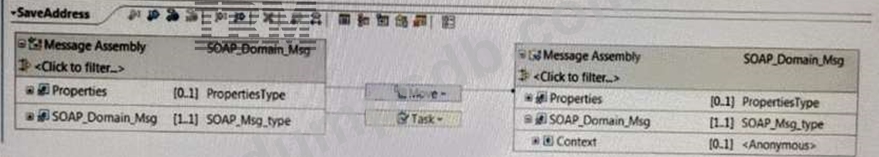

The image below is an example of which IBM App Connect Toolkit editor?

• A.Message Flow Editor
• B.Message Definition
• C.Policy Editor
• D.Graphical Data Mapping

Comment: *

Name: *

Email: *

Verification: *

What is the purpose of the mqsicreateworkdir command?

• A.It allows the creation of a new integration flow work directory
• B.It allows the creation of a new integration node work directory
• C.It allows the creation of a new integration server work directory
• D.It allows the creation of a new integration switch server work directory

Comment: *

Name: *

Email: *

Verification: *

Which command creates basic user credentials to allow logging into the web user interface?

• A.mqsiwebuseradmin
• B.mqsiwebaceuseradmin
• C.mqsiuseradmin
• D.mqsiacldwebuseradmin

Comment: *

Name: *

Email: *

Verification: *

What is the purpose of an Integration Node?

• A.It is a collection of processes to manage state of the deployed applications and libraries.
• B.It provides a specific mode of operation or the availability of an additional product, such as a database.
• C.It is a parent process which is responsible for looking after one or more associated runtime processes.
• D.It provides an isolated runtime environment for a set of deployed message flows and resources.

Comment: *

Name: *

Email: *

Verification: *

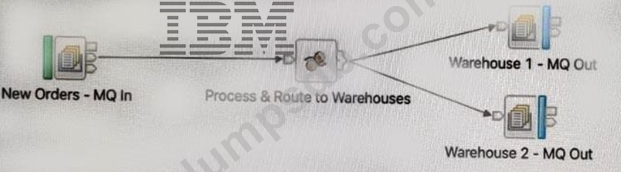

The following flow receives order messages on an MQInput node then uses a Compute node to do some processing and sends MQ messages to two warehouses on two different queues.

The compute node routes the message to two MQOutput nodes connected through terminals Out1 and Out using the following ESQL expressions.
PROPAGATE TO TERMINAL 'out1; RETURN TRUE;
After deploying the flow, the solution developer noticed that the second queue always receives an empty message. To fix this issue, which ESQL expression lines should be used in the Compute node instead?

• A.PROPAGATE TO TERMINAL 'out1; PROPAGATE; RETURN FALSE;
• B.PROPAGATE TO TERMINAL 'out; PROPAGATE TO TERMINAL 'out';
• C.PROPAGATE TO TERMINAL 'out1; DELETE NONE-RETURN TRUE;
• D.RETURN TRUE DELETE NONE; RETURN TRUE;
