You notice that a route from internal BGP peer 192.168.1.1 is missing from the local route table.Which two commands would be used to help identify the source of the problem? (Choose two.)

• A.show route bgp
• B.show route receive-protocol bgp 192.168.1.1
• C.show route advertising-protocol bgp 192.168.1.1
• D.show route protocol bgp hidden

Comment: *

Name: *

Email: *

Verification: *

What are three ways to configure IPv6 addresses in your network? (Choose three.)

• A.Configure your IPv6 addresses by configuring support for unicast-arp-negotiation.
• B.Configure your IPv6 addresses by assigning your router a prefix list.
• C.Configure your IPv6 addresses using stateless auto configuration.
• D.Statically configure your IPv6 addresses.
• E.Configure your IPv6 addresses by setting up a DHCPv6 server.

Comment: *

Name: *

Email: *

Verification: *

By default, the Junos OS advertises which address(es) in LDP forwarding equivalency class (FEC) messages?

• A.loopback address
• B.primary transit interface address
• C.all transit interfaces
• D.all router addresses

Comment: *

Name: *

Email: *

Verification: *

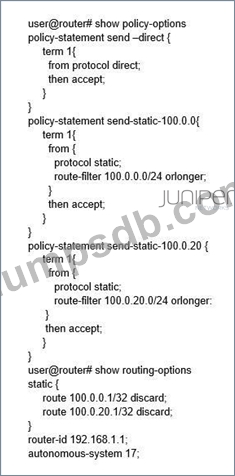

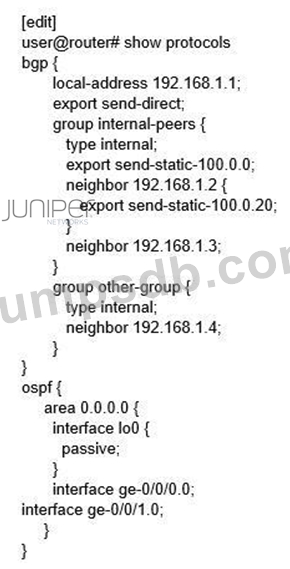

Click the Exhibit.



Referring to the exhibit, which route(s) will be exported to neighbor 192.168.1.2?

• A.100.0.1/32 and 100.0.20.1/32
• B.100.0.20.1/32
• C.10.0.0.0/24, 11.0.0.0/24,100.0.0.1/32, 100.0.20.1/32, and 192.168.1.1/32
• D.100.0.20.1/32, 192.168.1.1/32, and 100.0.0.1/32

Comment: *

Name: *

Email: *

Verification: *

Which MPLS feature works with Constrained Shortest Path First (CSPF) to protect against the primary and secondary paths using the same link?

• A.policy control over LSP selection
• B.LSP metrics
• C.fate-sharing
• D.explicit null configuration
