You have a stub OSPF area running in your network. Your supervisor has asked you to build a virtual link across this area to connect new equipment acquired in a recent ISP acquisition.Which statement is correct about this scenario?

• A.Type 5 LSAs would be seen only in the newly attached area.
• B.Type 5 LSAs would carry external information across your transit area to the backbone.
• C.Type 5 LSAs would be converted to type 7 LSAs.
• D.Type 5 LSAs would be blocked in a stub area.

Comment: *

Name: *

Email: *

Verification: *

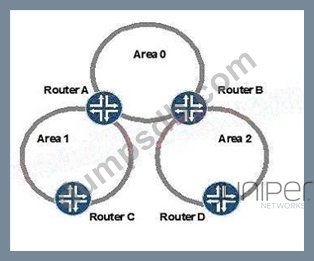

Click the Exhibit button. Given the OSPF topology shown in the exhibit, how many unique link-state databases are present in the network?

• A.1
• B.2
• C.3
• D.6

Comment: *

Name: *

Email: *

Verification: *

The segment touting SRGB start label Is 10,000 and the SRGB index range is 500. In this scenario, which two statements are correct? (Choose two.)

• A.The first usable label is 10,001.
• B.The last usable label is 10,499.
• C.The first usable label Is 10,000.
• D.The last usable label is 10.501.

Comment: *

Name: *

Email: *

Verification: *

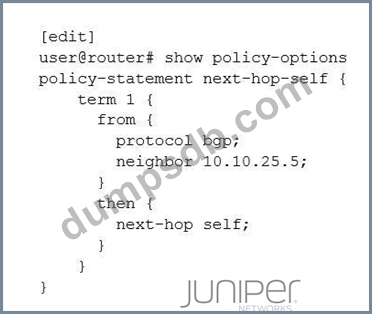

Click the Exhibit.

Your router has an external peering session to 10.10.25.5 and several internal peers. However, routes learned from EBGP peers are showing up in a hidden state on IBGP peers.
Where would you apply the policy shown in the exhibit to solve this issue?

• A.Apply the next-hop-self as an import policy to the external BGP peers.
• B.Apply the next-hop-self as an import policy to the internal BGP peers.
• C.Apply the next-hop-self as an export policy to the internal BGP peers.
• D.Apply the next-hop-self as an export policy to the external BGP peers.

Comment: *

Name: *

Email: *

Verification: *

Click the Exhibit.

Referring to the configuration in the exhibit, which two statements are true? (Choose two.)

• A.The next-hop 172.16.1.2 must respond to ping commands for the route 192.168.5.0/24 to be active.
• B.The next-hop 172.16.1.2 must be directly connected to the router for route
• C.The next-hop 172.16.1.2 must be part of an active route in route table inet 0 for route 192.168.5.0/24 to be active.
• D.The next-hop 172.16.1.2 must be active in route table inet 3 for the route 192.168.5.0/24 to be active.
