Case Study 2
Requirements
ContentAnalysisService
The company's data science group built ContentAnalysisService which accepts user generated content as a string and returns a probable value for inappropriate content. Any values over a specific threshold must be reviewed by an employee of Contoso, Ltd.
You must create an Azure Function named CheckUserContent to perform the content checks.
Costs
You must minimize costs for all Azure services.
Manual review
To review content, the user must authenticate to the website portion of the ContentAnalysisService using their Azure AD credentials. The website is built using React and all pages and API endpoints require authentication. In order to review content a user must be part of a ContentReviewer role. All completed reviews must include the reviewer's email address for auditing purposes.
High availability
All services must run in multiple regions. The failure of any service in a region must not impact overall application availability.
Monitoring
An alert must be raised if the ContentUploadService uses more than 80 percent of available CPU-cores.
Security
You have the following security requirements:
* Any web service accessible over the Internet must be protected from cross site scripting attacks.
* All websites and services must use SSL from a valid root certificate authority.
* Azure Storage access keys must only be stored in memory and must be available only to the service.
* All Internal services must only be accessible from Internal Virtual Networks (VNets)
* All parts of the system must support inbound and outbound traffic restrictions.
* All service calls must be authenticated by using Azure AD.
User agreements
When a user submits content, they must agree to a user agreement. The agreement allows employees of Contoso.Ltd to review content, store cookies on user devices and track user's IP addresses.
Information regarding agreements is used by multiple divisions within Contoso, Ltd.
User responses must not be lost and must be available to all parties regardless of individual service uptime. The volume of agreements is expected to be in the millions per hour.
Validation testing
When a new version of the ContentAnalysisService is available the previous seven days of content must be processed with the new version to verify that the new version does not significantly deviate from the old version.
Issues
Users of the ContentUploadService report that they occasionally see HTTP 502 responses on specific pages.
Code
ContentUploadService


Hotspot Question

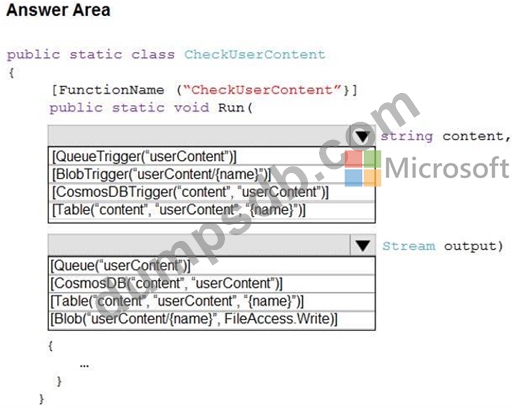

You need to implement the bindings for the CheckUserContent function.
How should you complete the code segment? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

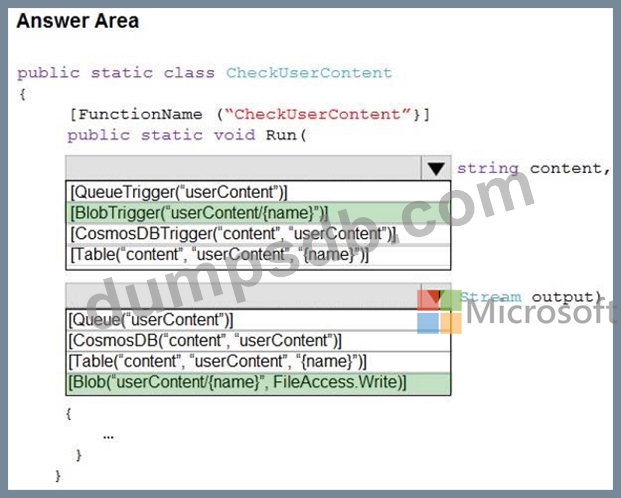

Correct Answer:

Explanation:
Box 1: [BlobTrigger(..)]
Box 2: [Blob(..)]
Azure Blob storage output binding for Azure Functions. The output binding allows you to modify and delete blob storage data in an Azure Function.
The attribute's constructor takes the path to the blob and a FileAccess parameter indicating read or write, as shown in the following example:
[FunctionName("ResizeImage")]
public static void Run(
[BlobTrigger("sample-images/{name}")] Stream image,
[Blob("sample-images-md/{name}", FileAccess.Write)] Stream imageSmall)
{
...
}
Scenario: You must create an Azure Function named CheckUserContent to perform the content checks. The company's data science group built ContentAnalysisService which accepts user generated content as a string and returns a probable value for inappropriate content. Any values over a specific threshold must be reviewed by an employee of Contoso, Ltd.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-bindings-storage-blob-output

Comment: *

Name: *

Email: *

Verification: *

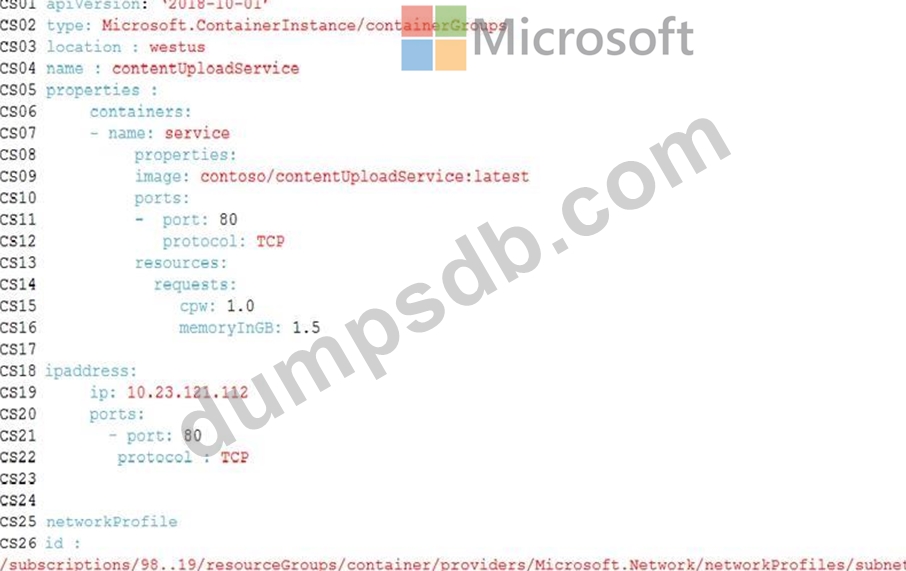

You need to configure the ContentUploadService deployment.
Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A.Add the following markup to line CS23:
  types: Private
• B.Add the following markup to line CS24:
  osType: Windows
• C.Add the following markup to line CS24:
  osType: Linux
• D.Add the following markup to line CS23:
  types: Public

Comment: *

Name: *

Email: *

Verification: *

You are writing code to create and run an Azure Batch job.
You have created a pool of compute nodes.
You need to choose the right class and its method to submit a batch job to the Batch service.
Which method should you use?

• A.JobOperations.CreateJobO
• B.CloudJob.Enable(IEnumerable<BatchClientBehavior>)
• C.CloudJob.CommitAsync(IEnumerable<BatchClientBehavior>, CancellationToken)
• D.JobOperations.EnableJob(String, IEnumerable<BatchClientBehavior>)
• E.JobOperations.EnableJobAsync(String. IEnumerable<BatchClientBehavior>. CancellationToken)

Comment: *

Name: *

Email: *

Verification: *

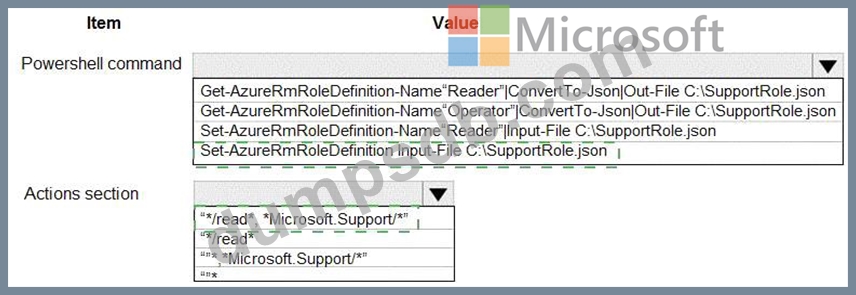

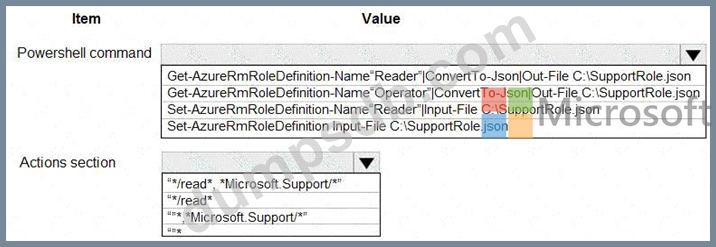

Your company is migrating applications to Azure. The IT department must allow internal developers to communicate with Microsoft support.
The service agents of the IT department must only have view resources and create support ticket permissions to all subscriptions. A new custom role must be created by reusing a default role definition and changing the permissions.
You need to create the custom role.
To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

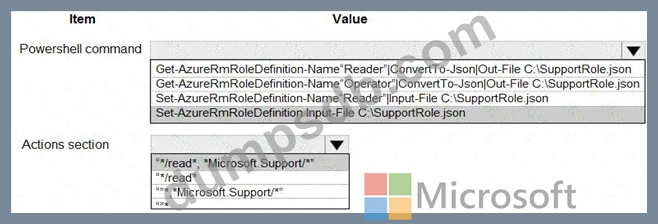

Correct Answer:

Explanation

Box 1: Set-AzureRmRoleDefinition Input-File C:\SupportRole.json
The Set-AzureRmRoleDefinition cmdlet updates an existing custom role in Azure Role-Based Access Control.
Provide the updated role definition as an input to the command as a JSON file or a PSRoleDefinition object.
The role definition for the updated custom role MUST contain the Id and all other required properties of the role even if they are not updated: DisplayName, Description, Actions, AssignableScope Box 2: "*/read*."* Microsoft.Support/*" Microsoft.Support/* Create and manage support tickets
"Microsoft.Support" role definition azure

Comment: *

Name: *

Email: *

Verification: *

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You develop Azure solutions.
You must grant a virtual machine (VM) access to specific resource groups in Azure Resource Manager.
You need to obtain an Azure Resource Manager access token.
Solution: Use the Reader role-based access control (RBAC) role to authenticate the VM with Azure Resource Manager.
Does the solution meet the goal?

• A.Yes
• B.No
