The security team has requested that [email protected] have the ability to fully manage NSX Manager (192.168.210.15) for Site B.
Requirements:
vCenter: vcsa-01b.corp.local
Credentials: [email protected] / VMware1!

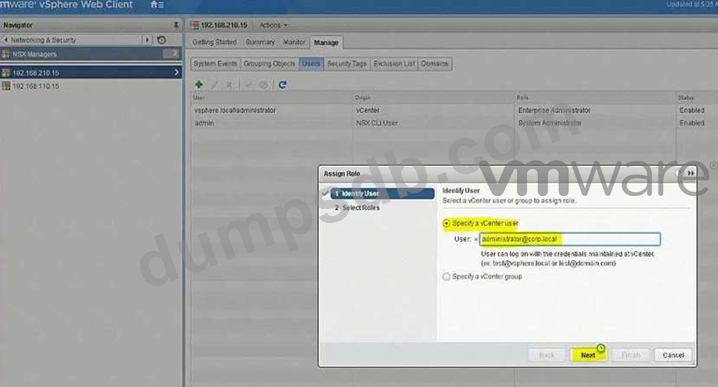

Ensure [email protected] has the ability to fully manage NSX Manager in SiteB.
NOTE:
You may have to log out of the web client and back in for 192.168.210.15 to show in web client.
HOL LAB for Practice:
See the explanation part for complete solution.

Correct Answer:

SOLUTION:

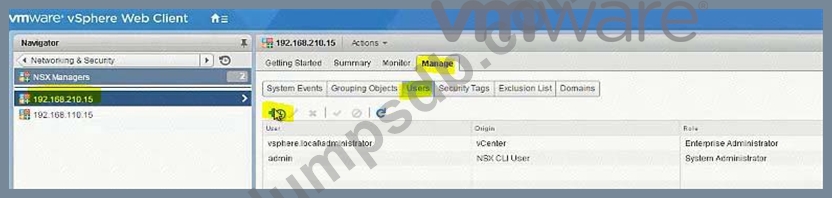

NSX Manager in SiteB

[email protected]


go to Nsx manager - b. select Manage Vcenter registration. check if lookup service is configured if not configured it will the details.
lookup service ip = Nsx Manager - a IP Address
Lookup service port = 7444
Lookup service= https://192.168.110.15:7444/lookupservice/sdk
SSO administrator = [email protected]
password = VMware1!
click on ok. click on yes.
NOTE: it will show u connected. if not connected. logout and login again

Comment: *

Name: *

Email: *

Verification: *

Provide automatic IP assignment for the servers on the DEV-DB-Tier-01-NEW segment.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Edge: Dev-Edge
Automatically allocate IP addreesses in the 172.16.30.100-149 range.
Lease time: 1 hour
Ensure hosts that receive an IP assignment will be able to reach the other Dev subnets.

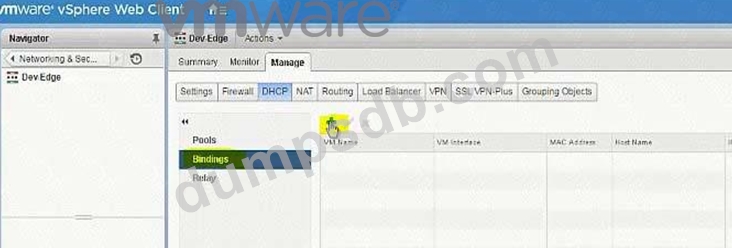

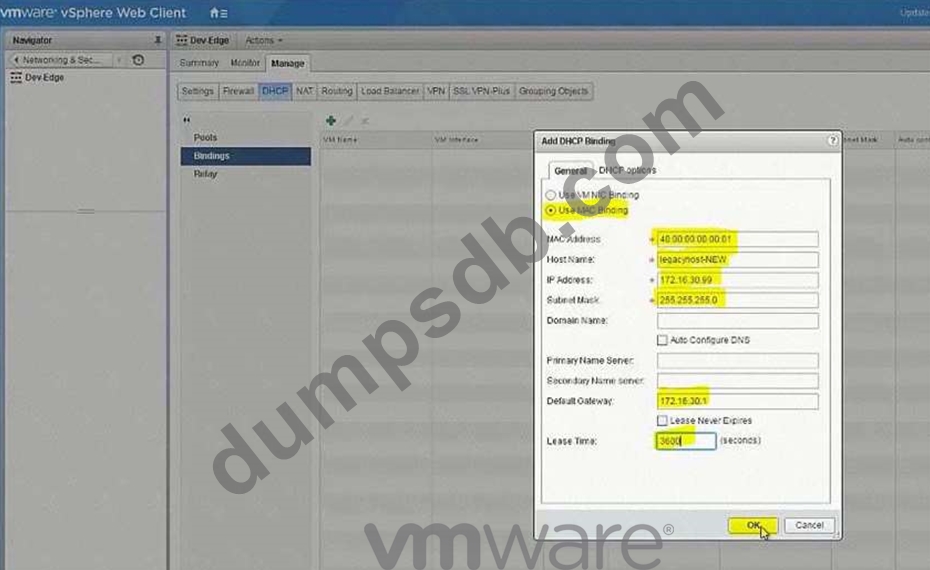

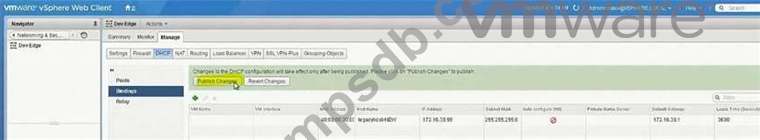

The legacyhost-NEW with the MAC address 40:00:00:00:00:01 must always be assigned 172.16.30.99 Ensure other parameters match those of the dynamic allocation mechanism (Task1).

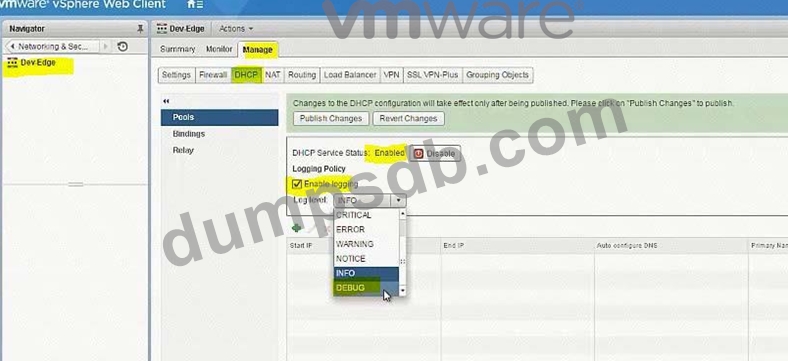

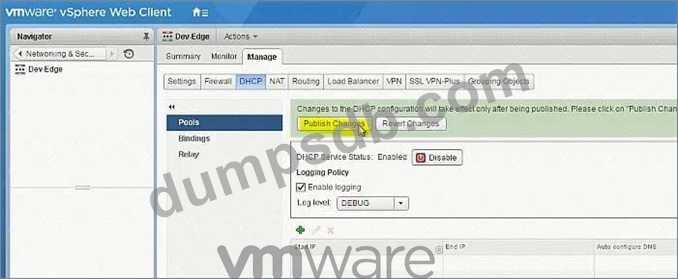

Enable logging with the highest level of detail for automatic IP allocations.
Ensure all requirements have been met.
NOTE:
Do not configure DHCP Relay agent on the Dev-DLR-NEW as this will be done by another administrator.
HOL LAB for Practice:
DHCP and other questions 7, 8, 9
See the explanation part for complete solution.

Correct Answer:

SOLUTION:

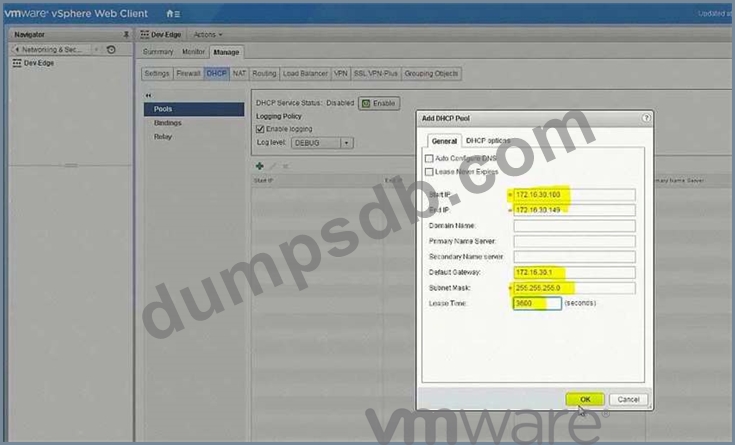

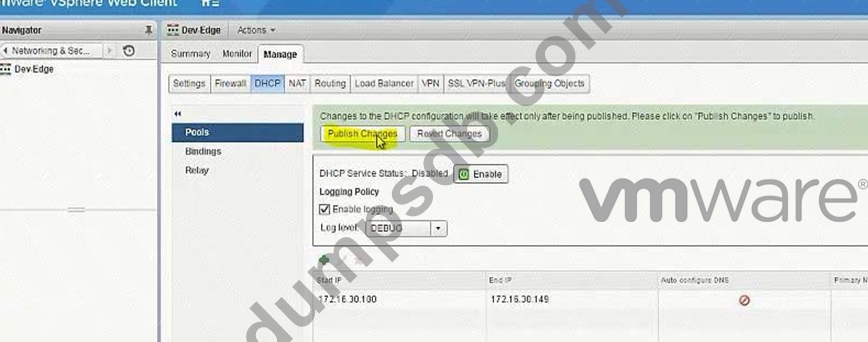

Add Pool as per given details:


Add Pool as per given details:

Comment: *

Name: *

Email: *

Verification: *

The security team has submitted two requests to change or limit access in NSX for Site A's vCenter groups.
Requirements:
NSX Manager: nsxmgr-01a.corp.local
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Grant all members of vCenter group AuditTeam the minimal access necessary to view NSX Data Security policy configurations for all objects in Site A.
Grant all members of vCenter group ScanTeam the minimal access necessary to enable them to start and stop data security scans in Site A.
Ensure that the principles of least privilege are adhered to.
NOTE:
The Active Directory groups associated with the vCenter groups has already been preconfigured.
HOL LAB for Practice:
See the explanation part for complete solution.

Correct Answer:

SOLUTION:
select Home. select administrator. select domain vsphere.local. select groups.
click + sign. enter group name AuditTeam click ok. do same for ScanTeam.


[email protected]




[email protected]



select datacenter A.
select manage select permission click on + Sign.
select Assign role read only. select all privileges click on Add
select AuditTeam and select ScanTeam. check propagate to childern. and click ok

Comment: *

Name: *

Email: *

Verification: *

Routing through TS-Edge-01 is not working. The service provider (SP) has confirmed their configuration is correct.
Requirements:
vCenter: vcsa01a.corp.local
Credential: [email protected] / VMware1!
Edge: TS-Edge-01
Credential: admin / VMware1!VMware1!
Problem Edge: TS-Edge01
Local IP Address: 192.168.100.202
SP provided configuration:

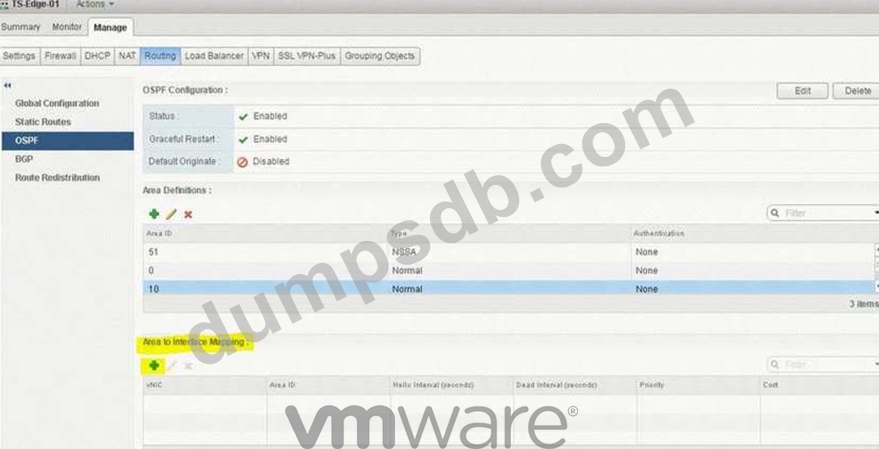

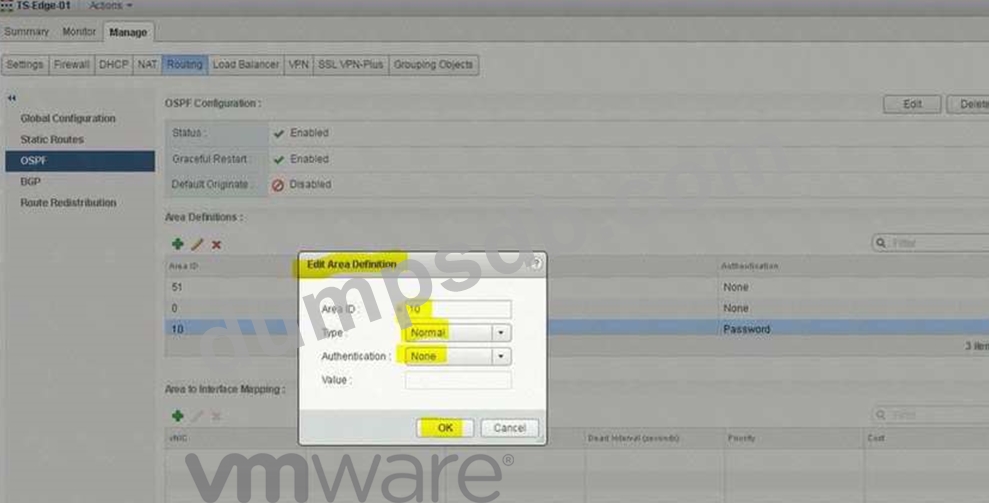

Area ID: 10
Type: Normal
Authentication: None

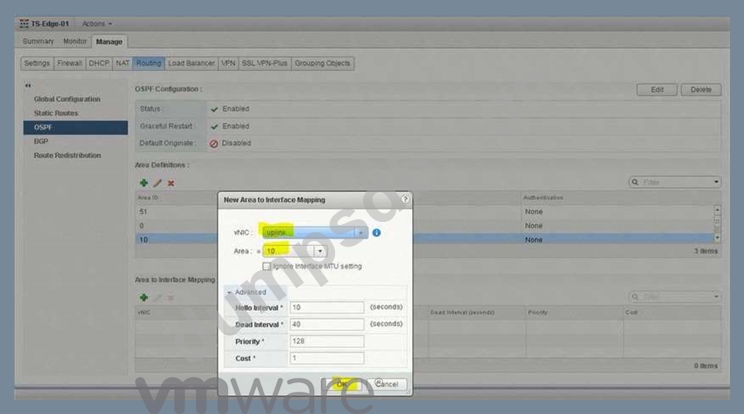

Ensure the OSPF session is established.
Ensure all learned OSPF routes appear.
Copy OSPF routing table information and output to file on ControlCenter Desktop named TS-Edge-01_OSPF.txt NOTE:
Do not use static route or configure Default Gateway on any Edge.
HOL LAB for Practice:
See the explanation part for complete solution.

Correct Answer:

SOLUTION:

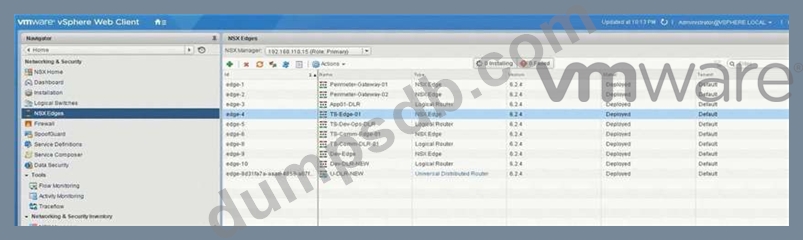

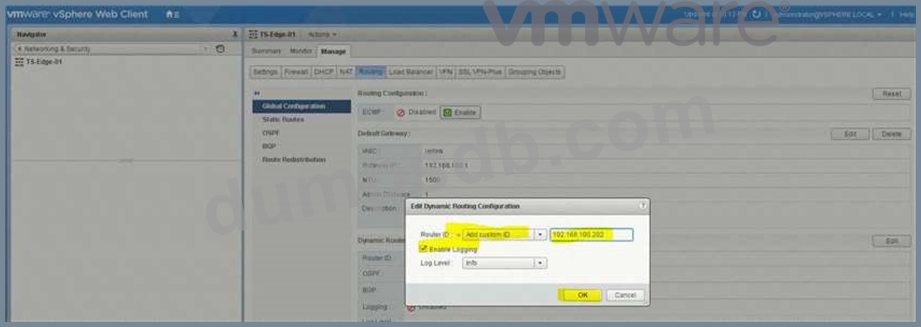

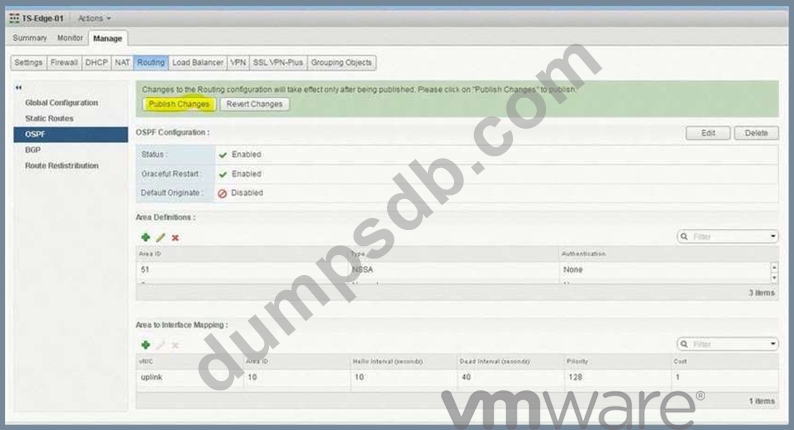

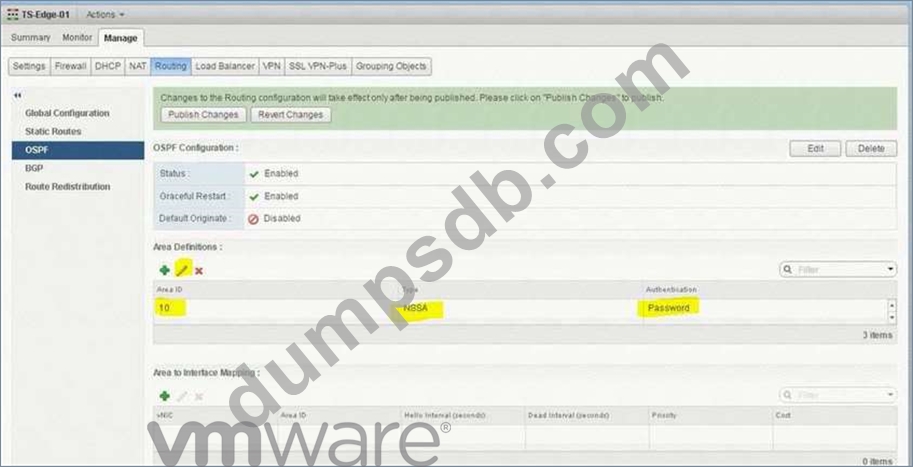

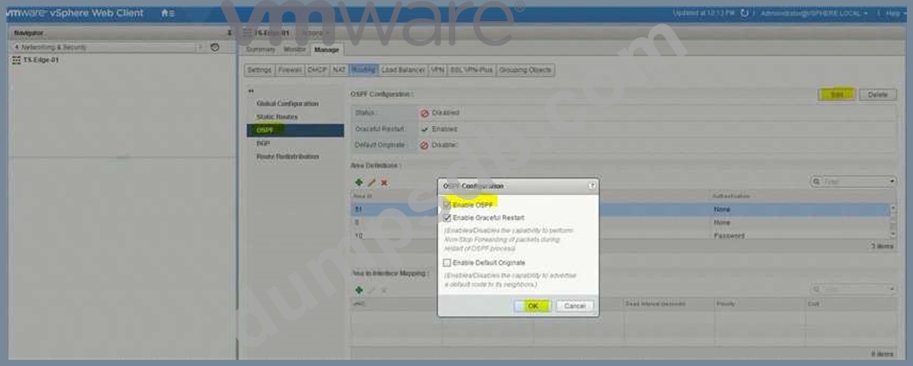

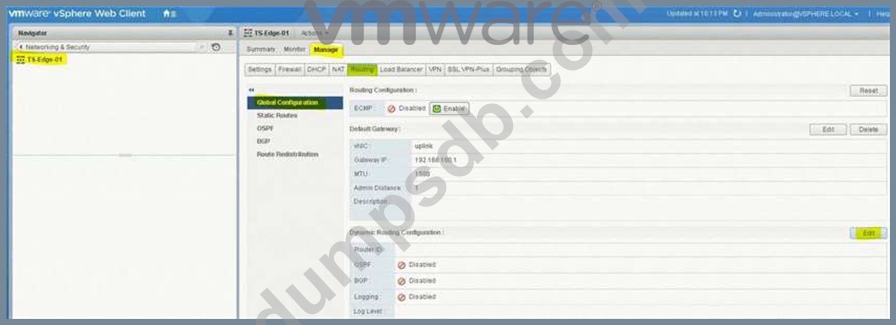

(1) select Home. select Network & Security. select NsX Edge. select Nsx Manager-a.
select TS-EDGE-01. select manage tab and select settings.
select interface. check ip address and mask of the vnic.

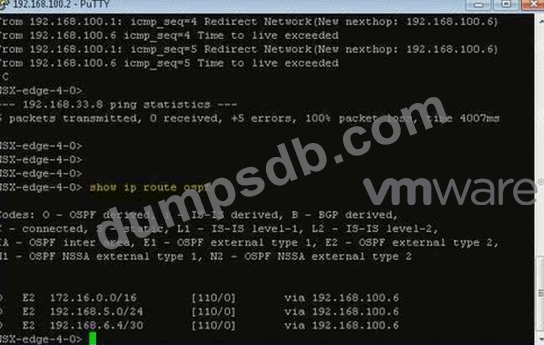

open putty. enter ip address 192.168.100.202.
enter command show ip route ospf. copy the ouput and save in a text file name TS-Edge-01.txt.

Copy and save OSPF route table in notepad.

Comment: *

Name: *

Email: *

Verification: *

In the previous scenario, vCenter vcsa-b.corp.local was configured for NSX. Now the hosts must be prepared for NSX and the initial VXLAN configuration should be completed.
Requirements:
vCenter: vcsa-01b.corp.local
Credentials: [email protected] / VMware1!
Cluster: Compute Cluster 1B
ESXi Hosts: esx-01b.corp.local, esx-02b.corp.local
VTEP Information:
VMKNic Teaming Policy: Fail Over
VLAN: 0
MTU: 1600
IP Pools for VTEP:
* Name: Compute_1B_VTEP_Pool-New
* Gateway: 192.168.230.1
* Prefix Length: 24
* Static IP Pool: 192.168.230.51 - 192.168.230.60
* Segment ID Pool: 6001-7000 - HOL 1903-01 Page 26-36
* VXLAN Span: Compute Cluster 1B - HOL 1903-01 Page 26-36
* Transport Zone: Local-Transport-Zone-B-New - HOL 1903-01 Page 26-36
* Host must be prepared for NSX
* Use provided information to complete the initial VXLAN configuration.
* The underlying physical network does not support multicast.
* Ensure that requirements are met:
* Create the IP Pool as given:
* Do the Host preparation.
* Create a Local Transport Zone as given. - HOL 1903-01 Page 26-36
* Create the segment ID as given. - HOL 1903-01 Page 26-36
HOL LAB for Practice:
http://docs.hol.vmware.com/hol-isim/HOL-2019/hol-1903-01-nsxinstall-p2.htm and LAB - HOL 1903-01 Page 26-36 See the explanation part for complete solution.

Correct Answer:

SOLUTION:
HOL 1903-01 Page 26-36
Login to vCenter b Web Client and from Networking and Security -> Installation -> select to SiteB NSX Manager -> Host Preparation and prepare the hosts as below:




Add Static Pool as per give details in the QUESTION
