Refer to the exhibit.

All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?

• A.Remove the static route on R1.
• B.Redistribute theR1 route to EIGRP
• C.Change the Administrative Distance of EIGRP to 5.
• D.Add a static route on R1 using the next hop of R3.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available. How is this issue resolved?

• A.Use the icmp-echo command to track both default routes
• B.Use the same AD for both default routes
• C.Start IP SLA by matching numbers for track and ip sla commands
• D.Start IP SLA by defining frequency and scheduling it

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to 172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?

• A.R2 does not have a route to the next hop, so R2 does not advertise the prefix to other clients.
• B.Route reflector setup requires full IBGP mesh between the routers.
• C.In route reflector setup, only classful prefixes are advertised to other clients.
• D.In route reflector setups, prefixes are not advertised from one client to another.

Comment: *

Name: *

Email: *

Verification: *

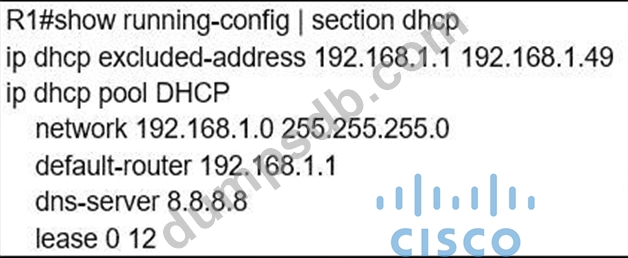

Refer to the exhibit.

Users report that IP addresses cannot be acquired from the DHCP server. The DHCP server is configured as shown. About 300 total nonconcurrent users are using this DHCP server, but none of them are active for more than two hours per day. Which action fixes the issue within the current resources?

• A.Configure the DHCP lease time to a smaller value
• B.Modify the subnet mask to the network 192.168.1.0 255.255.254.0 command in the DHCP pool
• C.Configure the DHCP lease time to a bigger value
• D.Add the network 192.168.2.0 255.255.255.0 command to the DHCP pool

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An administrator noticed that after a change was made on R1, the timestamps on the system logs did not match the clock. What is the reason for this error?

• A.The system clock is set incorrectly to summer-time hours.
• B.The keyword localtime is not defined on the timestamp service command.
• C.The NTP server is in a different time zone.
• D.An authentication error with the NTP server results in an incorrect timestamp.

Comment: *

Name: *

Email: *

Verification: *
