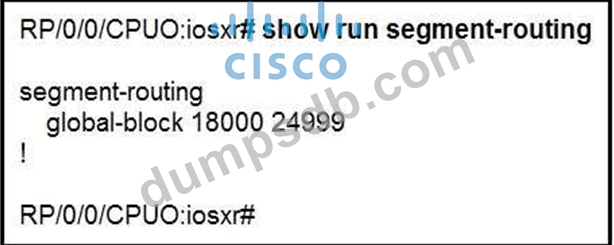

Refer to the exhibit. A network engineer implemented this segment routing configuration. Which statement about the output is true?

• A.This range conflicts with the segment routing local block range.
• B.The device must be reloaded for these ranges to be allocated and used.
• C.The default segment routing global block range is being used on this device.
• D.A nondefault segment routing global block range is being used on this device.

Comment: *

Name: *

Email: *

Verification: *

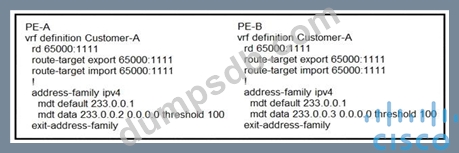

Refer to the exhibit.

Which tree does multicast traffic follow?

• A.MDT voice
• B.MDT default
• C.source tree
• D.shared tree

Comment: *

Name: *

Email: *

Verification: *

What are two characteristics of BGP confederations? (Choose two.)

• A.The member AS numbers used within the confederation are visible from outside the confederation.
• B.Intra-Confederation EBGP neighbors must be directly connected or ebgp-multihop must be configured.
• C.An Intra-Confederation EBGP session behaves like an EBGP session when propagating routing updates.
• D.All routers within the BGP confederation must support BGP confederations.

Comment: *

Name: *

Email: *

Verification: *

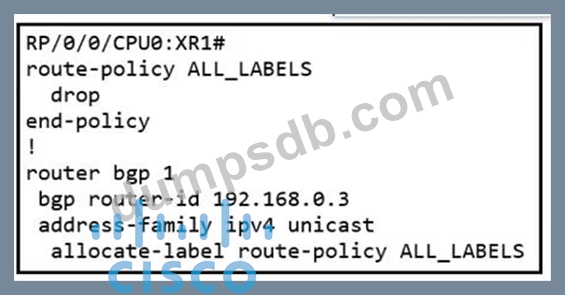

Refer to the exhibit.

A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

• A.Reconfigure the route-policy ALL_LABELS to pass.
• B.Remove the allocate-labels command.
• C.Reconfigure the route-policy ALL_LABELS to match all after the drop.
• D.Remove the route policy and only configure "allocate-label".

Comment: *

Name: *

Email: *

Verification: *

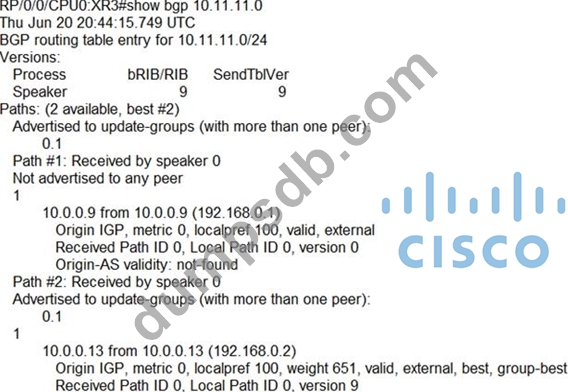

Refer to the exhibit.

A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of
10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

• A.weight of 0 on the prefix coming from 192.168.0.2
• B.weight of 100 on the prefix coming from 192.168.0.1
• C.lower local preference on the prefix coming from 192.168.0.2
• D.higher local preference on the prefix coming from 192.168.0.1
