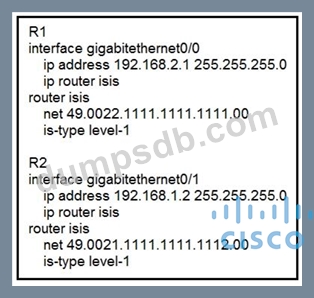

Refer to the exhibit.

Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)

• A.The two routers are in different areas
• B.The two routers have the same network ID
• C.The two routers have password mismatch issues
• D.The two routers are in different subnets
• E.The two routers are in the same area

Comment: *

Name: *

Email: *

Verification: *

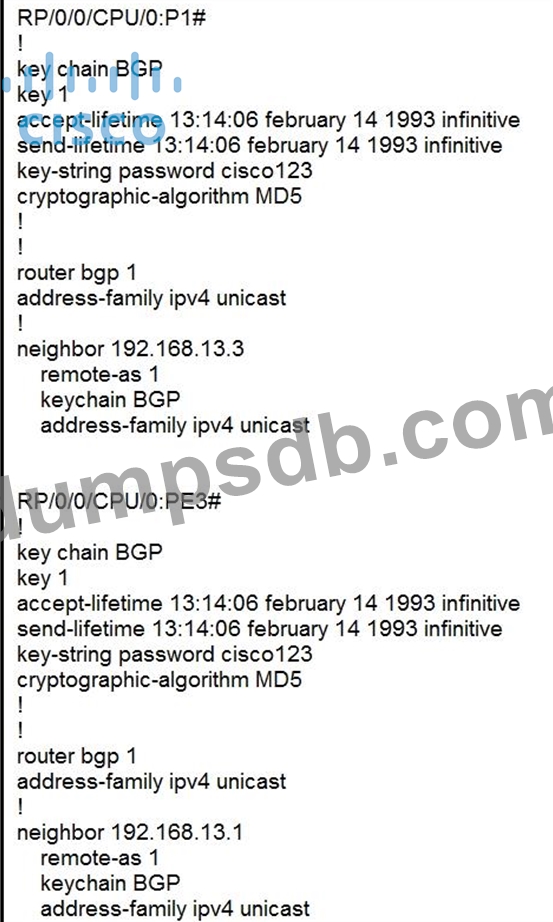

Refer to the exhibit.

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)

• A.Change MD5 to HMAC-SHA1-12
• B.Change MD5 to HMAC-ESP
• C.Change MD5 to SHA-1
• D.Change MD5 to HMAC-MD5
• E.Remove the send and accept lifetime under key 1

Comment: *

Name: *

Email: *

Verification: *

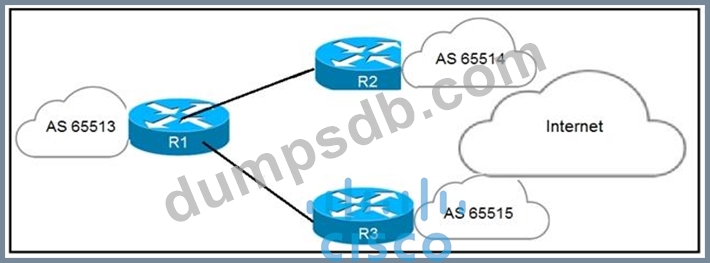

Refer to the exhibit.

An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?

• A.The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.
• B.The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.
• C.The MED attribute can be applied on R2 to influence R1 to use it as the primary path.
• D.The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.

Comment: *

Name: *

Email: *

Verification: *

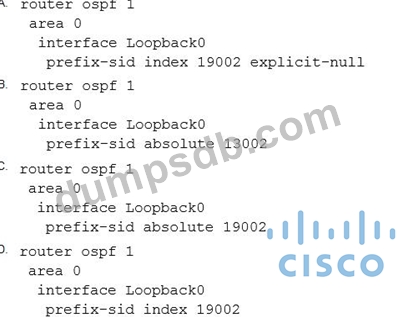

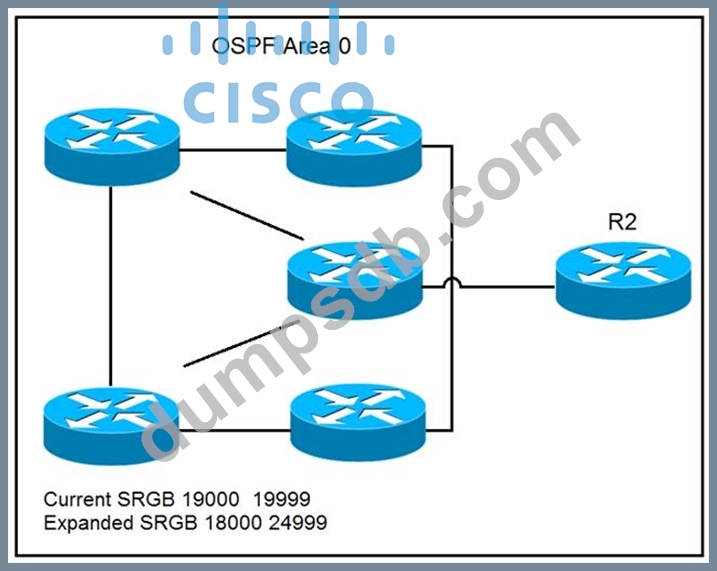

Refer to the exhibit.

A network operator wants to expand the segment routing global block in upcoming maintenance. The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain.
Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?

• A.Option A
• B.Option B
• C.Option D
• D.Option C

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Which task must you perform on interface g1/0/0 to complete the SSM implementation?

• A.configure OSPFv3
• B.enable CDP
• C.disable IGMP
• D.configure IGMPv3

Comment: *

Name: *

Email: *

Verification: *
