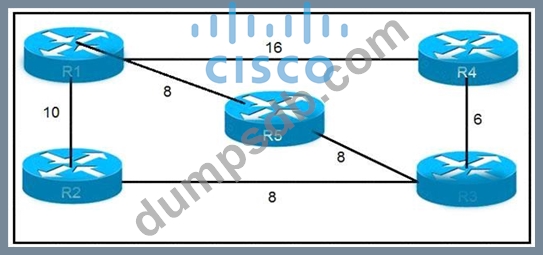

Refer to the exhibit.

An engineer has configured all routers in the environment to run IS-IS Level 1 and Level 2 routing. The engineer wants traffic from R1 to R5 to pass via R2. but IS-IS routing has calculated the best path via R4.
Which action corrects the problem?

• A.Configure routers R1, R2, and R5 for Level 1 routing only.
• B.Configure routers R1, R4, and R5 for Level 2 routing only.
• C.Set the link metric on R2 for the links from router R2 to routers R3 and R4 to 30 or more.
• D.Set the link metric for the link from router R1 to router R4 to 30 or more.

Comment: *

Name: *

Email: *

Verification: *

Which two statements about route reflectors are true? (Choose two.)

• A.Routes received from nonclient peers are reflected to route reflector clients as well as nonclient peers.
• B.Routes received from nonclient peers are reflected to route reflector cluster as well as OSPF peers.
• C.If a router received an iBGP route with the originator-ID attribute set to its own router ID, the route is discarded.
• D.Routes received from a route reflector client is reflected to other clients and nonclient peers.
• E.If a route reflector receives a route with a cluster-list attribute containing a different cluster ID, the route is discarded.

Comment: *

Name: *

Email: *

Verification: *

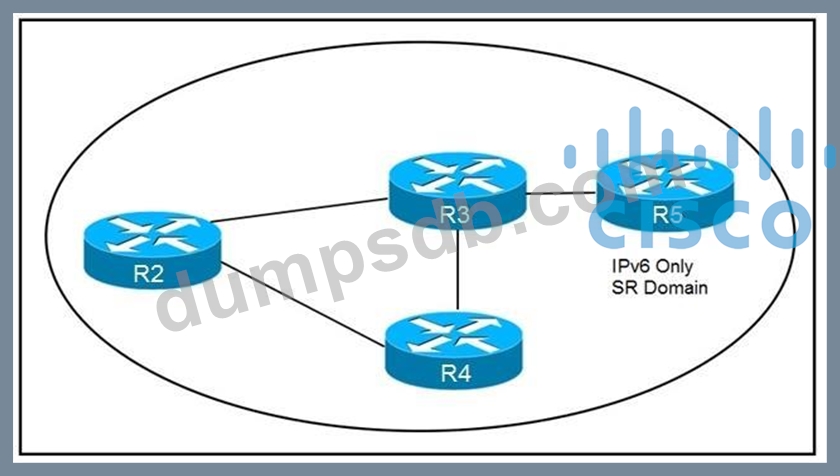

Refer to the exhibit. How are packets directed through the data plane when SRv6 is implemented?

• A.An ordered list of segments is encoded in a routing extension header
• B.The MPLS data plane is used to push labels onto IGP routes
• C.A stack of labels represents an ordered list of segments
• D.The packet is encapsulated with a header and trailer encoding the ordered list of segments

Comment: *

Name: *

Email: *

Verification: *

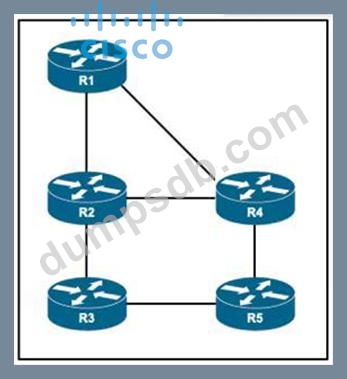

Refer to the exhibit

Which router does R1 install as an alternate next hop when trying to reach R3 if LFA is enabled?

• A.R4
• B.R5
• C.R3
• D.R2

Comment: *

Name: *

Email: *

Verification: *

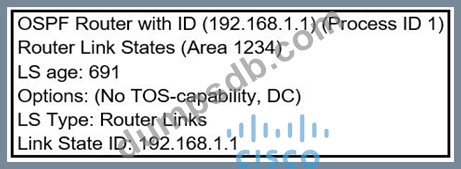

Refer to the exhibit. Which LSA type is indicated by this router output?

• A.type 1 LSA
• B.type 3 LSA
• C.type 2 LSA
• D.type 4 LSA
