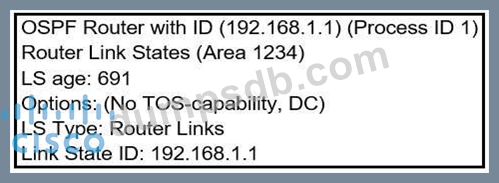

Refer to the exhibit. Which LSA type is indicated by this router output?

• A.type 1 LSA
• B.type 4 LSA
• C.type 3 LSA
• D.type 2 LSA

Comment: *

Name: *

Email: *

Verification: *

Which three methods can be used to reduce the full-mesh IBGP requirement in a service provider core network? (Choose three.)

• A.Disable the IBGP split-horizon rule
• B.Implement route reflectors
• C.Enable multi-protocol BGP sessions between all the PE routers
• D.Enable BGP synchronization
• E.Implement confederations
• F.Implement MPLS (LDP) in the core network on all the PE and P routers

Comment: *

Name: *

Email: *

Verification: *

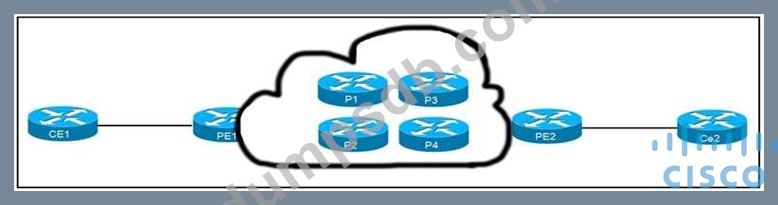

Refer to the exhibit. CE1 and CE2 cannot communicate through the service provider BGP peering is established between PE1 and PE2. IS-IS is the only routing protocol running in the service provider core. What step can be done to troubleshoot the issue?

• A.Switch the IGPs running in the core from IS-IS to OSPF to support a Cisco MPLS TE tunnel from PE1 to PE2.
• B.Configure BGP between CE and PE routers.
• C.Verify the MPLS LSPs.
• D.Confirm that IS-IS is running with metric-style narrow.

Comment: *

Name: *

Email: *

Verification: *

After an engineer configures BGP in R1, it starts receiving this message
*Jun 29 13:30:50.122: %BGP-5-ADJCHANGE: neighbor 192.168.10.1 Down User reset Jun 29 13:30:52.341: %BGP-3-NOTIFICATION: sent to neighbor 192.168.10.1 2/6 (unacceptable hold time) 0 bytes Which action makes the peering come back up again?

• A.Set up a minimum hold-down timer higher.
• B.Set up a hold-down timer higher.
• C.Make a soft reset to the peer.
• D.Set up a hello timer higher.

Comment: *

Name: *

Email: *

Verification: *

An engineer is troubleshooting slow performance issues on a customer's network after the last multicast configuration change was applied on it. While checking the running configuration on the router the engineer notices there are many ip igmp join-group commands applied on several interfaces of the router which caused the high CPU utilization usage.
What action must the engineer take to solve this issue?

• A.Configure ip igmp static-group command on all interfaces
• B.Remove ip igmp join-group command on all unnecessary interfaces
• C.Remove unnecessary members from the IGMP group
• D.Configure all router interfaces to be process-switched by increasing the query interval
