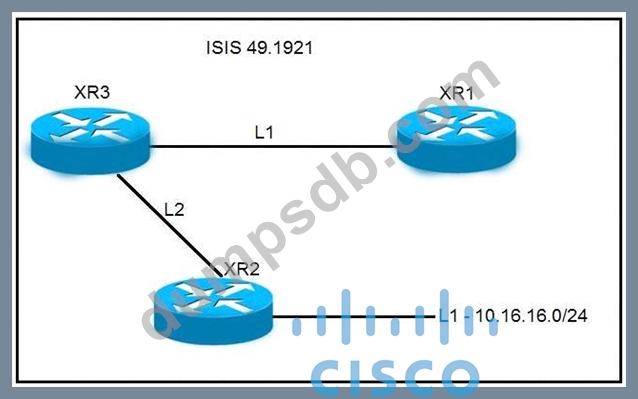

Refer to the exhibit.

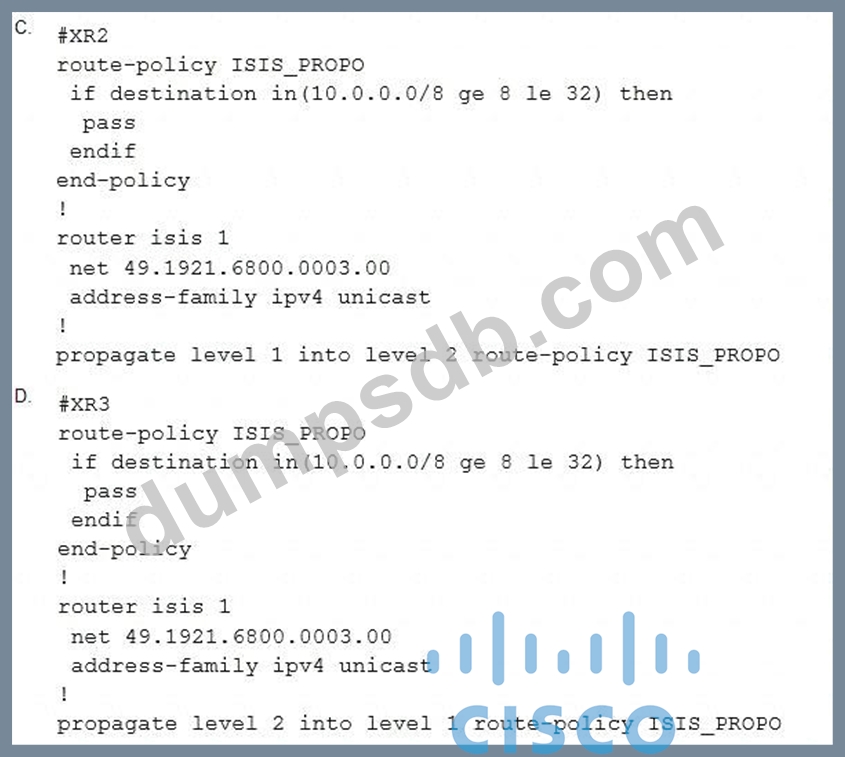

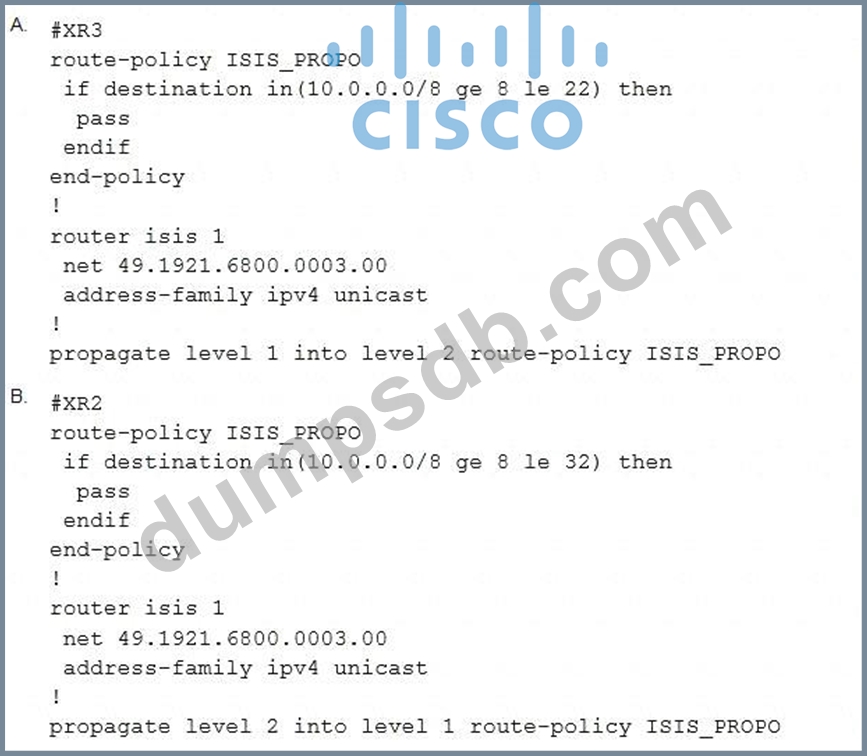

A network operator must inject a Level 1 route from XR2 (10.16.16.0/24) into the ISIS topology. Which configuration allows the injection in a way that XR3 and XR1 have a valid and working route for 10.16.16.0/24?

• A.Option C
• B.Option D
• C.Option A
• D.Option B

Comment: *

Name: *

Email: *

Verification: *

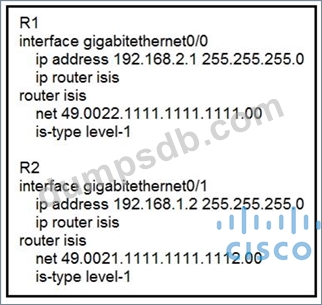

Refer to the exhibit.

Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)

• A.The two routers are in different subnets
• B.The two routers are in the same area
• C.The two routers have password mismatch issues
• D.The two routers are in different areas
• E.The two routers have the same network ID

Comment: *

Name: *

Email: *

Verification: *

A network engineer for an ISP wants to reduce the number of iBGP adjacencies.
A merge is taking place with another ISP network, so the network engineer needs to make both ASNs look like a single network for the Internet.
Which BGP technology is most suitable?

• A.route reflector
• B.confederation
• C.peer group
• D.clustering

Comment: *

Name: *

Email: *

Verification: *

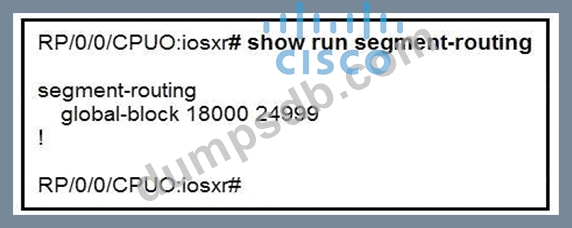

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement about the output is true?

• A.A nondefault segment routing global block range is being used on this device.
• B.The default segment routing global block range is being used on this device.
• C.The device must be reloaded for these ranges to be allocated and used.
• D.This range conflicts with the segment routing local block range.

Comment: *

Name: *

Email: *

Verification: *

What is the characteristic of enabling segment routing for IGPs?

• A.Segment routing must first be enabled globally and then under the routing process.
• B.Segment routing must be enabled only globally.
• C.Segment routing must first be enabled under the routing process and then globally.
• D.Segment routing must be enabled only under the routing process.
