Refer to the exhibit. A network engineer is troubleshooting a Cisco Nexus 5000 Series Switch. The interface between the server and the switch is nonoperational and is expected to operate at 10 Gbps. The drain rate of the interface is 3 Mbps. Which action resolves the issue?

• A.Configure pause error-disable recovery
• B.Enable link level pause on the interface
• C.Reset priority flow counters
• D.Set priority flow control pause

Comment: *

Name: *

Email: *

Verification: *

An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

• A.shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2
• B.shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2
• C.shell=Security_Domain_1/Read_Role_1|Read_Role_2
• D.shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. The EEM script is applied in the default VDC to collect the outputs during high CPU utilization on the Cisco Nexus 7000 Series Switch for all VDCs. Which configuration set must be added to the script to fix the issue?

• A.switch(config-applet)# event snmp 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val
  50 poll-interval 1
  switch(config-applet)# action 0.2 cli enable
  switch(config-applet)# action 0.5 cli switchto vdc Core
  switch(config-applet)# action 0.8 cli switchto vdc Distribution
• B.switch(config-applet)# event snmp 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val
  50 poll-interval 1
  switch(config-applet)# action 0.2 cli config t
  switch(config-applet)# action 0.5 cli switchto vdc Core
  switch(config-applet)# action 0.8 cli switchto vdc Distribution
• C.switch(config-applet)# event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1 switch(config-applet)# action 0.2 cli config t switch(config-applet)# action 0.5 cli switchto vdc Core switch(config-applet)# action 0.8 cli switchto vdc Distribution
• D.switch(config-applet)# event snmp oid 1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 get-type exact entry-op ge entry-val 50 poll-interval 1 switch(config-applet)# action 0.2 cli enable switch(config-applet)# action 0.5 cli switchto vdc Core switch(config-applet)# action 0.8 cli switchto vdc Distribution

Comment: *

Name: *

Email: *

Verification: *

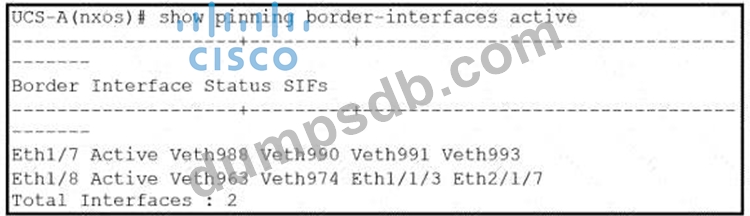

Refer to the exhibit.

A network engineer traces the packet flow from the Veth991 of a blade server toward the core switch. The switch reports performance issues What is the role of the interface Eth1/7?

• A.IOM network interface
• B.fabric interconnect uplink interface
• C.IOM host interface
• D.server interface

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. A network engineer deploys scripts to the guest shell of a Cisco Nexus switch. The scripts fail to operate properly due to the limited CPU and file system resources that are assigned by default to the guest shell. The engineer allocated more memory and disk space to the guest shell, but the application continues to fail. Which action resolves the issue?

• A.Disable and enable bash shell
• B.Redeploy the bash shell
• C.Upgrade the guest shell
• D.Reboot the guest shell
