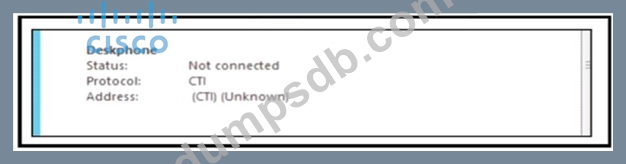

Refer to the exhibit.

Refer to the exhibit A collaboration engineer is troubleshooting a Cisco Jabber for Windows client issue. The end user is reporting that they cannot control the desk phone from the Cisco Jabber client Which action must the engineer take to resolve this issue?

• A.Add the "Allow control of the device from the CTI" option under the client services profile configuration page
• B.Add the "Allow control of the device from the CTI" option under the desk phone configuration page
• C.Associate the User with the desk phone under the user configuration page on Cisco UCM
• D.Select "Primary Line" under the user configuration page on Cisco UCM

Comment: *

Name: *

Email: *

Verification: *

An administrator is setting up the Cisco Unified IM and Presence on-premises high availability feature and wants the Server Recovery Manager to initiate failover after 90 seconds. However, failover is happening after 60 seconds How is this issue corrected?

• A.Change critical service delay to 90 seconds.
• B.Change peer Heartbeat Timeout to 90 seconds.
• C.Change keep Alive (Heartbeat) Timeout to 90 seconds.
• D.Change Keep Alive (Heartbeat) Interval to 90 seconds

Comment: *

Name: *

Email: *

Verification: *

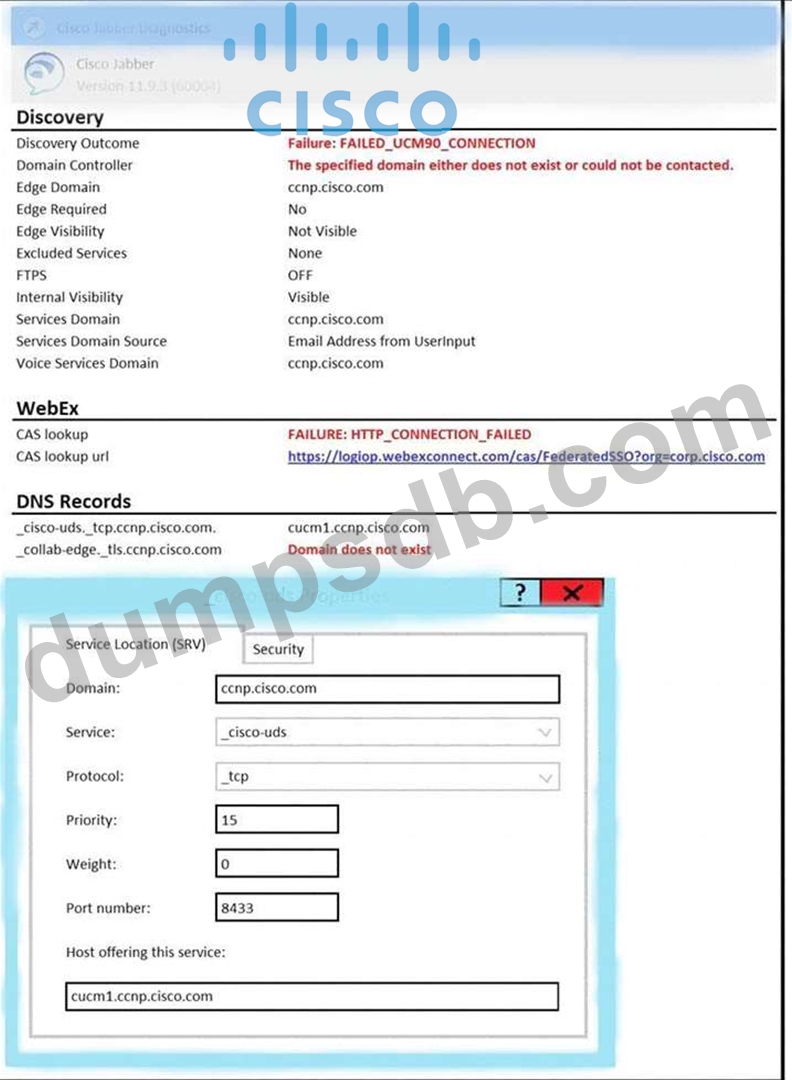

Refer to the exhibit.

Users connected to the internal network report a "Cannot communicate with the server" error while trying to log in to Cisco Jabber using auto service discovery. The Jabber diagnostics and the SRV record configuration are as shown in the exhibit. The host cucm1.ccnp.cisco.com is correctly resolved by the user desktops with the Cisco Unified Communications Manager IP address. Why is the user not able to log in?

• A.The domain ccnp.cisco.com does not exist on the DNS server.
• B.SRV protocol is not set up correctly. It should be _tls instead of _tcp.
• C.Marking weight as 0 on the SRV record makes it inactive, so Jabber cannot discover the Cisco Unified CM.
• D.The port specified on the SRV record is wrong.

Comment: *

Name: *

Email: *

Verification: *

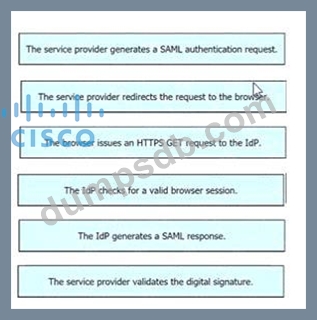

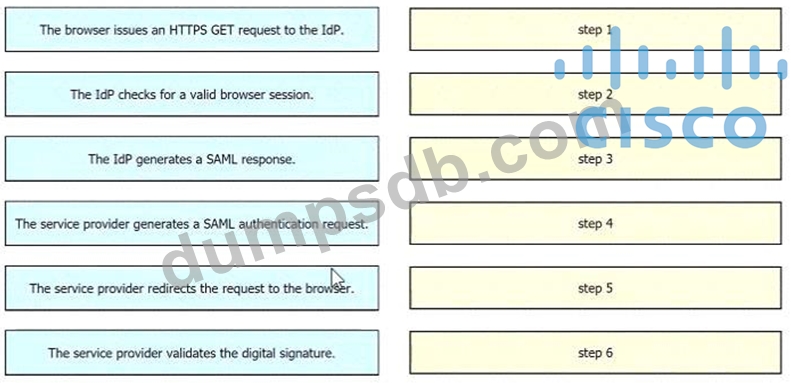

Drag and drop the steps of the SAML SSO process from the left into the order on the right.

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

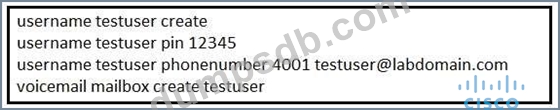

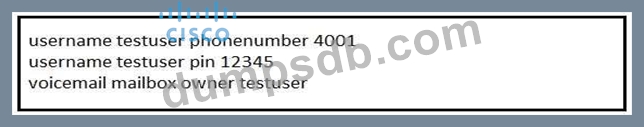

An engineer must configure a test user mailbox in a newly deployed Cisco Unity Express module. Which console command set reflects the correct configuration in this scenario?

• A.
• B.
• C.
• D.
