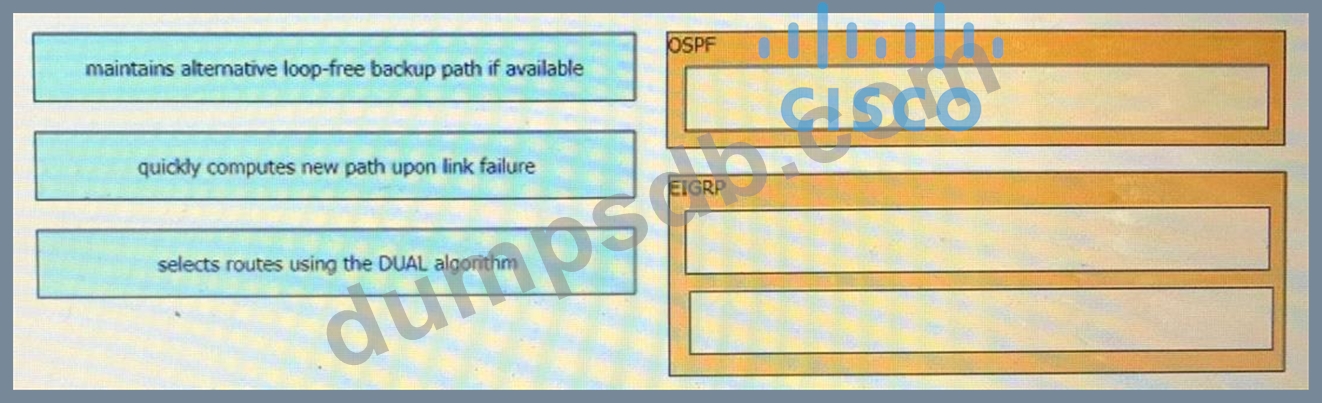

Drag and drop the characteristics from the left onto the routing protocols they describe on the right.

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

When using TLS for syslog, which configuration allows for secure and reliable transportation of messages to its default port?

• A.logging host 10.2.3.4 vrf mgmt transport tcp port 6514
• B.logging host 10.2.3.4 vrf mgmt transport udp port 6514
• C.logging host 10.2.3.4 vrf mgmt transport tcp port 514
• D.logging host 10.2.3.4 vrf mgmt transport udp port 514

Comment: *

Name: *

Email: *

Verification: *

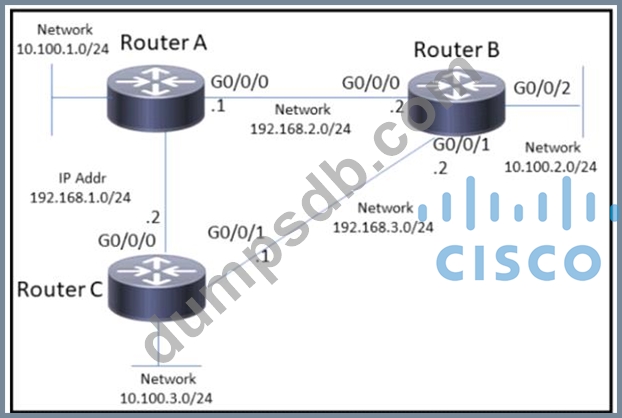

Refer to the exhibit. A network engineer must block Telnet traffic from hosts in the range of 10.100 2.248 to 10.100.2 255 to the network 10.100.3.0 and permit everything else. Which configuration must the engineer apply'?

A)

B)

• A.Option A
• B.Option C
• C.Option D
• D.Option B

Comment: *

Name: *

Email: *

Verification: *

Reter to the exhibit.

Refer to the exhibit. What is achieved by this code?

• A.It deletes the loopback interface
• B.It renames the loopback interface
• C.It unshuts the loopback interface
• D.It displays the loopback interface

Comment: *

Name: *

Email: *

Verification: *

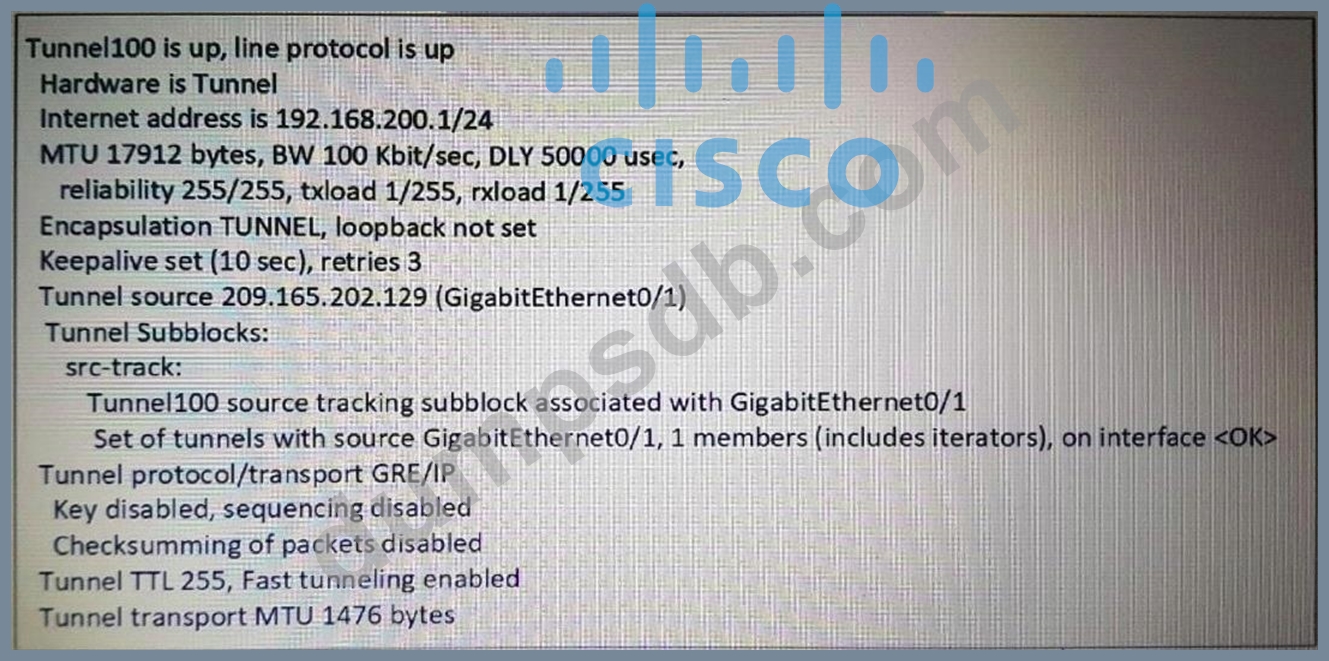

Refer to the exhibit.

A network engineer configures a GRE tunnel and enters the show Interface tunnel command. What does the output confirm about the configuration?

• A.The physical interface MTU is 1476 bytes.
• B.The tunnel mode is set to the default.
• C.The keepalive value is modified from the default value.
• D.Interface tracking is configured.

Comment: *

Name: *

Email: *

Verification: *
