Drag and drop the characteristics from the left onto the routing protocols they describe on the right.

Correct Answer:

Explanation

Comment: *

Name: *

Email: *

Verification: *

In a traditional 3 tier topology, an engineer must explicitly configure a switch as the root bridge and exclude it from any further election process for the spanning-tree domain. Which action accomplishes this task?

• A.Configure the spanning-tree priority to 32768
• B.Configure root guard and portfast on all access switch ports.
• C.Configure BPDU guard in all switch-to-switch connections.
• D.Configure the spanning-tree priority equal to 0.

Correct Answer: B

Explanation

Root guard does not allow the port to become a STP root port, so the port is always STP-designated. If a better BPDU arrives on this port, root guard does not take the BPDU into account and elect a new STP root. Instead, root guard puts the port into the root-inconsistent STP state which is equal to a listening state. No traffic is forwarded across this port.
Reference: http://www.cisco.com/c/en/us/support/docs/lan-switching/spanning-tree-protocol/10588-74.html

Comment: *

Name: *

Email: *

Verification: *

Drag and drop the description from the left onto the correct QoS components on the right.

Correct Answer:

Explanation
Traffic Policing: Drops excessive Traffic, causes TCP retransmissions, introduce no delay/jitter Shaping: buffers, excessive traffic, introduce delay and jitter, typically delays, rather than drops traffic

Comment: *

Name: *

Email: *

Verification: *

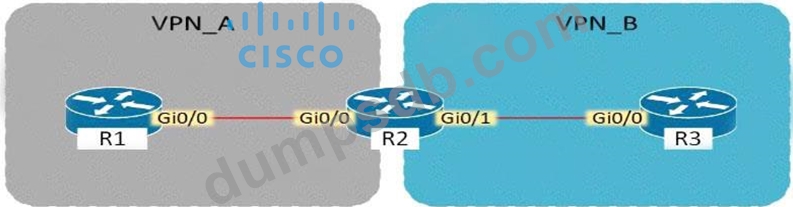

Refer to the exhibit.

Assuming that R is a CE router, which VRF is assigned to Gi0/0 on R1?

• A.VRF VPN_B
• B.Default VRF
• C.Management VRF
• D.VRF VPN_A

Comment: *

Name: *

Email: *

Verification: *

An engineer runs the sample code, and the terminal returns this output. Which change to the sample code corrects this issue?

• A.Change the JSON method from load() to loads().
• B.Enclose null in the test_json string in double quotes
• C.Use a single set of double quotes and condense test_json to a single line
• D.Call the read() method explicitly on the test_json string

Correct Answer: A
