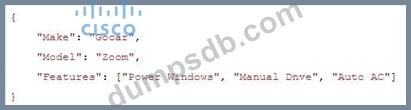

Refer to the exhibit.

What is the JSON syntax that is formed from the data?

• A.Make":'Gocar, "Model': "Zoom", "Features": ["Power Windows", "Manual Dnve", "Auto AC"]}
• B.'Make ": "Gocar1, "Model": "Zoom", "Features": ["Power Windows", "Manual Drive", "Auto AC"]
• C.{"Make": Gocar, "Model": Zoom, "Features": Power Windows, Manual Drive, Auto AC}
• D.("Make":[ "Gocar", "Model": "Zoom"], Features": ["Power Windows", "Manual Drive", "Auto AC"]}

Correct Answer: A

Explanation
JSON syntax structure: + uses curly braces {} to hold objects and square brackets [] to hold arrays + JSON data is written as key/value pairs + A key/value pair consists of a key (must be a string in double quotation marks ""), followed by a colon :, followed by a value. For example: "name":"John" + Each key must be unique + Values must be of type string, number, object, array, boolean or null + Multiple key/value within an object are separated by commas , JSON can use arrays. Arrays are used to store multiple values in a single variable. For example:
{
"name":"John",
"age":30,
"cars":[ "Ford", "BMW", "Fiat"]
}
In the above example, "cars" is an array which contains three values "Ford", "BMW" and "Fiat".
Note: Although our correct answer above does not have curly braces to hold objects but it is still the best choice here.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Refer to the exhibit. Which command filters the ERSPAN session packets only to interface GigabitEthernet1?

• A.source ip 10.10.10.1
• B.destination ip 10.10.10.1
• C.source interface gigabitethernet1 ip 10.10.10.1
• D.filter access-group 10

Comment: *

Name: *

Email: *

Verification: *

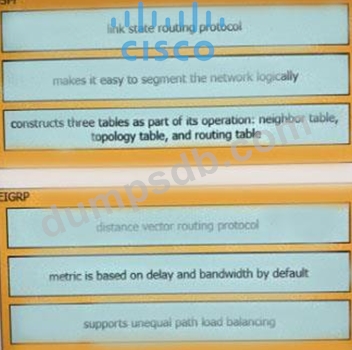

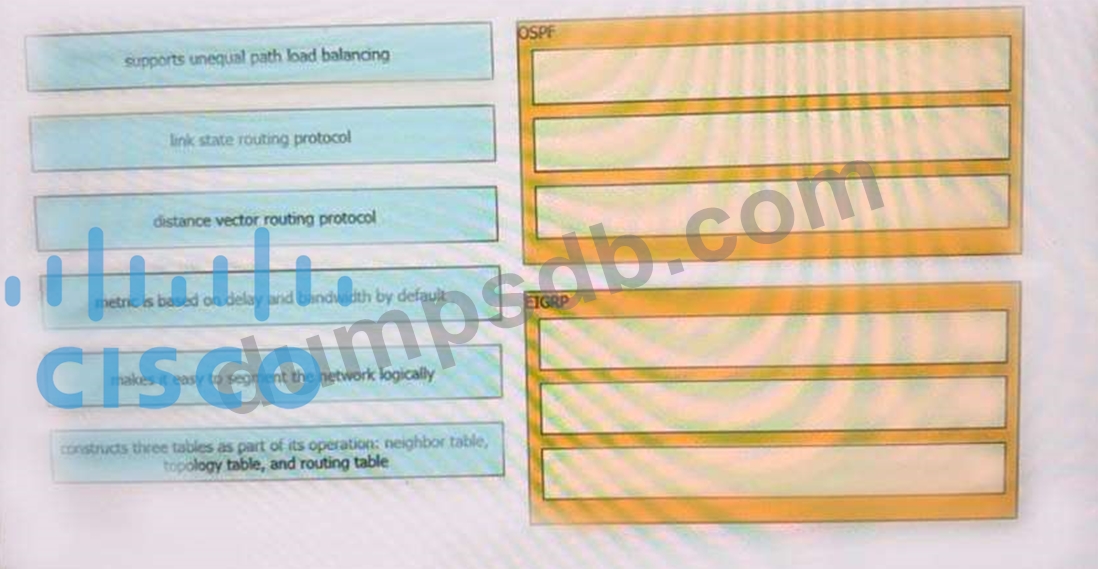

Drag the drop the description from the left onto the routing protocol they describe on the right.

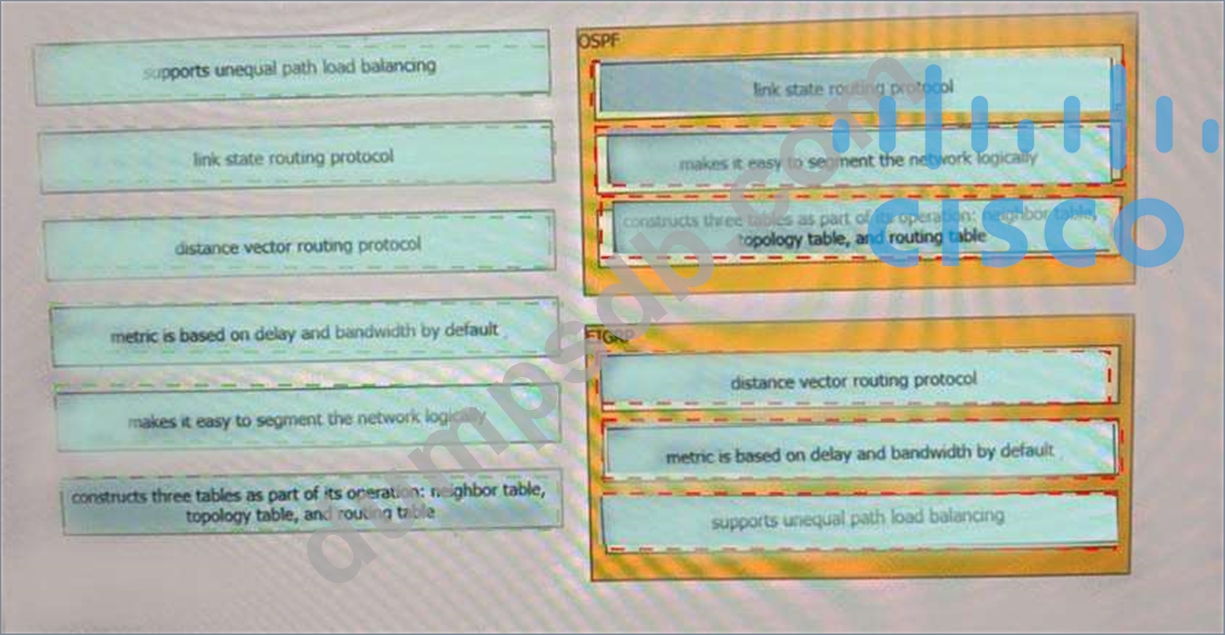

Correct Answer:

Explanation

Comment: *

Name: *

Email: *

Verification: *

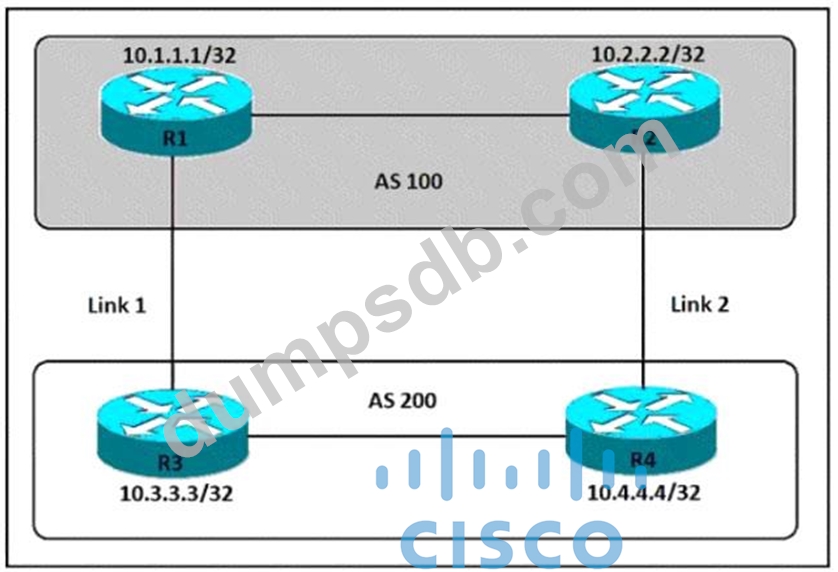

Refer to the exhibit.

An engineer must ensure that all traffic leaving AS 200 will choose Link 2 as the exit point. Assuming that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers, which configuration accomplish task?

• A.R4(config-router)bgp default local-preference 200
• B.R3(config-router)neighbor 10.1.1.1 weight 200
• C.R3(config-router)bgp default local-preference 200
• D.R4(config-router)nighbor 10.2.2.2 weight 200

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An engineer must ensure that all traffic leaving AS 200 will choose Link 2 as an entry point. Assuming that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers, which configuration accomplish task?

• A.Option C
• B.Option D
• C.Option B
• D.Option A
