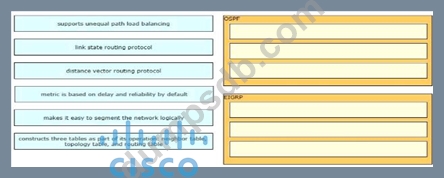

Drag and drop the characteristics from the left onto the correct routing protocol types on the right.

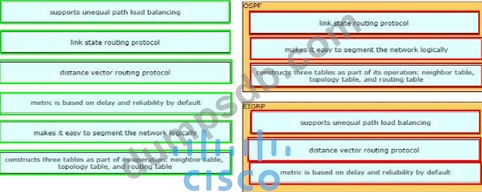

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

Which feature is supported by EIGRP but is not supported by OSPF?

• A.equal-cost load balancing
• B.route filtering
• C.unequal-cost load balancing
• D.route summarization

Comment: *

Name: *

Email: *

Verification: *

During deployment, a network engineer notices that voice traffic is not being tagged correctly as it traverses the network. Which COS to DSCP map must be modified to ensure that voice traffic is treated properly?

• A.COS of 5 to DSCP 46
• B.COS of 7 to DSCP 48
• C.COS of 6 to DSCP 46
• D.COS of 3 to DSCP of 26

Comment: *

Name: *

Email: *

Verification: *

Which entity is responsible for maintaining Layer 2 isolation between segments In a VXLAN environment?

• A.switch fabric
• B.VTEP
• C.VNID
• D.host switch

Correct Answer: C

Explanation

VXLAN uses an 8-byte VXLAN header that consists of a 24-bit VNID and a few reserved bits. The VXLAN header together with the original Ethernet frame goes in the UDP payload. The 24-bit VNID is used to identify Layer 2 segments and to maintain Layer 2 isolation between the segments.
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco

Comment: *

Name: *

Email: *

Verification: *

Which two statements about HSRP are true? (Choose two.)

• A.Its virtual MAC is 0000.0C07.Acxx.
• B.Its multicast virtual MAC is 0000.5E00.01xx.
• C.Its default configuration allows for pre-emption.
• D.It supports tracking.
• E.It supports unique virtual MAC addresses.
