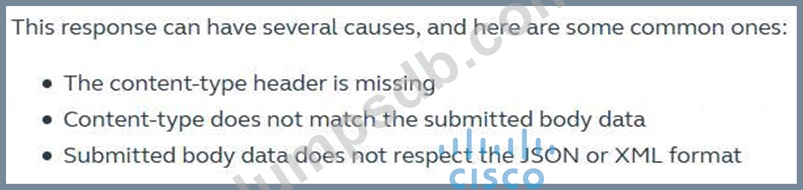

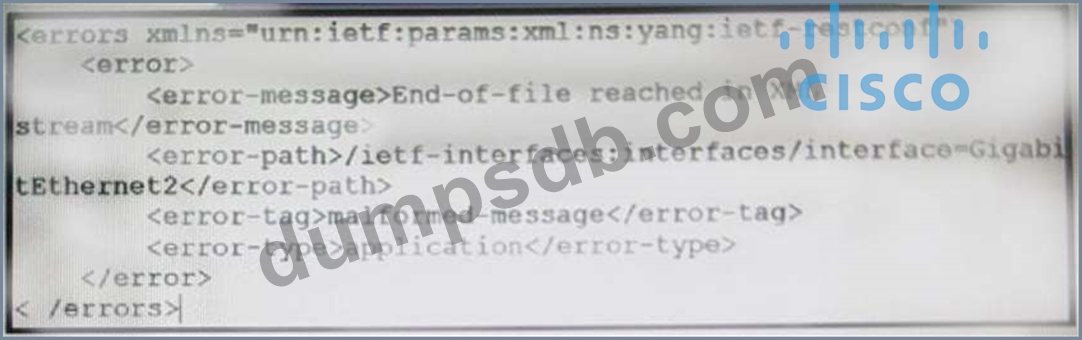

Refer to the exhibit. An engineer is using XML in an application to send information to a RESTCONF-enabled device. After sending the request, the engineer gets this response message and a HTTP response code of 400. What do these responses tell the engineer?

• A.The Accept header sent was application/xml
• B.POST was used instead of PUT to update
• C.The Content-Type header sent was application/xml.
• D.JSON body was used

Correct Answer: C

Explanation

Comment: *

Name: *

Email: *

Verification: *

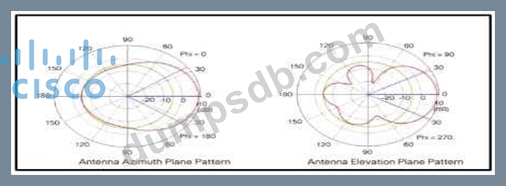

Refer to the exhibit. Which type of antenna do the radiation patterns present?

• A.Patch
• B.Omnidirectional
• C.Yagi
• D.Dipole

Correct Answer: A

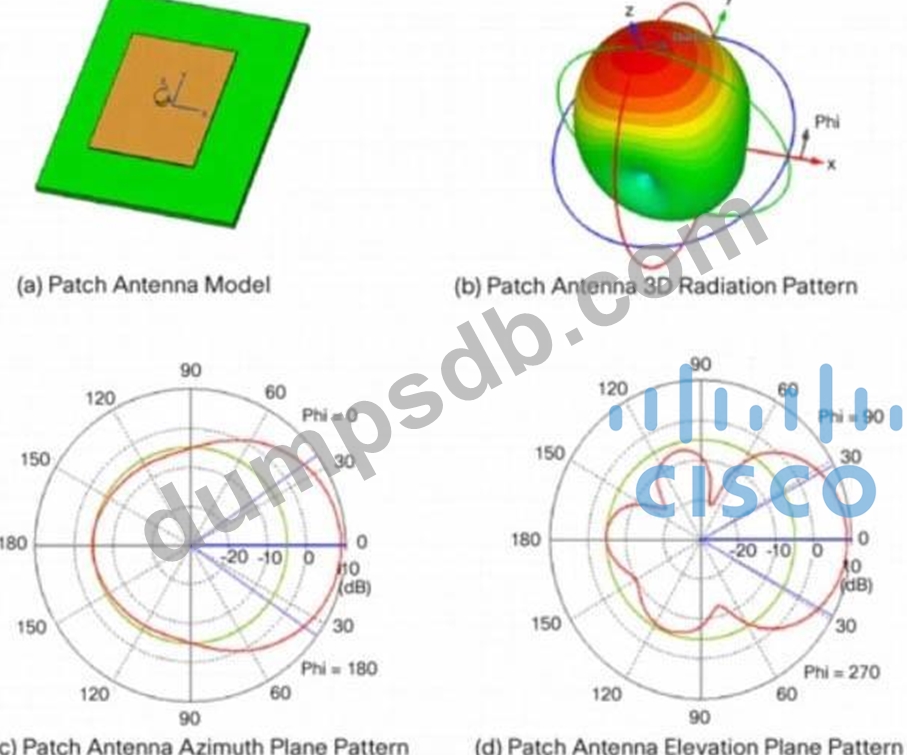

A patch antenna, in its simplest form, is just a single rectangular (or circular) conductive plate that is spaced above a ground plane. Patch antennas are attractive due to their low profile and ease of fabrication.
The azimuth and elevation plane patterns are derived by simply slicing through the 3D radiation pattern. In this case, the azimuth plane pattern is obtained by slicing through the x-z plane, and the elevation plane pattern is formed by slicing through the y-z plane. Note that there is one main lobe that is radiated out from the front of the antenna. There are three back lobes in the elevation plane (in this case), the strongest of which happens to be 180 degrees behind the peak of the main lobe, establishing the front-to-back ratio at about 14 dB. That is, the gain of the antenna 180 degrees behind the peak is 14 dB lower than the peak gain.

Again, it doesn't matter if these patterns are shown pointing up, down, to the left or to the right.
That is usually an artifact of the measurement system. A patch antenna radiates its energy out from the front of the antenna. That will establish the true direction of the patterns.
Reference: https://www.cisco.com/c/en/us/products/collateral/wireless/aironet-antennas- accessories/prod_white_paper0900aecd806a1a3e.html

Comment: *

Name: *

Email: *

Verification: *

A customer wants to provide wireless access to contractors using a guest portal on Cisco ISE. The portal Is also used by employees A solution is implemented, but contractors receive a certificate error when they attempt to access the portal Employees can access the portal without any errors. Which change must be implemented to allow the contractors and employees to access the portal?

• A.install a trusted third-party certificate on the contractor devices.
• B.Install an internal CA signed certificate on the Cisco ISE
• C.Install an Internal CA signed certificate on the contractor devices
• D.Install a trusted third-party certificate on the Cisco ISE.

Comment: *

Name: *

Email: *

Verification: *

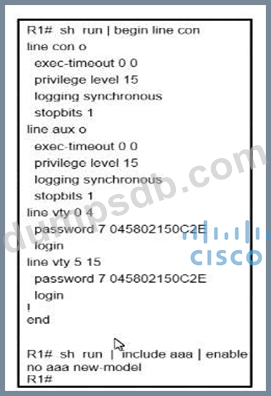

Refer to the exhibit.

Which privilege level is assigned to VTY users?

• A.1
• B.7
• C.13
• D.15

Comment: *

Name: *

Email: *

Verification: *

Which controller is the single plane of management for Cisco SD-WAN?

• A.vSmart
• B.vBond
• C.vEdge
• D.vManage
