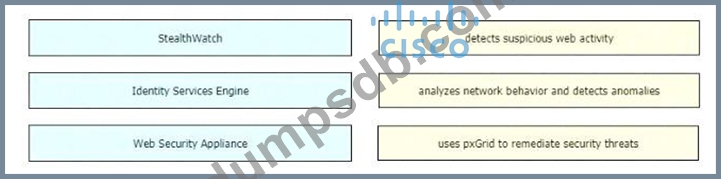

Drag and drop the solutions that comprise Cisco Cyber Threat Defense from the left onto the objectives they accomplish on the right.

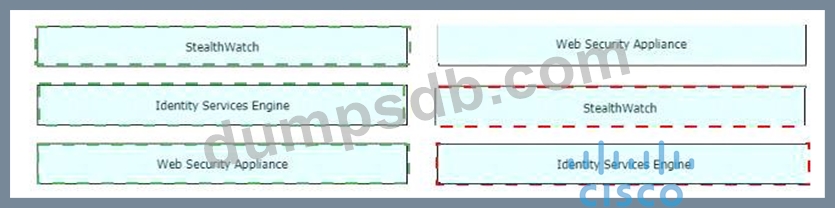

Correct Answer:

Explanation
Graphical user interface, application Description automatically generated with medium confidence

Comment: *

Name: *

Email: *

Verification: *

A wireless consultant is designing a high-density wireless network for a lecture hall for 1000 students Which antenna type is recommended for this environment?

• A.sector antenna
• B.dipole antenna
• C.parabolic dish
• D.omnidirectional antenna

Correct Answer: D

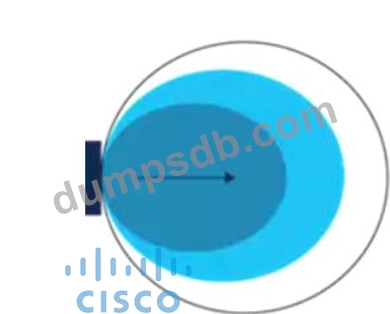

Directional antennas Directional antennas come in many different styles and shapes. An antenna does not offer any added power to the signal; it simply redirects the energy it receives from the transmitter. By redirecting this energy, it has the effect of providing more energy in one direction and less energy in all other directions. As the gain of a directional antenna increases, the angle of radiation usually decreases, providing a greater coverage distance but with a reduced coverage angle. Directional antennas include patch antennas and parabolic dishes. Parabolic dishes have a very narrow RF energy path, and the installer must be accurate in aiming these types of antennas at each other.

Reference:

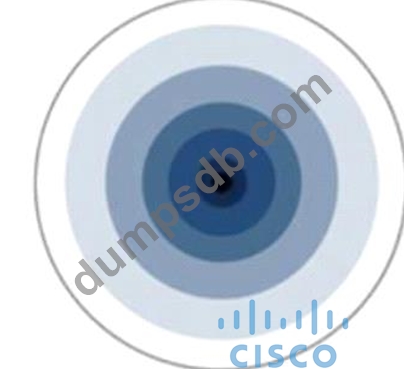

Omnidirectional antennas
An omnidirectional antenna is designed to provide a 360-degree radiation pattern. This type of antenna is used when coverage in all directions from the antenna is required. The standard 2.14-dBi "rubber duck" is one style of omnidirectional antenna.
Omnidirectional antenna

-> Therefore Omnidirectional antenna is best suited for a high-density wireless network in a lecture hall.

Comment: *

Name: *

Email: *

Verification: *

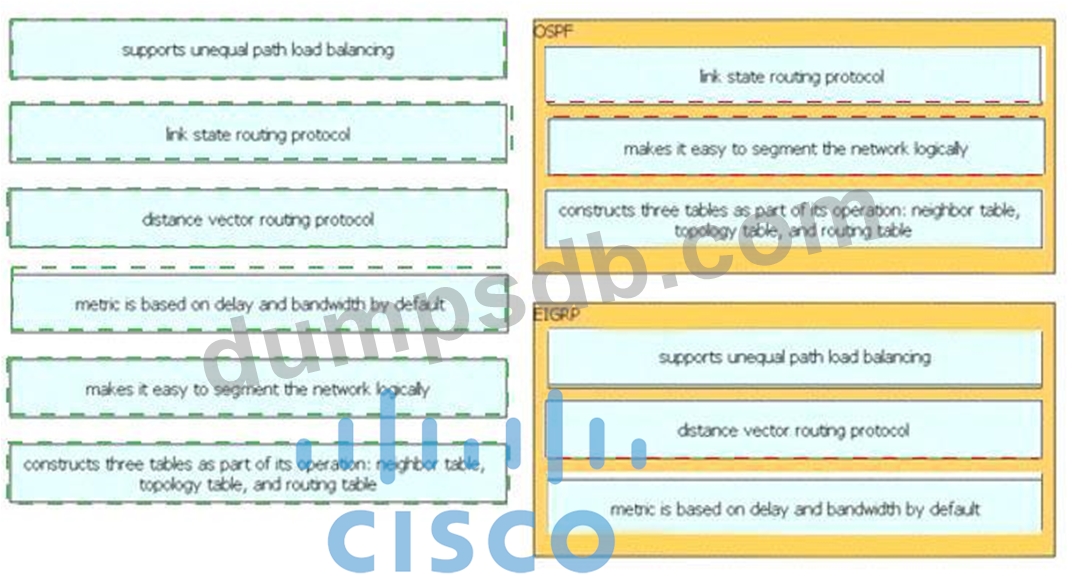

Drag and drop the characteristics from the left onto the routing protocols they describe on the right.

Correct Answer:

Explanation
Diagram Description automatically generated

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

These commands have been added to the configuration of a switch. Which command flags an error If It is added to this configuration?

• A.monitor session 1 source interface port-channel 6
• B.monitor session 1 source vlan 10
• C.monitor session 1 source interface FastEthernet0/1 rx
• D.monitor session 1 source interface port-channel 7, port-channel 8

Correct Answer: B

RSPAN consists of at least one RSPAN source session, an RSPAN VLAN, and at least one RSPAN destination session. You separately configure RSPAN source sessions and RSPAN destination sessions on different network devices. To configure an RSPAN source session on a device, you associate a set of source ports or source VLANs with an RSPAN VLAN.
Traffic monitoring in a SPAN session has these restrictions: + Sources can be ports or VLANs, but you cannot mix source ports and source VLANs in the same session.
Reference:
Therefore in this question, we cannot configure a source VLAN because we configured source ports for RSPAN session 1 already.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. Which two commands are needed to allow for full reachability between AS 1000 and AS
2000? (Choose two)

• A.R1#network 19.168.0.0 mask 255.255.0.0
• B.R1#no network 10.0.0.0 255.255.255.0
• C.R2#no network 10.0.0.0 255.255.255.0
• D.R2#network 19.168.0.0 mask 255.255.0.0
• E.R2#network 209.165.201.0 mask 255.255.192.0
