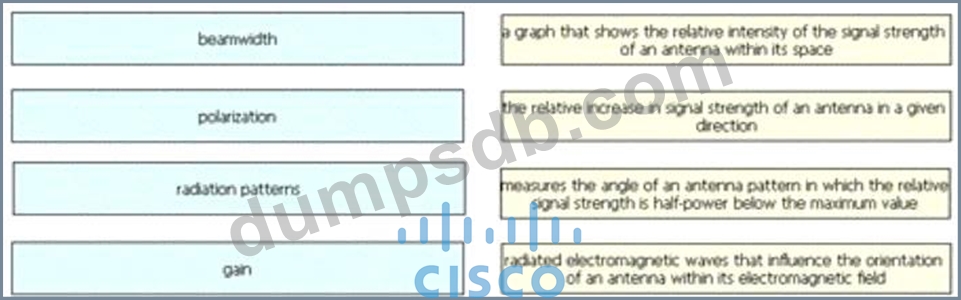

Drag and drop the wireless elements on the left to their definitions on the right.

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

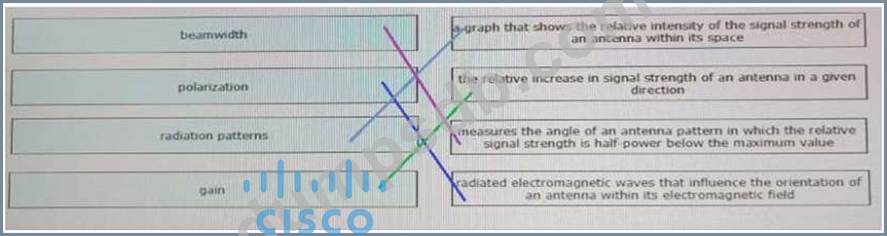

Drag and drop the wireless elements on the left to their definitions on the right.

Correct Answer:

Explanation
Chart, line chart Description automatically generated

Comment: *

Name: *

Email: *

Verification: *

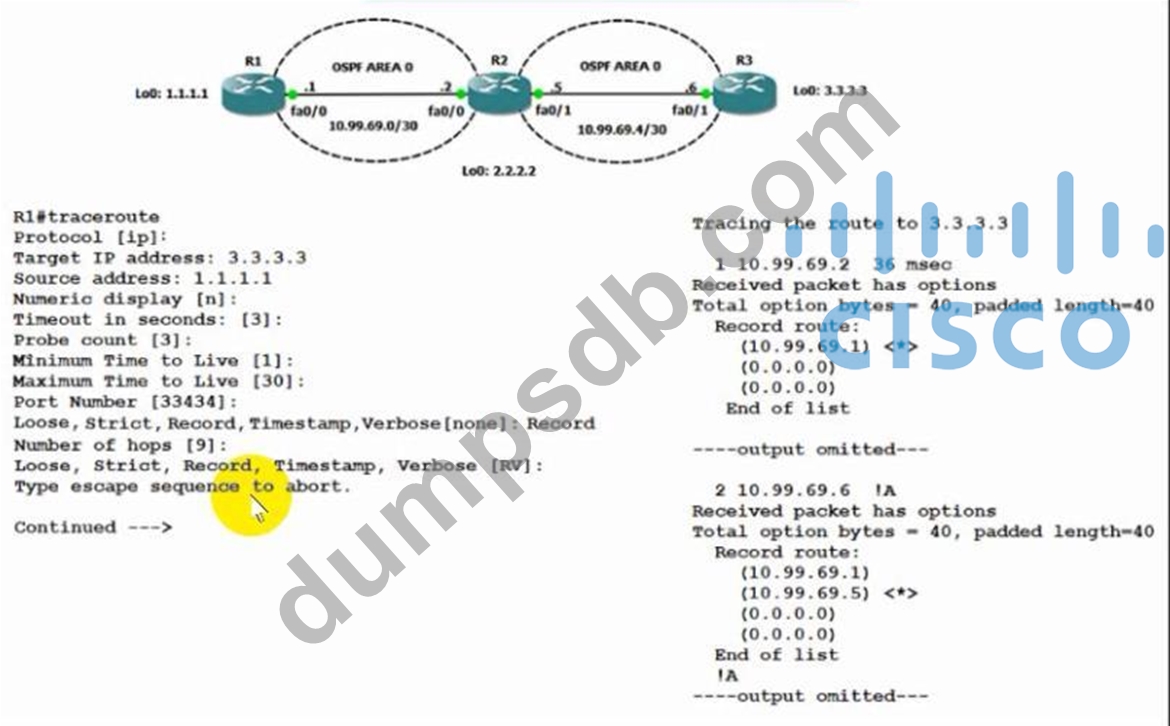

Refer to the exhibit.

The traceroute fails from R1 to R3. What is the cause of the failure?

• A.The loopback on R3 Is in a shutdown stale.
• B.An ACL applied Inbound on loopback0 of R2 Is dropping the traffic.
• C.An ACL applied Inbound on fa0/1 of R3 is dropping the traffic.
• D.Redistribution of connected routes into OSPF is not configured.

Comment: *

Name: *

Email: *

Verification: *

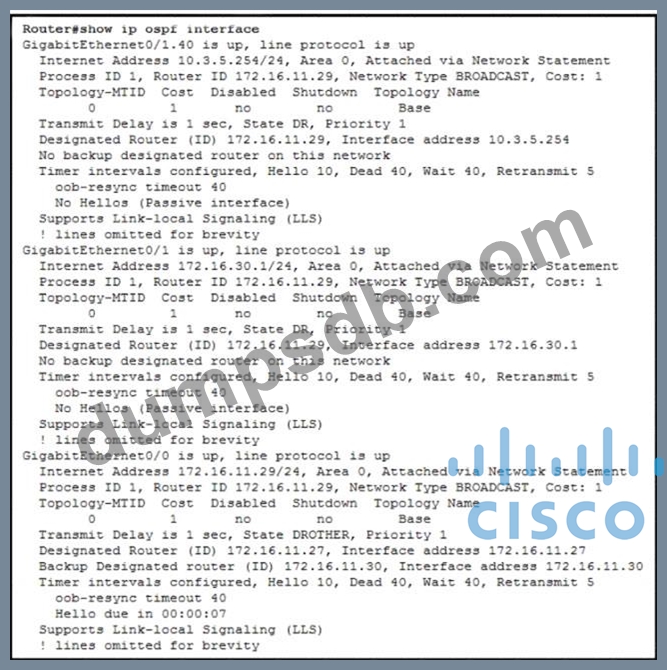

Refer to the exhibit.

A network engineer configures OSPF and reviews the router configuration. Which interface or interface or interface are able to establish OSPF adjacency?

• A.only GigabitEthernet0/1
• B.only GigabttEthernet0/0
• C.GigabitEthemet0/1 and GigabitEthernet0/1.40
• D.Gigabit Ethernet0/0 and GigabitEthemet0/1

Comment: *

Name: *

Email: *

Verification: *

Which two GRE features are configured to prevent fragmentation? (Choose two.)

• A.MTU ignore
• B.TCP MSS
• C.IP MTU
• D.DF bit clear
• E.TCP window size
