An engineer must configure interface GigabitEthernet0/0 for VRRP group 10. When the router has the highest priority in the group, it must assume the master role. Which command set must be added to the initial configuration to accomplish this task?

• A.vrrp 10 ip 172.16.13.254
  vrrp 10 preempt
• B.standby 10 ip 172.16.13.254
  standby 10 priority 120
• C.vrrp group 10 ip 172.16.13 254.255.255.255.0
  vrrp group 10 priority 120
• D.standby 10 ip 172.16.13.254 255.255.255.0
  standby 10 preempt

Correct Answer: C

Explanation

Comment: *

Name: *

Email: *

Verification: *

Which function does a fabric edge node perform in an SD-Access deployment?

• A.Connects the SD-Access fabric to another fabric or external Layer 3 networks
• B.Connects endpoints to the fabric and forwards their traffic
• C.Provides reachability border nodes in the fabric underlay
• D.Encapsulates end-user data traffic into LISP.

Correct Answer: B

Explanation

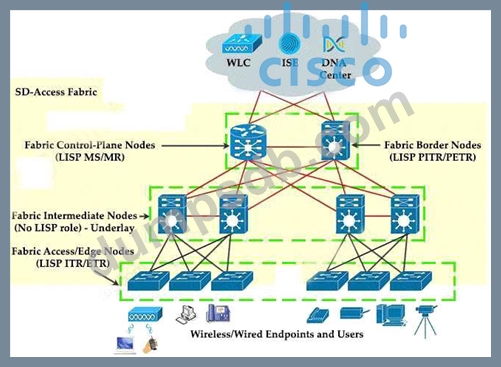

There are five basic device roles in the fabric overlay:
+ Control plane node: This node contains the settings, protocols, and mapping tables to provide the endpoint-to-location (EID-to-RLOC) mapping system for the fabric overlay.
+ Fabric border node: This fabric device (for example, core layer device) connects external Layer
3 networks to the SDA fabric.
+ Fabric edge node: This fabric device (for example, access or distribution layer device) connects wired endpoints to the SDA fabric.
+ Fabric WLAN controller (WLC): This fabric device connects APs and wireless endpoints to the SDA fabric.
+ Intermediate nodes: These are intermediate routers or extended switches that do not provide any sort of SD-Access fabric role other than underlay services.

Comment: *

Name: *

Email: *

Verification: *

How does a fabric access point fit in the network?

• A.It is in local mode an must be connected directly to the fabric border node.
• B.It is in FlexConnect mode and must be connected directly to the fabric border node.
• C.It is in local mode an must connected directly to the fabric edge switch.
• D.It is in FlexConnect mode and must be connected directly to the fabric edge switch.

Comment: *

Name: *

Email: *

Verification: *

An engineer must configure HSRP group 300 on a Cisco IOS router. When the router is functional, it must be the must be the active HSRP router. The peer router has been configured using the default priority value.
Which command set is required?

• A.Option D
• B.Option A
• C.Option B
• D.Option C

Comment: *

Name: *

Email: *

Verification: *

What is the correct EBGP path attribute list, ordered from most preferred to the least preferred, that the BGP best-path algorithm uses?

• A.weight, AS path, local preference, MED
• B.weight, local preference, AS path, MED
• C.local preference, weight, AS path, MED
• D.local preference, weight MED, AS path
