What are two differences between the RIB and the FIB? (Choose two.)

• A.The FIB is derived from the data plane, and the RIB is derived from the FIB.
• B.The RIB is a database of routing prefixes, and the FIB is the Information used to choose the egress interface for each packet.
• C.FIB is a database of routing prefixes, and the RIB is the information used to choose the egress interface for each packet.
• D.The FIB is derived from the control plane, and the RIB is derived from the FIB.
• E.The RIB is derived from the control plane, and the FIB is derived from the RIB.

Comment: *

Name: *

Email: *

Verification: *

Drag and drop the Qos mechanisms from the left to the correct descriptions on the right

Correct Answer:

Explanation

Comment: *

Name: *

Email: *

Verification: *

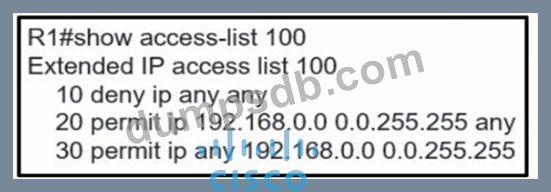

Refer to the exhibit.

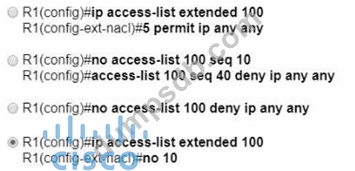

Extended access-list 100 is configured on interface GigabitEthernet 0/0 in an inbound direction, but it does not have the expected behavior of allowing only packets to or from 192 168 0.0/16 Which command set properly configures the access list?

• A.Option A
• B.Option B
• C.Option C
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

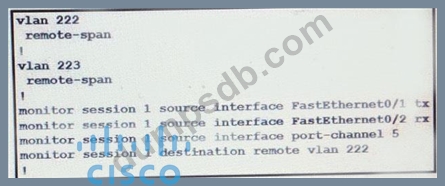

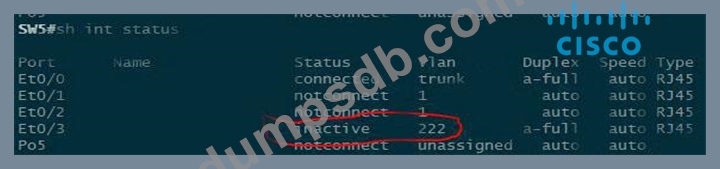

Refer to the exhibit.

What happens to access interfaces where VLAN 222 is assigned?

• A.STP BPDU guard is enabled
• B.A description "RSPAN" is added
• C.They are placed into an inactive state
• D.They cannot provide PoE

Correct Answer: C

Explanation

Comment: *

Name: *

Email: *

Verification: *

What are two common sources of interference for Wi-Fi networks? (Choose two.)

• A.radar
• B.fire alarm
• C.LED lights
• D.rogue AP
• E.conventional oven
