Refer to the exhibit.

Which two statements about the EEM applet configuration are true? (Choose two.)

• A.The EEM applet runs after the CLI command is executed
• B.The running configuration is displayed only if the letter Y is entered at the CLI
• C.The EEM applet runs before the CLI command is executed
• D.The EEM applet requires a case-insensitive response

Comment: *

Name: *

Email: *

Verification: *

An engineer configures a WLAN with fast transition enabled Some legacy clients fail to connect to this WLAN Which feature allows the legacy clients to connect while still allowing other clients to use fast transition based on then OLTIs?

• A.802.11V
• B.adaptive R
• C.802.11k
• D.over the DS

Comment: *

Name: *

Email: *

Verification: *

Which unit is used to express the signal-to-noise ratio?

• A.mW
• B.db
• C.amp
• D.dbm

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Which command when applied to the Atlanta router reduces type 3 LSA flooding into the backbone area and summarizes the inter-area routes on the Dallas router?

• A.Atlanta(config-route)#area 0 range 192.168.0.0 255.255.248.0
• B.Atlanta(config-route)#area 0 range 192.168.0.0 255.255.252.0
• C.Atlanta(config-route)#area 1 range 192.168.0.0 255.255.248.0
• D.Atlanta(config-route)#area 1 range 192.168.0.0 255.255.252.0

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

A network engineer is configuring OSPF between router R1 and router R2. The engineer must ensure that a DR/BDR election does not occur on the Gigabit Ethernet interfaces in area 0. Which configuration set accomplishes this goal?

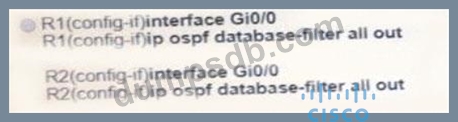

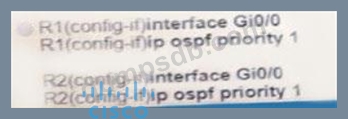

A)

B)

C)

D)

• A.Option A
• B.Option B
• C.Option C
• D.Option D
