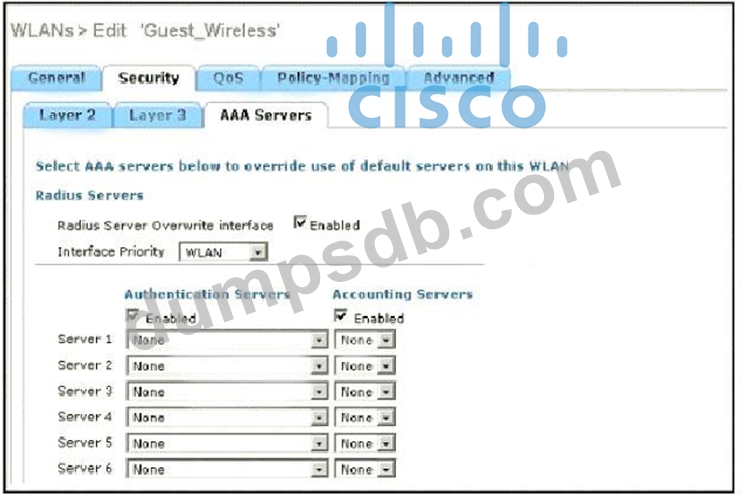

Refer to the exhibit.

Assuming the WLC's interfaces are not in the same subnet as the RADIUS server, which interface would the WLC use as the source for all RADIUS-related traffic?

• A.the interface specified on the WLAN configuration
• B.any interface configured on the WLC
• C.the controller management interface
• D.the controller virtual interface

Comment: *

Name: *

Email: *

Verification: *

How does SSO work with HSRP to minimize network disruptions?

• A.It enables HSRP to elect another switch in the group as the active HSRP switch.
• B.It enables HSRP to failover to the standby RP on the same device.
• C.It ensures fast failover in the case of link failure.
• D.It enables data forwarding along known routes following a switchover, white the routing protocol reconverges.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

What does the snippet of code achieve?

• A.It creates a temporary connection to a Cisco Nexus device and retrieves a token to be used for API calls.
• B.It opens a tunnel and encapsulates the login information, if the host key is correct.
• C.It opens an ncclient connection to a Cisco Nexus device and maintains it for the duration of the context.
• D.It creates an SSH connection using the SSH key that is stored, and the password is ignored.

Comment: *

Name: *

Email: *

Verification: *

What is the function of a fabric border node in a Cisco SD-Access environment?

• A.To connect the Cisco SD-Access fabric to another fabric or external Layer 3 networks
• B.To attach and register clients to the fabric
• C.To collect traffic flow information toward external networks
• D.To handle an ordered list of IP addresses and locations for endpoints in the fabric.

Comment: *

Name: *

Email: *

Verification: *

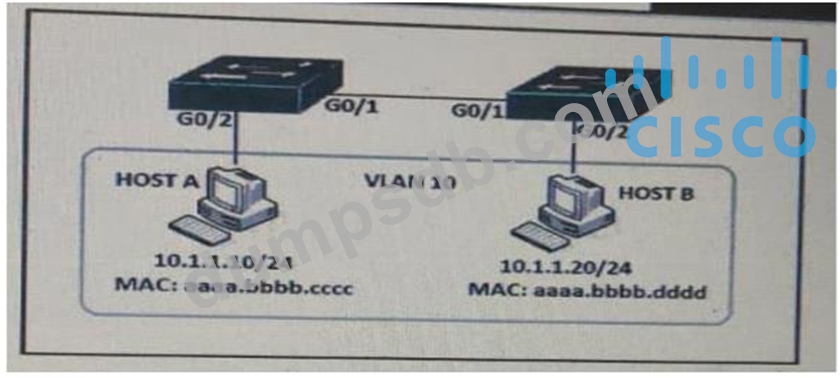

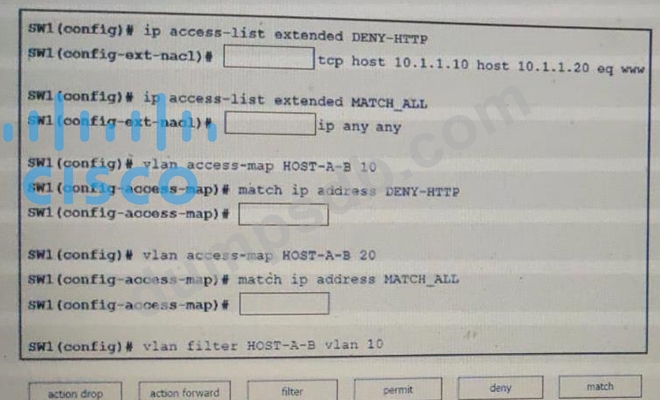

Refer to the exhibit. An engineer must deny HTTP traffic from host A to host V while allowing all other communication between the hosts, drag and drop the commands into the configuration to achieve these results. Some commands may be used more than once. Not all commands are used.

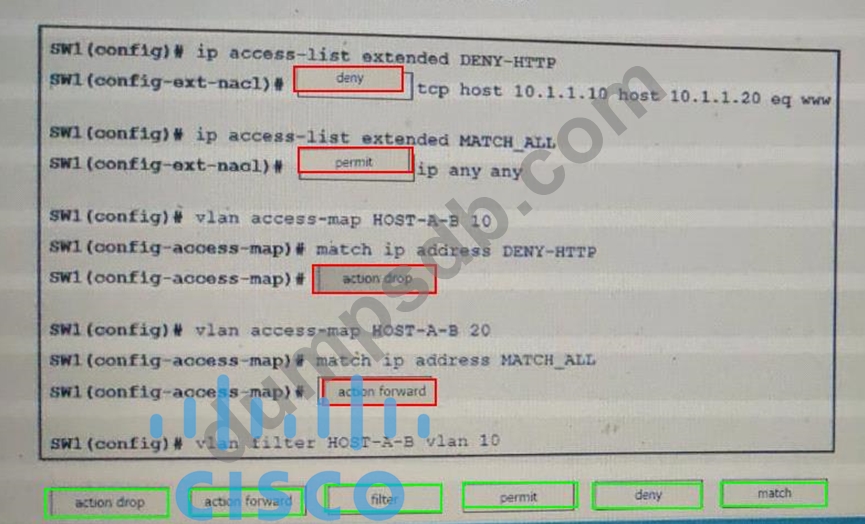

Correct Answer:
