Refer to the exhibit.

Which result Is achieved by the CoPP configuration?

• A.Traffic that matches entry 10 of ACL 100 is always allowed.
• B.Class-default traffic is dropped.
• C.Traffic that matches entry 10 of ACL 100 is always allowed with a limited CIR.
• D.Traffic that matches entry 10 of ACL 100 is always dropped.

Comment: *

Name: *

Email: *

Verification: *

Simulation 04
Refer to the Exhibit.

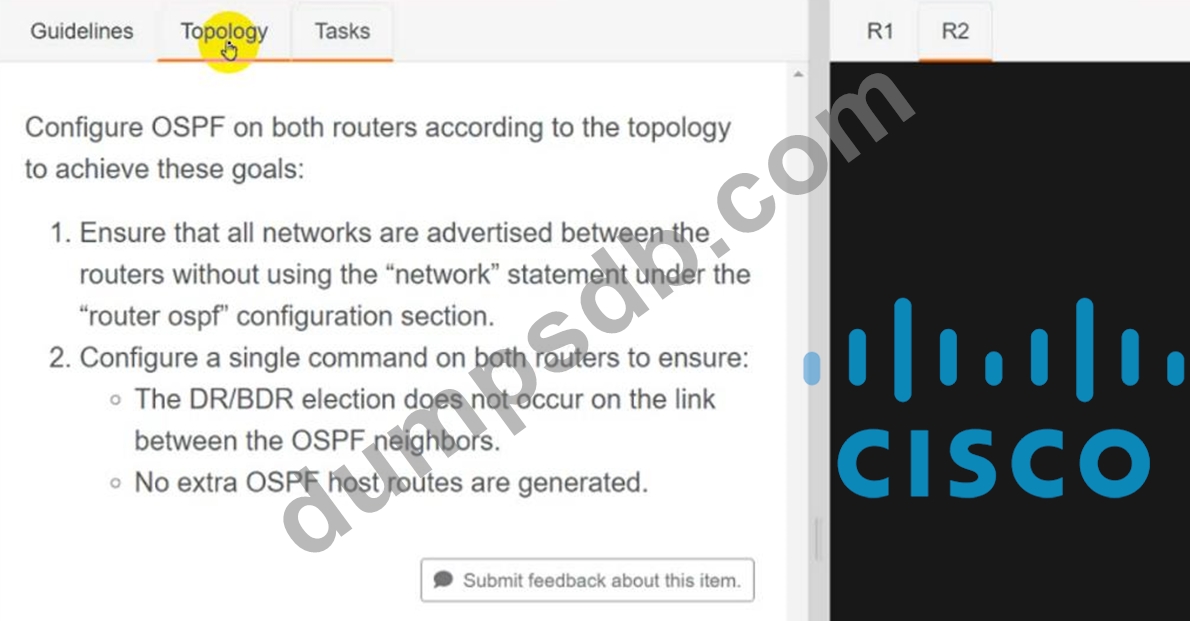

Configure OSPF on both routers according to the topology to achieve these goals:

• A.See th eexplanation fo rthe solution

Correct Answer: A

Solution:
R1
Router ospf 1
Int loop0
Ip ospf 1 area 0
Int et0/0
Ip ospf 1 area 0
Ip ospf network point-to-point
Copy run start
R2
Router ospf 1
Int loop0
Ip ospf 1 area 0
Int et0/0
Ip ospf 1 area 0
Ip ospf network point-to-point
Copy run start
Verification:-

Comment: *

Name: *

Email: *

Verification: *

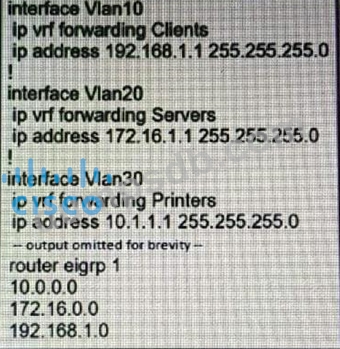

Refer to the exhibit. An engineer attempts to configure a router on a stick to route packets between Clients, Servers, and Printers; however, initial tests show that this configuration is not working. Which command set resolves this issue?

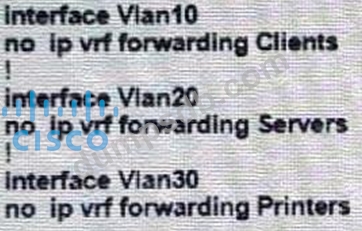

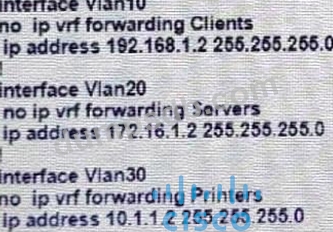

• A.
• B.
• C.
• D.

Comment: *

Name: *

Email: *

Verification: *

If AP power level is increased from 25 mW to 100 mW.
What is the power difference in dBm?

• A.6 dBm
• B.14 dBm
• C.17 dBm
• D.20 dBm

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

Security policy requires all idle-exec sessions to be terminated in 600 seconds. Which configuration achieves this goal?

• A.line vty 0 15 exec-timeout 10 0
• B.line vty 0 15 exec-timeout
• C.line vty 0 15 absolute-timeout 600
• D.line vty 0 4 exec-timeout 600
