An LTM device is monitoring pool members on port 80. The LTM device is using an HTTP monitor with a send string of GET / and a blank receive string.
What would cause the pool members to be marked down?

• A.A pool member does NOT acknowledge the connection SYN on port 80.
• B.A pool member responds with an HTTP 200 series response code.
• C.A pool member responds with an HTTP 300 series response code.
• D.A pool member responds with an HTTP 400 series response code.
• E.A pool member responds with an HTTP 500 series response code.

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit --

-- Exhibit --

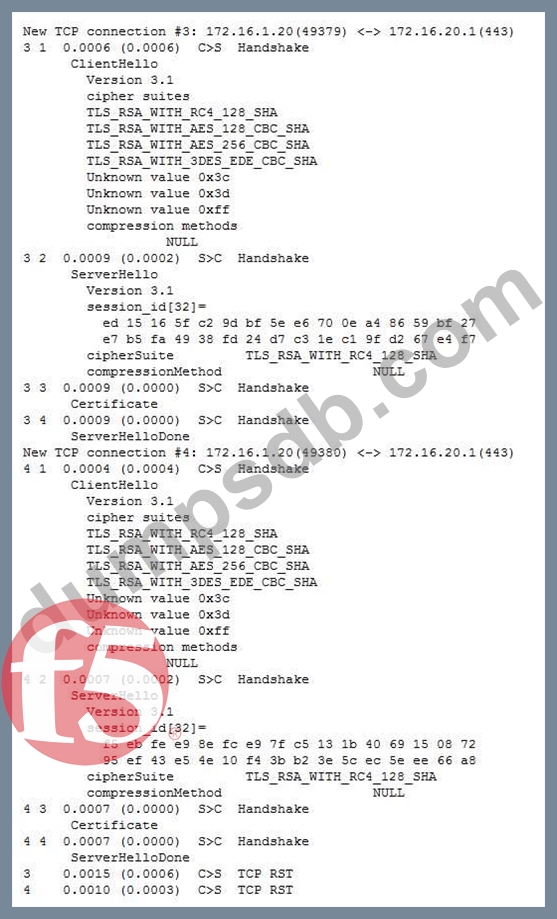

Refer to the exhibit.
A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem. The LTM Specialist has the tcpdump extract. The client loses connection with the LTM device.
Where is the reset originating?

• A.the destination device of the initial connection
• B.the application server
• C.the local switch
• D.the device initiating the connection

Comment: *

Name: *

Email: *

Verification: *

-- Exhibit -

-- Exhibit --
Refer to the exhibit.
An LTM Specialist is troubleshooting an issue with an application configured on an LTM device. The application works properly when accessed directly via the servers; however, it does not work when accessed via the LTM device. The virtual server, 192.168.1.211:443, is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. The virtual server has no Client or Server SSL profiles associated.
Which configuration change will allow the application to function through the virtual server?

• A.Change pool member port to 8443.
• B.Add Client and Server SSL profiles to the virtual server.
• C.Add SSL off-loading to the pool member.
• D.Change virtual server port to 8443.

Comment: *

Name: *

Email: *

Verification: *

An HTTP 1.1 application utilizes chunking.
Which header should be used to notify the client's browser that there are additional HTTP headers at the end of the message?

• A.From
• B.Expect
• C.ETag
• D.Trailer

Comment: *

Name: *

Email: *

Verification: *

The pool members are serving up simple static web content. The current virtual server configuration is given as follows: tmsh list ltm virtual simple
ltm virtual simple { destination 10.10.10.10:80 ip-protocol tcp mask 255.255.255.255 profiles { http { } httpcompression { } oneconnect { } tcp { } } snat automap vlans-disabled }
tmsh list ltm pool simple_pool ltm pool simple_pool { members {
10.10.10.11:80 {
address 10.10.10.11 }
10.10.10.12:80
{
address 10.10.10.12 }
10.10.10.12:80
{
address 10.10.10.13 }
}
}
Which three objects in the virtual server configuration can be removed without disrupting functionality of the virtual server? (Choose three.)

• A.snat automap
• B.oneconnect
• C.httpcompression
• D.http
• E.tcp
