Question 76

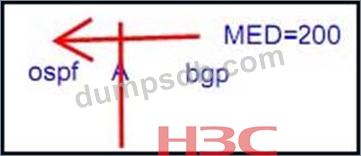

As shown in the figure, RTA is the border router of OSPF routing domain and BGP routing domain. If a BGP route with a MED value of 200 is imported into OSPF on RTA, the COST value of the route learned by RTB is ______ by default.
Question 77
In the topology shown in the figure, the network layer is reachable between RTA and RTB, and between RTB and RTC.
The following configurations are performed on RTA, RTB and RTC respectively:
RTA]ospf 1
RTA-ospf-1]area 1
RTA-ospf-1-area-0.0.0.1]network 192.168.1.0 0.0.0.255
RTA-ospf-1-area-0.0.0.1]network 1.1.1.1 0.0.0.0
RTB]ospf 1
RTB-ospf-1]area 1
RTB-ospf-1-area-0.0.0.1]network 192.168.1.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1]area 0
RTB-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
RTB-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
RTC]ospf 1
RTC-ospf-1]area 0
RTC-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
RTC-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
The following statement is correct ________
Question 78

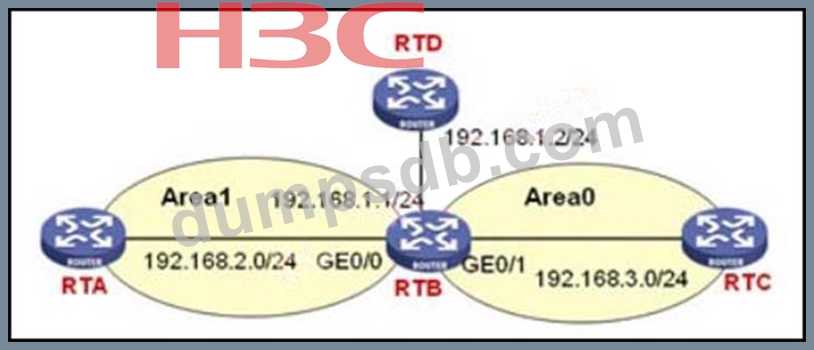

In the topology shown in the figure, the following configurations are performed on RTA, RTB, and RTC:
RTA-GigabitEthernet0/0] ip address 192.168.2.1 255.255.255.0
RTA-GigabitEthernet0/0] ospf network-tpe p2p
RTA] ospf 1 router-id 1.1.1.1
RTA-ospf-1] area 1
RTA-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTB-GigabitEthernet0/0] ip address 192.168.2.2 255.255.255.0
RTB-GigabitEthernet0/0] ospf network-tpe p2p
RTB-GigabitEthernet0/1] ip address 192.168.3.1 255.255.255.0
RTB-GigabitEthernet0/1] ospf network-tpe p2p
RTB] ospf 1 router-id 2.2.2.2
RTB-ospf-1] area 1
RTB-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTB-ospf-1] area 0
RTB-ospf-1-area-0.0.0.0] network 192.168.3.0 0.0.0.255
RTC-GigabitEthernet0/0] ip address 192.168.3.2 255.255.255.0
RTC-GigabitEthernet0/0] ospf network-tpe p2p
RTC] ospf 1 router-id 3.3.3.3
RTC-ospf-1] area 0
RTC-ospf-1-area-0.0.0.0] network 192.168.3.0 0.0.0.255
Then the types of LSAs generated by RTB in the OSPF area are _______
Question 79
Run the command and display information on the router as follows:
<RTC>displisis lsdb level-1 verbose
Database information for ISIS(1)
--------------------------------
Level-1 Link State Database
LSPID Se Num Checksum Holdtime Length ATT/P/OL
-------------------------------------------------- -----------------------------
3333.3333.3333.00-00* 0x0000007c 0x5fae 388 58 1/0/0
SOURCE 3333.3333.3333.00
NLPID IPV4
AREA ADDR 02
INTF ADDR 10.1.3.2
INTF ADDR 10.3.4.1
NBR ID 4444.4444.4444.00 COST: 10
3333.3333.3333.00-01* 0x0000008f 0x55ae 388 113 0/0/0
SOURCE 3333.3333.3333.00
IP-Internal 10.1.3.0 255.255.255.252 COST: 10
IP-Internal 10.3.4.0 255.255.255.252 COST: 10
IP-Internal* 172.16.3.1 255.255.255.255 COST: 10
IP-Internal* 10.1.2.0 255.255.255.252 COST: 20
IP-Internal* 192.168.18.0 255.255.255.0 COST: 30
IP-Internal* 172.16.2.1 255.255.255.255 COST: 20
IP-Internal* 172.16.1.1 255.255.255.255 COST: 20
4444.4444.4444.00-00 0x00000111 0x9817 1098 62 1/0/0
SOURCE 4444.4444.4444.00
NLPID IPV4
AREA ADDR 02
INTF ADDR 10.3.4.2
INTF ADDR 10.2.4.2
INTF ADDR 172.16.4.1
NBR ID 3333.3333.3333.00 COST: 10
4444.4444.4444.00-01 0x0000006f 0x8952 1098 65 0/0/0
SOURCE 4444.4444.4444.00
IP-Internal 10.3.4.0 255.255.255.252 COST: 10
IP-Internal 10.2.4.0 255.255.255.252 COST: 10
IP-Internal 172.16.4.1 255.255.255.255 COST: 0
From the above information, you can know _________.
Question 80
XZ company requires to build its network based on the modular enterprise network architecture. XZ has one R&D base in Shenzhen and Xi'an each; one office building in Beijing and Shanghai each; offices with more than 50 people in 23 capital cities; small offices with no more than 8 people in 200 small and medium-sized cities; There are usually more than 200 market and technical personnel on business trips at any given time. Due to environmental and cost issues, some offices cannot access the headquarters through dedicated lines or packet-switched wide area network connections. According to these circumstances, the network module XZ company should have is ________.
