V In the network shown in the figure, the correct IP addresses have been configured on RTA, RTB and RTC.
Execute the following commands on the three routers RTA, RTB and RTC:
RTA-Serial5/0] ospf dr-priorit100
RTA] ospf 1 router-id 1.1.1.1
RTA-ospf-1] area 0
RTA-ospf-1] peer 192.168.1.2
RTA-ospf-1] peer 192.168.1.3
RTA-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.2
RTB] ospf 1 router-id 2.2.2.2
RTB-ospf-1] area 0
RTB-ospf-1] peer 192.168.1.1
RTB-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
RTC] ospf 1 router-id 3.3.3.3
RTC-ospf-1] area 0
RTC-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
Judging from the above configuration, ________

• A.RTA and RTB, RTA and RTC can establish neighbors
• B.RTA and RTB, RTA and RTC cannot establish neighbors
• C.A neighbor cannot be established between RTA and RTB, but a neighbor can be established between RTA and RTC
• D.A neighbor can be established between RTA and RTB, but a neighbor cannot be established between RTA and RTC

Comment: *

Name: *

Email: *

Verification: *

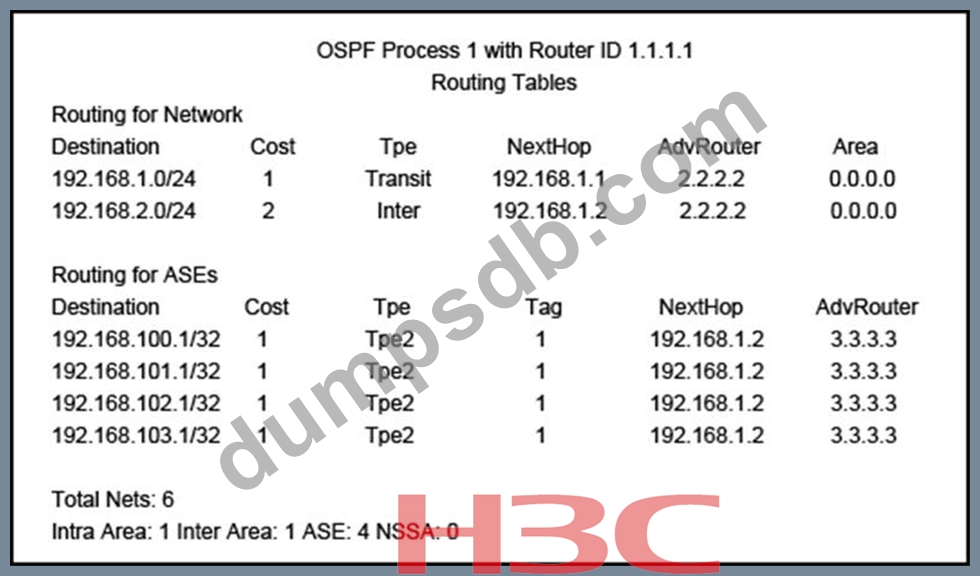

After executing the displaospf routing command on the MSR router RTA, the router output is as follows:

From the above output, you can judge ______.

• A.192.168.100.1 is the received Tpe1 LSA
• B.The network segment 192.168.2.0 is not in Area0
• C.There are 6 OSPF routes in total, including 1 intra-area route, 1 inter-area route, and 4 external routes
• D.192.168.102.1 is the received Tpe2 LSA

Comment: *

Name: *

Email: *

Verification: *

In the topology shown in the figure, the following configurations are performed on RTA, RTB, RTC and RTD respectively:
RTA-LoopBack0] ip address 1.1.1.1 255.255.255.255
RTA]ospf 1
RTA-ospf-1]area 1
RTA-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTA-ospf-1]import-route direct
RTB-LoopBack0] ip address 2.2.2.2 255.255.255.255
RTB]ospf 1
RTB-ospf-1]area 1
RTB-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1]area 0
RTB-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTB-ospf-1]import-route direct
RTC-LoopBack0] ip address 3.3.3.3 255.255.255.255
RTC]ospf 1
RTC-ospf-1]area 0
RTC-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTC-ospf-1-area-0.0.0.0]area 2
RTC-ospf-1-area-0.0.0.2]stub no-summarRTC-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
RTC-ospf-1-area-0.0.0.2]network 3.3.3.3 0.0.0.0
RTD-LoopBack0] ip address 4.4.4.4 255.255.255.255
RTD]ospf 1
RTD-ospf-1]area 2
RTD-ospf-1-area-0.0.0.2]network 4.4.4.4 0.0.0.0
RTD-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
RTD-ospf-1-area-0.0.0.2]stub
Which of the following routes cannot exist in the RTD routing table ______.

• A.0.0.0.0/0
• B.2.2.2.2/32
• C.10.0.0.0/24
• D.1.1.1.1/32

Comment: *

Name: *

Email: *

Verification: *

IS-IS routers transfer link status to each other. The information describing the link status is encapsulated in _______.

• A.Link layer header
• B.IS-IS dedicated header
• C.IS-IS common header
• D.CLV

Comment: *

Name: *

Email: *

Verification: *

In the network shown in the figure, the related 6to4 tunnel configuration is correct. When RTA receives the IPv6 data packet sent by PC1 to the destination address 2002:303:314:202:206:101:118:1, this data packet _______.

• A.It will match the route with the next hop pointing to the 6to4 tunnel, encapsulate the message and send it to RTC
• B.It will match the route with the next hop to the physical interface and forward it by the physical interface
• C.No route matching, just discard
• D.It will match the route with the next hop to the 6to4 tunnel, encapsulate the message and send it to RTB
