Question 36
The PBR configuration of a router is known as follows:
polic-based-route pbr_a permit node 10
if-match acl 3000
if-match packet-length 101 1000
apploutput-interface serial 2/0
Assuming that the strategy has been successfully applied, how will the relevant data flow on the router be forwarded?
Question 37
Execute displaip polic-based-route statistic interface ethernet1/0 on the router, and the output is as follows:
Interface Ethernet1/0 policbased routing statistics information:
polic-based-route: aaa
permit node 5
apploutput-interface serial1/0
Denied: 0, Forwarded: 0
Total denied: 0, forwarded: 0
According to the above output, we know ______.
Question 38

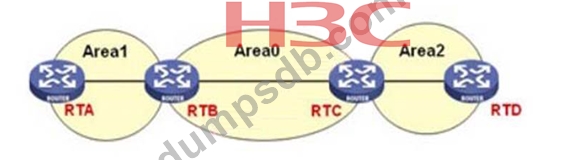

In the topology shown in the figure, the following configurations are performed on RTA, RTB, RTC and RTD respectively:
RTA-LoopBack0] ip address 1.1.1.1 255.255.255.255
RTA]ospf 1
RTA-ospf-1]area 1
RTA-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTA-ospf-1]import-route direct
RTB-LoopBack0] ip address 2.2.2.2 255.255.255.255
RTB]ospf 1
RTB-ospf-1]area 1
RTB-ospf-1-area-0.0.0.1]network 10.0.0.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1]area 0
RTB-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
RTB-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTC-LoopBack0] ip address 3.3.3.3 255.255.255.255
RTC]ospf 1
RTC-ospf-1]area 0
RTC-ospf-1-area-0.0.0.0]network 20.0.0.0 0.0.0.255
RTC-ospf-1-area-0.0.0.0]area 2
RTC-ospf-1-area-0.0.0.2]nssa default-route-advertise
RTC-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
RTC-ospf-1-area-0.0.0.2]network 3.3.3.3 0.0.0.0
RTD-LoopBack0] ip address 4.4.4.4 255.255.255.25
RTD]ospf 1
RTD-ospf-1]area 2
RTD-ospf-1-area-0.0.0.2]network 30.0.0.0 0.0.0.255
RTD-ospf-1-area-0.0.0.2]nssa
RTD-ospf-1]import-route direct
Which of the following routes may exist in the RTD routing table _______.
Question 39
There are 4 routes in the routing table 192.168.0.0/24, 192.168.1.0/24, 192.168.2.0/24, 192.168.3.0/24.
For route aggregation, the correct route after aggregation is __________.
Question 40
Among the following routing protocols, the one that belongs to the IGP is ______, and the one that uses the link state algorithm is ______.
