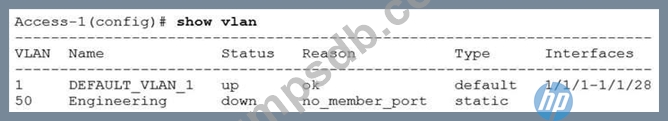

Refer to the exhibit

What is true regarding VLAN 50 according to the diagram above?

• A.VLAN 50 is part of a switched virtual interface (SVI) that was never routed causing it to be down.
• B.Since VLAN 50 has not been assigned to any enabled physical port, the status is down.
• C.VLAN 50 was never added to the vlan-database and therefore is in a down state.
• D.VLAN 50 is assigned only to Trunk ports which is why no ports are listed under interfaces.

Comment: *

Name: *

Email: *

Verification: *

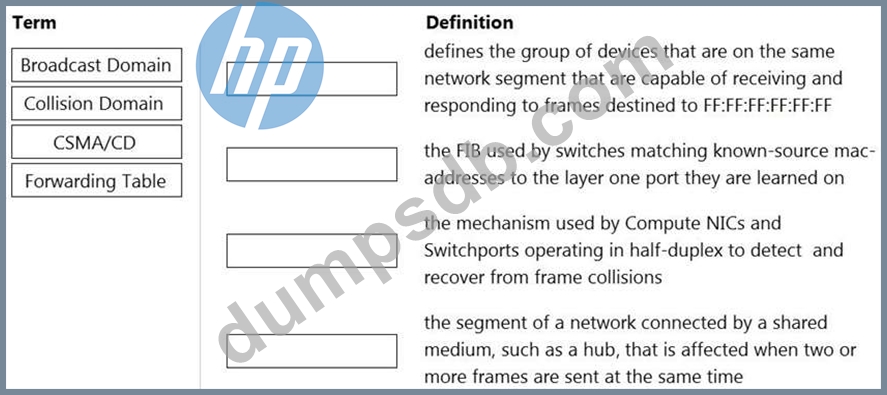

Match the switching term to the correct definition.

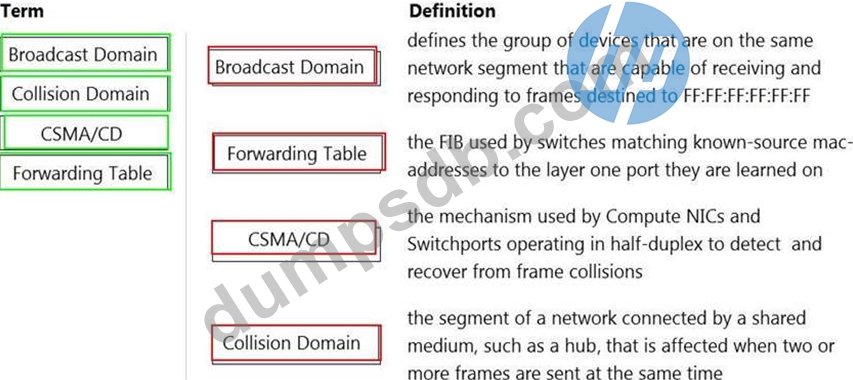

Correct Answer:

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

The above output is the result of issuing the command show system resource-utilization.
What command should be used to enable terminal output line by line or page by page?

• A.The command less
• B.The command page
• C.The command terminal length 30
• D.The command more

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

All four switches in the diagram have been configured with the region name "Aruba1".
What two other MSTP configurations must match for switches within the same MST region? (Choose two.)

• A.MST revision number
• B.MST Bridge ID
• C.MST VLAN to instance mapping
• D.MST region type
• E.MST version number

Comment: *

Name: *

Email: *

Verification: *

Interface 1/1/1 is up
Admin state is up
Link transitions: 1
Description: TO_PC-1
Hardware: Ethernet, MAC Address: 00:11:22:33:44:55
MTU 1500
Type 1GbT
Full-duplex
qos trust none
Speed 1000 Mb/s
Auto-negotiation is on
Flow-control: off
Error-control: off
MDI mode: MDIX
VLAN Mode: access
Access VLAN: 1111
Which command will produce the above output?

• A.show vlan 1111
• B.show interface gigabit 1/1/1
• C.show interface vlan 1111
• D.show interface 1/1/1
