A company has an existing wireless solution involving Aruba APs and Mobility controllers running 8.4 code.
The solution leverages a third-party AAA solution. The company is replacing existing access switches with AOS-CX 6300 and 6400 switches. The company wants to leverage the same security and firewall policies for both wired and wireless traffic.
Which solution should the company implement?

• A.Downloadable user roles
• B.IPSec
• C.RADIUS dynamic authorization
• D.User-based tunneling

Comment: *

Name: *

Email: *

Verification: *

A network administrator is attempting to troubleshoot a connectivity issue between a group of users and a particular server. The administrator needs to examine the packets over a period of time from their desktop; however, the administrator is not directly connected to the AOS-CX switch involved with the traffic flow.
What is correct regarding the ERSPAN session that needs to be established on an AOS-CX switch? (Choose two.)

• A.The encapsulation protocol used is GRE
• B.The encapsulation protocol is UDP
• C.On the source AOS-CX switch, the destination specified is the switch to which the administrator's desktop is connected
• D.The encapsulation protocol used is VXLAN
• E.On the source AOS-CX switch, the destination specified is the administrator's desktop

Comment: *

Name: *

Email: *

Verification: *

A company has just purchased AOS-CX switches. The company has a free and open-source AAA solution.
The company wants to implement access control on the Ethernet ports of the AOS-CX switches.
Which security features can the company implement given the equipment that they are using?

• A.Downloadable user roles
• B.Port-based tunneling
• C.Device fingerprinting
• D.Local user roles

Comment: *

Name: *

Email: *

Verification: *

The network is configured for OSPF with the following attributes:
Core1 and Core2 and ABRs
Area 1 has 20 networks in the 10.1.0.0/16 range
Area 0 has 10 networks in the 10.0.0.0/16 range
Area 2 has 50 networks in the 10.2.0.0/16 range
The ASBR is importing a static route into Area 1

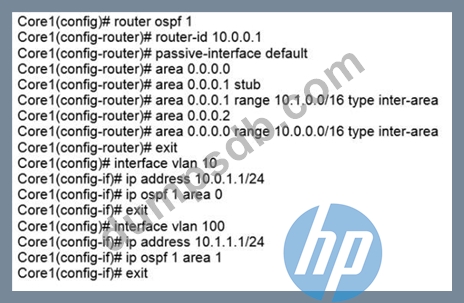

Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area Here is the OSPF configuration performed on Core1:

Based on the above information, what is correct?

• A.Core1 has received one LSA Type 5 from the ASBR
• B.Core1 has no OSPF routes
• C.Area 1 has 23 routes
• D.Area 0 has 13 routes

Comment: *

Name: *

Email: *

Verification: *

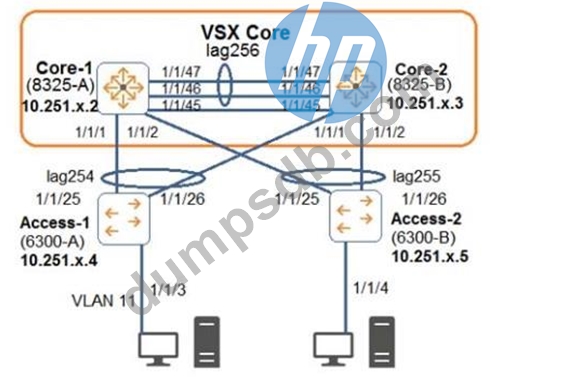

Examine the attached diagram.

The two PCs are located in VLAN 11 (10.1.11.0/24). Which example defines how to implement active gateway on the VSX core for VLAN 11?

• A.interface lag 254
  active-gateway ip 10.1.11.1
  active-gateway mac 02:02:00:00:01:00
• B.interface lag 254
  active-gateway vlan 11 ip 10.1.11.1
  active-gateway vlan 11 mac 02:02:00:00:01:00
• C.interface vlan 11
  active-gateway ip 10.1.11.1
  active-gateway mac 02:02:00:00:01:00
• D.vsx
  vrrp group 1
