You have PIM SM multicast configure and running in a network environment comprised of EX4300 devices. Your customer report increased delay when switching channels using IPTV. To help decrease the delay, you implement PIM join balancing. You add the set protocol pim join- load-balance command to the configuration. After committing, you notice that the flows are still using one path.
In this scenario, which statement is correct?

• A.The interface must be specified to use for load balancing
• B.IGMP snooping must be configured.
• C.PIM join load-balancing also be configured.
• D.The clear pim join-distribution command must be issued.

Comment: *

Name: *

Email: *

Verification: *

BGP multipath or multihop are not configured in your network.
In this scenario, what is the correct sequence for BGP active route selection?

• A.higher local preference
  shortest AS path
  lowest peer address
  lowest router ID
  lower origin code
• B.higher local preference
  shortest AS path
  lower origin code
  lowest router ID
  lowest peer address
• C.higher local preference
  lowest router ID
  lowest peer address
  lower origin code
  shortest AS path
• D.higher local preference
  shortest AS path
  lowest router ID
  lowest peer address
  lower origin code

Comment: *

Name: *

Email: *

Verification: *

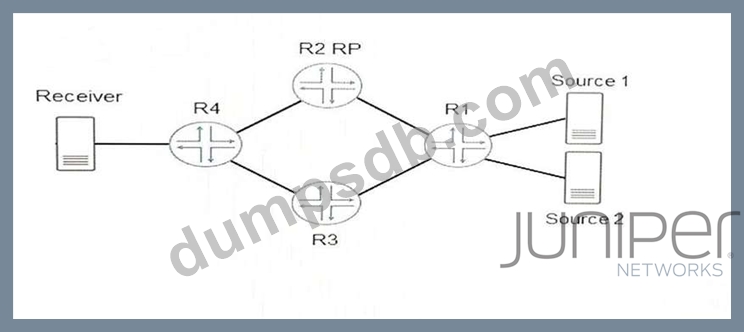

Click the Exhibit.

The Receiver is attempting to join two different groups, one from each source. You want to endure that load balancing is taking place.
Referring to the exhibit, which statement is true?

• A.R4 must have join-load-balance configured under protocol PIM.
• B.R2 must have join-load-balance configured under protocol PIM.
• C.R1 must have join-load-balance configured under protocol PIM.
• D.R3 must have join-load-balance configured under protocol PIM.

Comment: *

Name: *

Email: *

Verification: *

You are asked to merge a RIP network with your OSPF network. As a first step, you establish connectivity between the RIP network and the OSPF network. The RIP network connects to an NSSA area. Which two statements are true in this scenario? (Choose two.)

• A.To share RIP routes with the OSPF network, an export policy will be required on the ABR.
• B.To share RIP routes with the OSPF network, an export policy will be required on the ASBR.
• C.By default, external OSPF routes have a higher route preference than RIP routes.
• D.Be default, RIP routes have a higher route preference than external OSPF routes.

Comment: *

Name: *

Email: *

Verification: *

You are deploying IP phones in your enterprise network that must receive their power through their Ethernet connection. You are using your EX Series switch's PoE ports that support IEEE
802.3af. In this scenario, what is the maximum amount of power allocated to each interface?

• A.50 W
• B.30 W
• C.10.2 W
• D.15.4 W
