You are asked to configure 802.1X on your access ports to allow only a single device to authenticate. In this scenario, which configuration would you use?

• A.MAC authentication mode
• B.single supplicant mode
• C.multiple supplicant mode
• D.single-secure supplicant mode

Comment: *

Name: *

Email: *

Verification: *

You must provide network connectivity to hosts that fail authentication.
In this scenario, what would be used in a network secured with 802.1X to satisfy this requirement?

• A.Configure the native-vlan-id parameter on the port.
• B.Use the server-reject-vlan command to specify a guest VLAN.
• C.Configure a secondary IP address on the port for unauthenticated hosts.
• D.Configure the port as a spanning tree edge port.

Comment: *

Name: *

Email: *

Verification: *

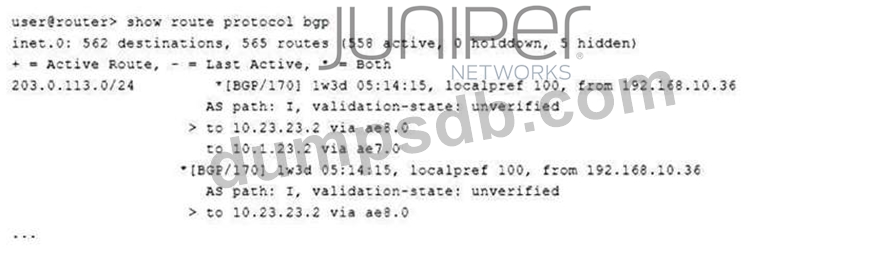

Referring to the exhibit, which statement is correct?

• A.The route is learned from only one neighbor.
• B.The route is learned from a multihop BGP session.
• C.The route is learned from three different neighbors.
• D.The route is learned from a multipath BGP session.

Comment: *

Name: *

Email: *

Verification: *

You are deploying IP phones in your enterprise networks. When plugged in, the IP phones must be automatically provided with the correct VLAN ID needed for sending voice traffic to the EX Series switches.
In this scenario, which two solutions are required to accomplish this task? (Choose two.)

• A.Use LLDP on appropriate interfaces.
• B.Enable LLDP-MED on appropriate access interfaces.
• C.Enable the voice VLAN feature with the appropriate access interfaces and VLAN ID for voice traffic.
• D.Create two VLANs and assign them as VLAN members to the appropriate access interfaces.

Comment: *

Name: *

Email: *

Verification: *

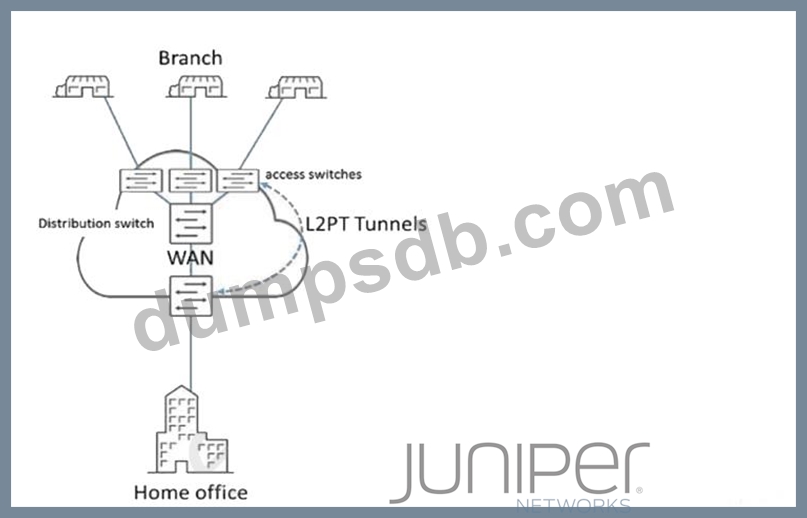

Remote branches connect to the corporate WAN through access switches. The access switches connect to access ports on the WAN distribution switch, as shown in the exhibit. L2PT has previously been configured on the tunnel Layer 2 traffic across the WAN. You decide to move the L2PT tunnel endpoints to the access switches. When you apply the L2PT configuration to the access switches, the ports that connect the access switches to the distribution switch shut down.
Which action would solve this problem?

• A.Configure the links between the access switches and the distribution switch as a trunk port.
• B.Disable the BPDU block function on the access switches.
• C.Disable the BPDU block function on the distribution switch.
• D.Configure a GRE tunnel to encapsulate the L2PT traffic across the WAN.
