Identify two attributes of Distance Vector Protocols: (Choose two)

• A.Send information about directly connected links to neighbors at periodic intervals.
• B.Use split horizon by default.
• C.Maintain multiple databases: neighbor, topology and routing.
• D.Use holddown timers when topologies change to allow for convergence.

Comment: *

Name: *

Email: *

Verification: *

When multiple routing protocols offer a route for the same prefix, what part of the router is in charge of deciding which route to make active?

• A.The routing table manager (RTM).
• B.The forwarding information base (FIB).
• C.The routing information base (RIB).
• D.The equal cost multipath configuration (ECMP).
• E.The link state database (LSDB).

Comment: *

Name: *

Email: *

Verification: *

An IS-IS router receives a CSNP that references an older LSP than the one in its database.
What action is taken?

• A.The router sends a copy of the LSP from its database to its neighbor.
• B.The router updates its database with the LSP and floods a copy to its other neighbors.
• C.The router sends a PSNP to its neighbor describing the LSP in its database.
• D.The router sends a PSNP to its neighbor to request the LSP.

Comment: *

Name: *

Email: *

Verification: *

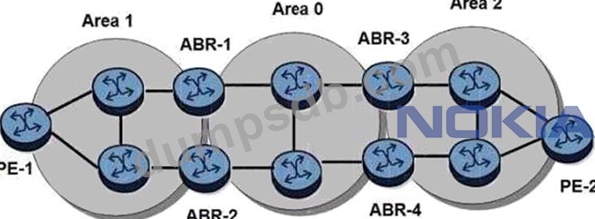

Click on the exhibit.

An LDP-over-RSVP tunnel is established between PE-1 and PE-2.
Which of the following is NOT required to protect the LDP-over-RSVP tunnel?

• A.ABR-1 requires T-LDP sessions to all ABRs in area 0.
• B.PE-1 requires a full mesh of RSVP-TE LSPs to all routers in area 1.
• C.PE-1 requires fast reroute enabled on all RSVP-TE LSPs.
• D.PE-1 requires T-LDP sessions to both ABR-1 and ABR-2.

Comment: *

Name: *

Email: *

Verification: *

A static route needs to be configured with a next-hop that is NOT directly connected to the router.
Which of the following must be TRUE?

• A.The system address of the next-hop router must be included in the static route command.
• B.The router must also have an active static route to the next-hop specified in the static route command.
• C.The system address of the router connected to the destination must be included in the static route command
• D.The command option "indirect" must be used in the static-route command.
