Which of the following indicates the path over which an LSP's tail end router will return an RSVP RESV message?

• A.The opaque database.
• B.The Reservation State Block (RSB)
• C.The IGP FIB.
• D.The Path State Block (PSB)

Comment: *

Name: *

Email: *

Verification: *

Which command provides a summary status of the VPLS service 100?

• A.show service vpls 100 all
• B.show service vpls 100
• C.None of the above.
• D.show service vpls 100 summary
• E.show service id 100 base

Comment: *

Name: *

Email: *

Verification: *

Which of the following about the Link LDP discovery process on the Alcatel-Lucent 7750 SR is FALSE?

• A.LDP Hello messages are sent to the All Routers address 224.0.0.2.
• B.Each LDP enabled router must have its own unique system IP address.
• C.LDP Hello messages are sent over TCP.
• D.LDP Hello messages are exchanged between all directly connected LDP enabled routers.

Comment: *

Name: *

Email: *

Verification: *

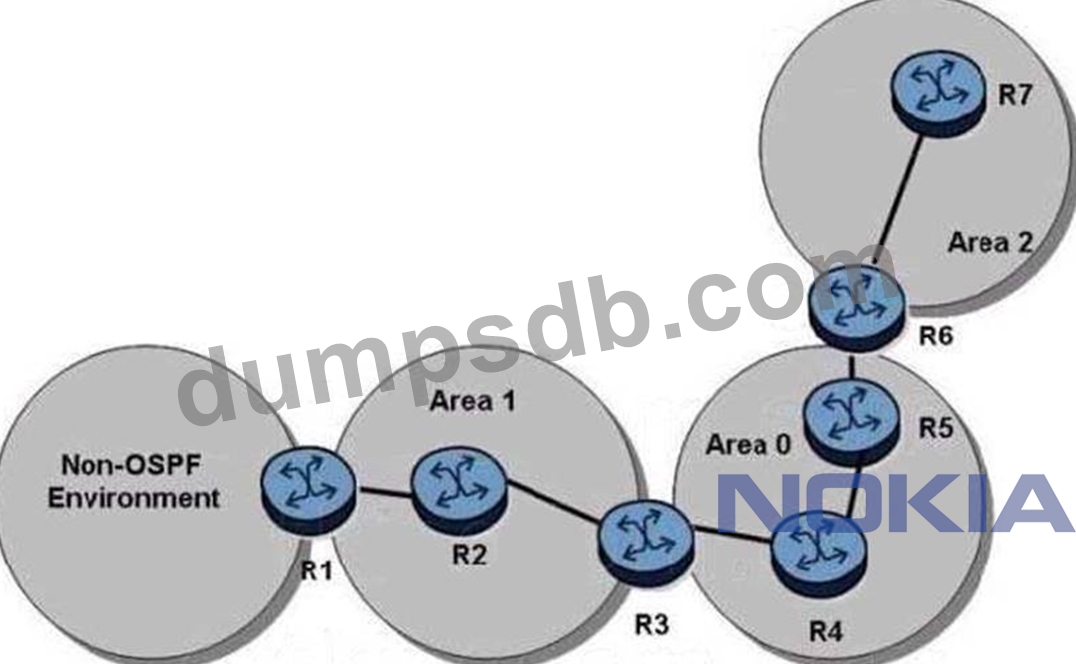

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF.
Assuming that there are no stub networks, which of the following statements regarding Type 4 LSA generation is true?

• A.Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.
• B.Router R1 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.
• C.Router R3 generates a Type 4 LSA that is flooded to areas 0 and 2.
• D.Router R3 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.

Comment: *

Name: *

Email: *

Verification: *

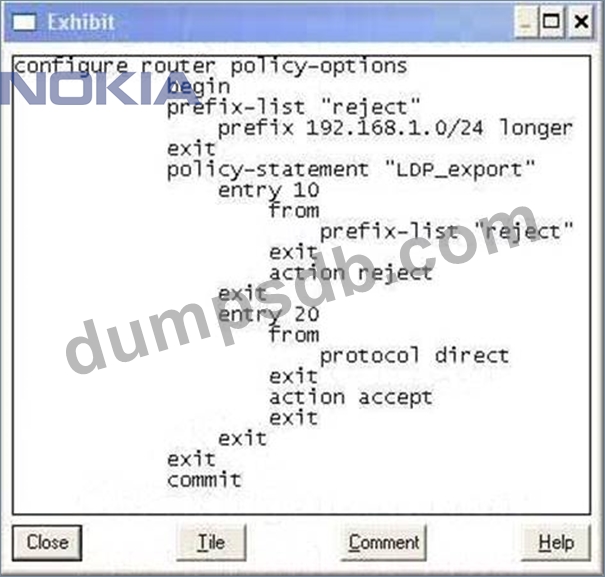

Click on the exhibit button.

The policy on router R2 is applied as an LDP export policy.
What FECs now appear in router R2's LIB?

• A.Any local FECs, except those with a 24 bit mask.
• B.Only system ID FECs may appear in the LIB.
• C.Local FECs, not including those in the 192.168.1.0/24 address space.
• D.Local FECs in the 192.168.1.0/24 address space
