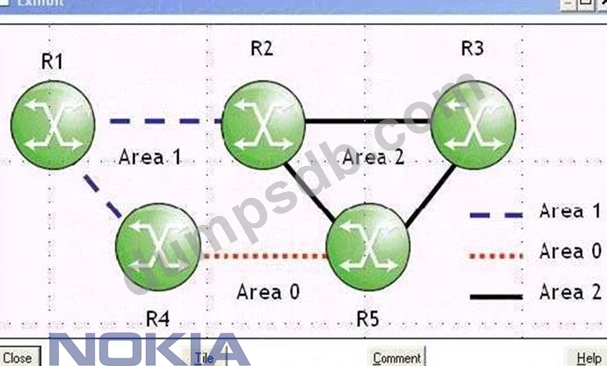

Click on the exhibit button below.

Assume the following:
- Each router's OSPF interfaces are in the areas shown.
- Bidirectional LDP-over-RSVP tunnels extend from routers R1 to R3 and back over the path R1-R4-R5-R3.
- You enable fast reroute facility bypass on the R5-R3 RSVP LSP.
- Router R5 acts as a PLR, protecting the R5-R3 link by building a bypass tunnel through router R2.
You build a layer 2 VPN on routers R1 and R3, using the LDP-over-RSVP tunnels.
What MPLS configuration step must you complete on router R2 for it to protect the end-to-end service?

• A.Configure LDP-over-RSVP support on router R2.
• B.Enable LDP on the R2-R5 interface.
• C.Enable MPLS and RSVP on the router R2 network interfaces.
• D.Enable LDP on the R2-R5 and R2-R3 interfaces.
• E.Configure T-LDP sessions between routers R2 and R5 and R3.

Comment: *

Name: *

Email: *

Verification: *

In an OSPF Hello packet what fields must match all neighbor routers on the segment? (Choose 3)

• A.Area ID
• B.Hello and Dead Intervals
• C.Stub flag
• D.DR and BDR addresses
• E.The list of neighbors

Comment: *

Name: *

Email: *

Verification: *

Which of the following about configuring a distributed E-pipe service is TRUE?

• A.The VC ID on the mesh SDP does not have to be explicitly configured and it will use the service id.
• B.The VC ID on the spoke SDP must be explicitly configured.
• C.The VC ID on the mesh SDP must be explicitly configured.
• D.The VC ID on the spoke SDP does not have to be explicitly configured and it will use the service id.

Comment: *

Name: *

Email: *

Verification: *

What must be configured on the Alcatel-Lucent 7750 SR for RIP to advertise locally attached links?

• A.A group and neighbor statement for each peer
• B.A policy statement within the router identifying what is to be advertised
• C.Default metrics for each link
• D.Access-lists denoting what is to be advertised

Comment: *

Name: *

Email: *

Verification: *

An OSPF router receives an update in which the sequence number, age, and checksum are the same as the entry already in the topological database.
What action does the router take?

• A.The link-state information is regarded as old and nothing is done.
• B.The link-state information already in the database is overwritten and the age is reset.
• C.A link-state request is performed to increase the sequence number.
• D.The link-state information is not populated in the database and an acknowledgement is sent.
• E.The link-state information is not populated in the database, but is forwarded to all neighbors.
