Refer to the exhibit. BGP is flapping after the CoPP policy is applied.
What are the two solutions to fix the issue? (Choose two.)

• A.Configure a higher value for CIR under the Class COPP-CRITICAL-7600.
• B.Configure a higher value for CIR under the default class to allow more packets during peak traffic.
• C.Configure BGP in the COPP-CRITICAL-7600 ACL.
• D.Configure IP CEF for CoPP policy and BGP to work.
• E.Configure a three-color policer instead of two-color policer under Class COPP-CRITICAL-7600.

Comment: *

Name: *

Email: *

Verification: *

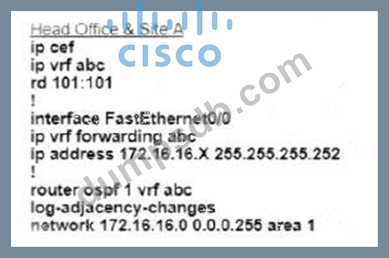

An engineer configured a company's multiple area OSPF head office router and Site A cisco routers with VRF lite. Each site router is connected to a PE router of an MPLS backbone.

After finishing both site router configurations, none of the LSA 3,4 5, and 7 are installed at Site A router.
Which configuration resolves this issue?

• A.configure capability vrf-lite on Head Office and its connected PE router under router ospf 1 vrf abc
• B.configure capability vrf-lite on Head Office and Site A routers under router ospf 1 vrf abc
• C.configure capability vrf-lite on both PE routers connected to Head Office and Site A routers under routtr ospf 1 vrf abc
• D.configure capability vrf-lite on Site A and its connected PE router under router ospf 1 vrf abc

Comment: *

Name: *

Email: *

Verification: *

What statement about route distinguishes in an MPLS network is true?

• A.Route distinguishes are used for label bindings
• B.Route distinguishes define which prefixes are imported and exported on the edge router
• C.Route distinguishes make a unique VPNv4 address across the MPLS network.
• D.Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

Comment: *

Name: *

Email: *

Verification: *

Refer the exhibit.

Which action resolves intermittent connectivity observed with the SNMP trap packets?

• A.Add a new class map to match TCP traffic
• B.Increase the CIR of the mgmt class map
• C.Add one new entry in the ACL 120 to permit the UDP port 161
• D.Decrease the committed burst Size of the mgmt class map

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit.

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available. How is this issue resolved?

• A.Use the same AD for both default routes
• B.Use the icmp-echo command to track both default routes
• C.Start IP SLA by matching numbers for track and ip sla commands
• D.Start IP SLA by defining frequency and scheduling it
