An engineer is troubleshooting an ongoing network outage. Which command should he use that can display the live log files for a process or service running on a network device?

• A.show run
• B.traceroute
• C.debug
• D.ping

Comment: *

Name: *

Email: *

Verification: *

Which flavor of MPLS Layer 3 VPN has MPLS enabled on PE-CE links?

• A.VPLS
• B.basic
• C.CSC
• D.AToM
• E.inter-AS

Comment: *

Name: *

Email: *

Verification: *

Which feature describes MP-BGP operation in a service provider backbone network?

• A.It requires a partial-mesh architecture to support EBGP sessions.
• B.It supports Layer 3 VPN address families.
• C.It requires a partial-mesh architecture to support IBGP sessions.
• D.It does not support VPNv6 address families.

Comment: *

Name: *

Email: *

Verification: *

An engineer noticed that PE3 is failing to accept IPv6 traffic information from PE1.
The engineer confirmed that both PE3 and PE1 routers are configured accurately with IPv6 protocol.
To eliminate IPv6 traffic loss issue, which action must the engineer take to solve the problem?

• A.Disable 6PVE that provides local IPv6 reachability over MPLS.
• B.Configure 6PE that provides global IPv6 reachability over IPv4 MPLS
• C.Allow PE routers use the MP-iBGP extensions in the IPv6 network configuration to exchange IPv6 reachability information.
• D.Configure 6PE forwarding between 6PE routers based on the IPv6 header.

Comment: *

Name: *

Email: *

Verification: *

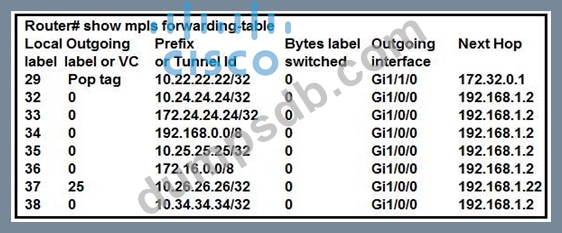

Refer to the exhibit.

Which statement about this output is true?

• A.The zero in the second column is the normal behavior of an egress router LSR.
• B.The router IP 192.168.1.2 sent an implicit null, and the output is from the penultimate LSR.
• C.The adjacent router is the egress LSR and has mpls ldp explicit-null configured.
• D.The adjacent LSR router configured mpls label range 0.
