While troubleshooting an AToM L2VPN service, a network consultant notices that the AC Layer 2 encapsulations are different. Which action should the consultant take in order to make the MPLS L2VPN work?

• A.interworking IP configuration on both the AC terminations on the PEs
• B.nonrouted interworking setup to properly translate only the Layer 2 information from the AC
• C.interworking IP configuration on the last PE router before label disposition
• D.tag-rewrite on the ingress and egress PE router

Comment: *

Name: *

Email: *

Verification: *

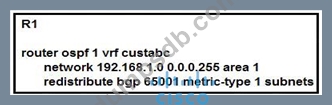

Refer to the exhibit.

Which statement describes the result of this configuration?

• A.R1 redistributes BGP routes into the OSPF process of VRF custabc as E2 routes.
• B.R1 redistributes BGP routes into the OSPF process of VRF custabc as E1 routes.
• C.R1 mutually redistributes routes between BGP 65001 and the OSPF process of VRF custabc.
• D.R1 redistributes BGP routes into the OSPF process of VRF custabc as OIA routes.

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. An engineer working for a service provider with an employee ID: 4985:13:314 is troubleshooting an ongoing network outage on an E-Line Services Network with L2VPN single- segment pseudowires. The verification confirmed that the Layer 2 configuration is correct and the physical connection between the devices is working normally. Which additional command sequence resolves the issue?

• A.configure
  router bgp 100
  address-family 12vpn mspw
  neighbor 10.10.10.1
  address-family 12vpn mspw
• B.router bgp 100
  address-family 12vpn evpn
  neighbor 10.10.10.1
  address-family 12vpn evpn
• C.12vpn
  xconnect group CISCO
  p2p SS-PW
  interface GigabitEthernet0/1/0/2
  neighbor 10.10.10.1 pw-id 100
• D.configure
  12vpn
  pw-class 12tpv3
  interface GigabitEthernet0/1/0/4
  12transport

Comment: *

Name: *

Email: *

Verification: *

You try to configure MPLS VPN VRF Selection based on a source IP address on an interface that has VRF configured, but you receive an error.
Which action must you take to correct the problem?

• A.Remove the VRF from the interface.
• B.Configure static routes for the VRF.
• C.Add the IP address to the VRF table.
• D.Change the source IP address.

Comment: *

Name: *

Email: *

Verification: *

Which action must an engineer take when configuring SR-TE using OSPF?

• A.Enable segment routing under the OSPF routing process.
• B.Implement PIM-SM to share routing updates throughout the OSPF network.
• C.Establish direct neighbor relationships between all OSPF devices in the network.
• D.Configure all OSPF links as point-to-multipoint.
