An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

• A.shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2
• B.shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2
• C.shell=Security_Domain_1/Read_Role_1|Read_Role_2
• D.shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Comment: *

Name: *

Email: *

Verification: *

An engineer attempts to register Cisco UCS Manager to Cisco UCS Central, but the registration fails. The engineer can ping Cisco UCS Central from UCS Manager. Which two actions must the engineer attempt to resolve the problem? (Choose two.)

• A.Synchronize the date and time to NTP for Cisco UCS Central and the Cisco UCS domains.
• B.Apply the UCS Central license to UCS Central.
• C.Place Cisco UCS Manager on the same subnet as Cisco UCS Central.
• D.Allow port 443 between Cisco UCS Manager and Cisco UCS Central.
• E.Allow port 9443 between Cisco UCS Manager and Cisco UCS Central.

Comment: *

Name: *

Email: *

Verification: *

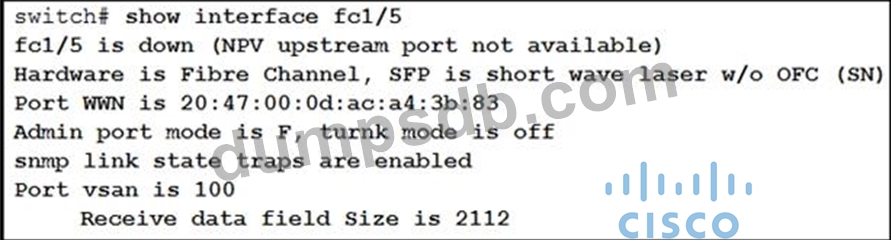

Refer to the exhibit.

Interface fc1/5 is offline. Which action should be taken to troubleshoot the issue?

• A.Update the FCNs database to contain names for VSAN 100.
• B.Activate the correct zoneset for VSAN 100.
• C.Configure the upstream ports and the server ports to be in VSAN 100.
• D.Update the FLOGI database to contain the FLOGI entries for interface fc1/5 in VSAN 100.

Comment: *

Name: *

Email: *

Verification: *

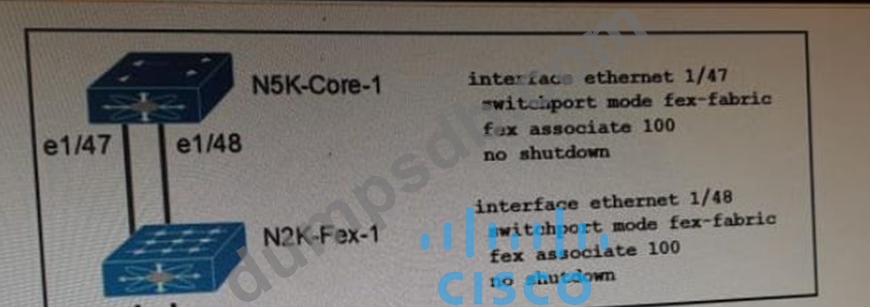

Refer to the exhibit.

An engineer must connect N2K-Fex-1 and N5K-Core-1 so that the traffic flow between the two devices uses load balancing. After inspecting the statistics of the interconnecting interfaces, the engineer concludes that only one link is used. Which action resolves the problem?

• A.Configure source-destination load balancing on N5K-Core-1.
• B.Configure each uplink to be a member of a separate LACP port channel.
• C.Configure the pinning max-link as 2.
• D.Configure destination-mac load balancing on N5K-Core-1

Correct Answer: C

Explanation

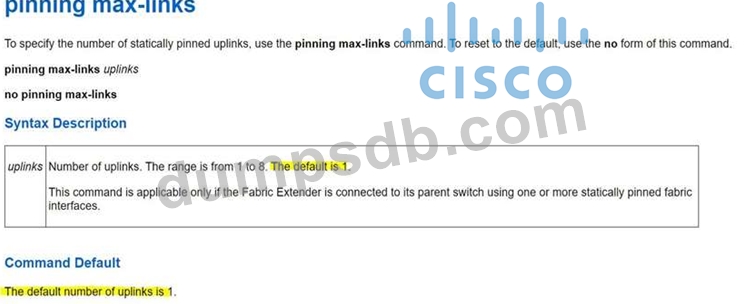

https://www.cisco.com/c/m/en_us/techdoc/dc/reference/cli/n5k/commands/pinning-max-links.html

Comment: *

Name: *

Email: *

Verification: *

Refer to the exhibit. An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

• A.The interface is working correctly and fully operational, but it is not in use.
• B.The interface policy is misconfigured.
• C."out-of-service" is the default interface status in ACI.
• D."out-of-service" indicates that no service graph is in use for this interface.
