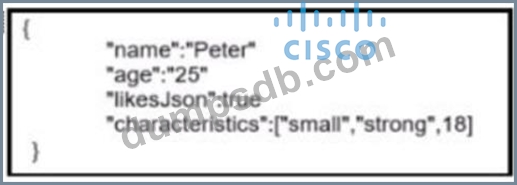

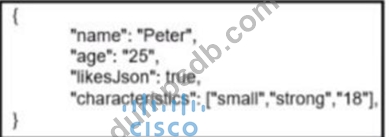

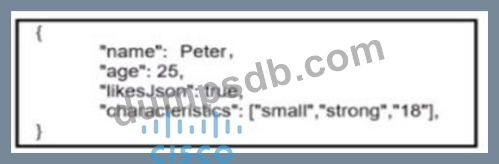

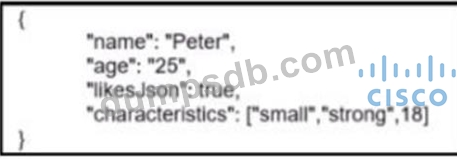

Which data is properly formatted with JSON?
A)

B)

C)

D)

• A.Option B
• B.Option C
• C.Option A
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

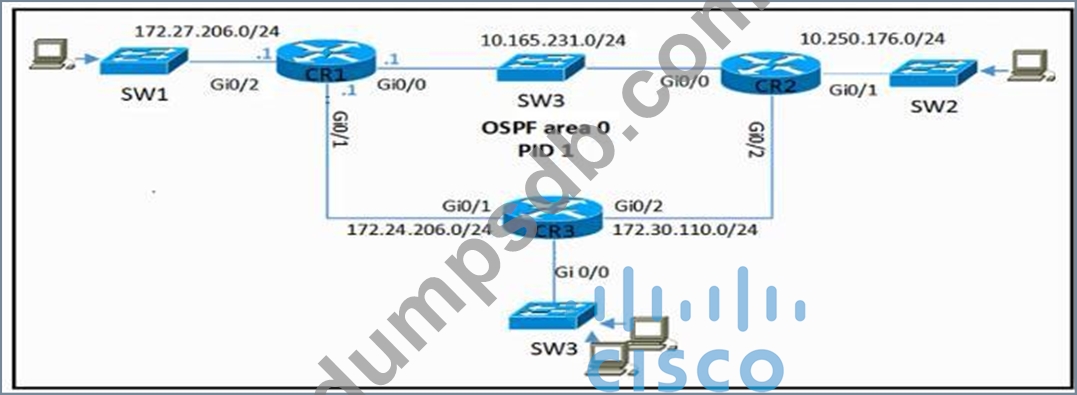

Refer to the exhibit.

CR2 and CR3 ate configured with OSPF. Which configuration, when applied to CR1. allows CR1 to exchange OSPF Information with CR2 and CR3 but not with other network devices or on new Interfaces that are added to CR1?
A)

B)

C)

D)

• A.Option B
• B.Option A
• C.Option C
• D.Option D

Comment: *

Name: *

Email: *

Verification: *

Which benefit is realized by implementing SSO?

• A.physical link redundancy
• B.communication between different nodes for cluster setup
• C.minimal network downtime following an RP switchover
• D.IP first-hop redundancy

Comment: *

Name: *

Email: *

Verification: *

An engineer configures HSRP group 37. The configuration does not modify the default virtual MAC address.
Which virtual MAC address does the group use?

• A.00:00:0c:07:ac:37
• B.C0:39:83:25:258:5
• C.00:00:0c:07:ac:25
• D.C0.00:00:25:00:00

Comment: *

Name: *

Email: *

Verification: *

What Is the difference between the MAC address table and TCAM?

• A.The MAC address table supports partial matches. TCAM requires an exact match.
• B.The MAC address table is contained in TCAM ACL and QoS information is stored in CAM.
• C.Router prefix lookups happen in TCAM. MAC address table lookups happen In CAM.
• D.TCAM is used to make L2 forwarding decisions. CAM is used to build routing tables
